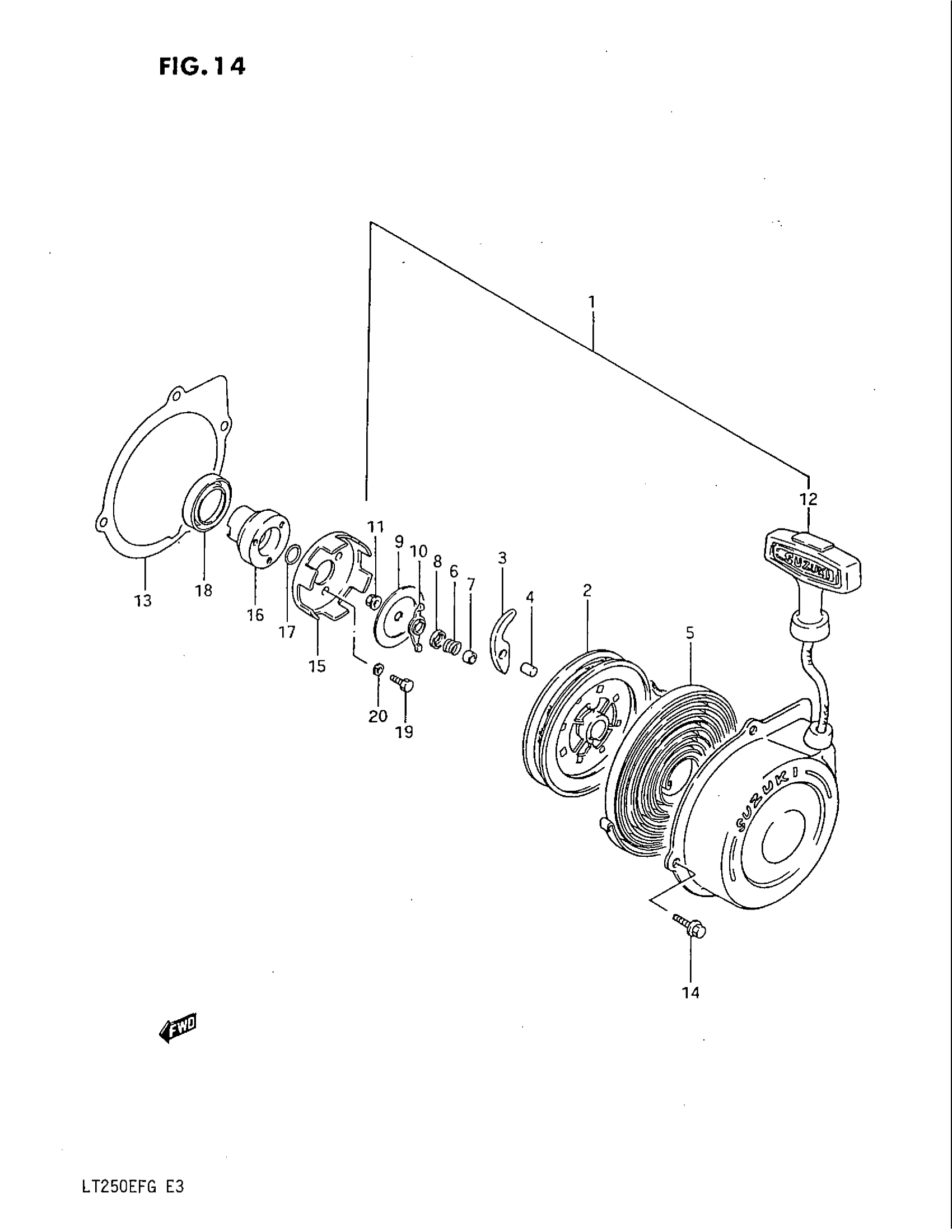

Suzuki LT250EF (1986) RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY,RECOIL | Includes Item(s) 2 - 12 This part replaces 18100-24501.

18100-24503

$225.42

2

REEL

18120-24500

$47.40

3

RATCHET

18131-24411

$8.12

4

PIN, RATCHET

18344-24400

Unavailable

5

.SPRING,SPIRAL

18142-24400

$29.60

6

SPRING, FRICTION

18153-24400

Unavailable

7

SHAFT, SUB

18176-24400

Unavailable

8

COVER, SPRING

18275-24400

Unavailable

9

RATCHET SET This part replaces 18151-24400.

18130-24400

$16.96

10

..GUIDE,RATCHET

18132-24400

$2.92

11

NUT This part replaces 18334-24400.

08316-1006B

$2.50

12

ROPE ASSY

18200-24501

$38.13

13

GASKET

18299-24501

$5.48

14

BOLT, EXHAUST DRAIN This part replaces 01547-06125.

01547-06127

$1.65

15

NO DESCRIPTION AVAILABLE This part replaces 18411-24501.

18411-41B00

Unavailable

16

PIECE

18151-24502

Unavailable

17

O RING, OIL GALLERY This part replaces 09280-12010.

09280-12012

$4.64

18

OIL SEAL

09283-48010

Unavailable

19

BOLT This part replaces 01107-06108.

01500-06107

$2.06

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
