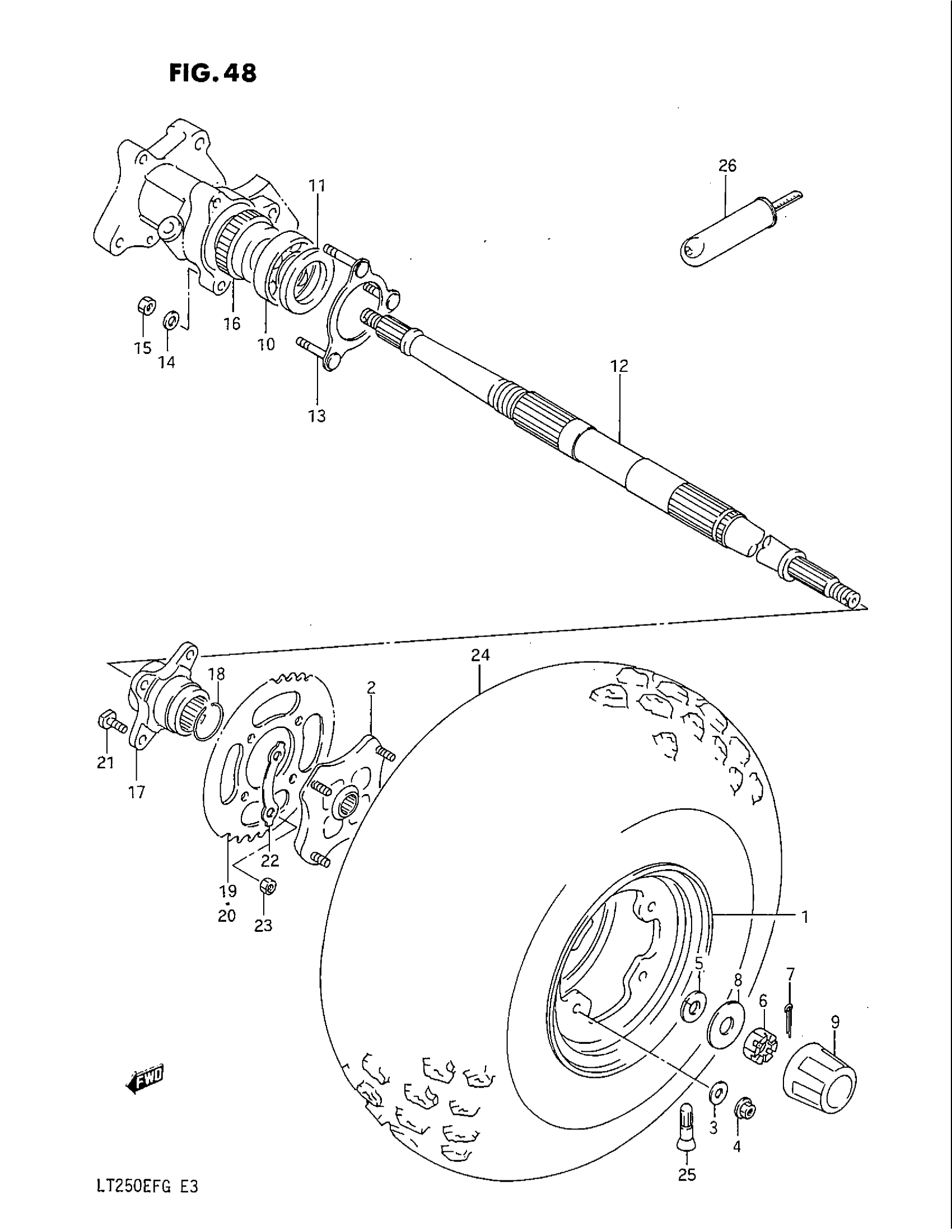

Suzuki LT250EF (1986) REAR WHEEL (LEFT) Diagram

#

Description
Price

1

RIM, REAR WHEEL (SILVER) | MODEL F This part replaces 65310-24510-13T.

65310-24510-13L

Unavailable

1

RIM, REAR WHEEL (SILVER) | MODEL G This part replaces 65310-24510-19T.

65310-24510-13L

Unavailable

2

HUB, REAR This part replaces 64110-24402.

64110-24403

Unavailable

3

WASHER, KNUCKLE END This part replaces 08322-21106.

08322-0110A

$1.84

4

NUT This part replaces 08316-16106.

08316-1010B

$2.66

5

WASHER

09160-18015

$7.63

6

NUT, HUB This part replaces 09141-18004.

09141-18008

$8.37

7

PIN, COTTER This part replaces 04111-40356.

04111-4040A

$1.49

8

HOLDER, CENTER CAP | MODEL F This part replaces 64726-24500.

64726-19B00

$3.31

8

HOLDER, CENTER CAP | MODEL G This part replaces 64726-18A00.

64726-19B00

$3.31

9

CAP | MODEL F This part replaces 54725-24500.

54725-18A00

$10.28

9

CAP | MODEL G

54725-18A00

$10.28

10

BEARING, LH

08123-62087

Unavailable

11

DUST SEAL, LH

09283-50004

Unavailable

12

AXLE, REAR

64711-24502

Unavailable

13

PLATE

64770-24502

Unavailable

14

WASHER This part replaces 08322-11108.

08322-01107

$2.15

15

NUT, REAR This part replaces 08319-21106.

08319-2110A

$2.28

16

GEAR, SPEEDOMETER (NT:37)

54611-24500

Unavailable

17

FLANGE

64611-24502

Unavailable

18

STOP RING

09380-36004

Unavailable

19

SPROCKET, REAR (NT:38) | MODEL F

64511-24501

Unavailable

19

SPROCKET, REAR (NT:41) | MODEL G

64511-24510

Unavailable

20

SPROCKET, REAR (NT:41) | OPT

64511-24510

Unavailable

20

SPROCKET, REAR (NT:40) | OPT

64511-24520

Unavailable

21

BOLT

09119-10031

$7.30

22

WASHER

09169-10014

Unavailable

23

NUT This part replaces 08310-11108.

08310-00107

$2.19

24

TIRE, T/L REAR (25X12.00-9) | DUNLOP

65100-24555

Unavailable

25

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

26

GAUGE ASSY,AIR PRESSUR | MODEL G This part replaces 96200-18A00.

96200-18A02

$58.92
