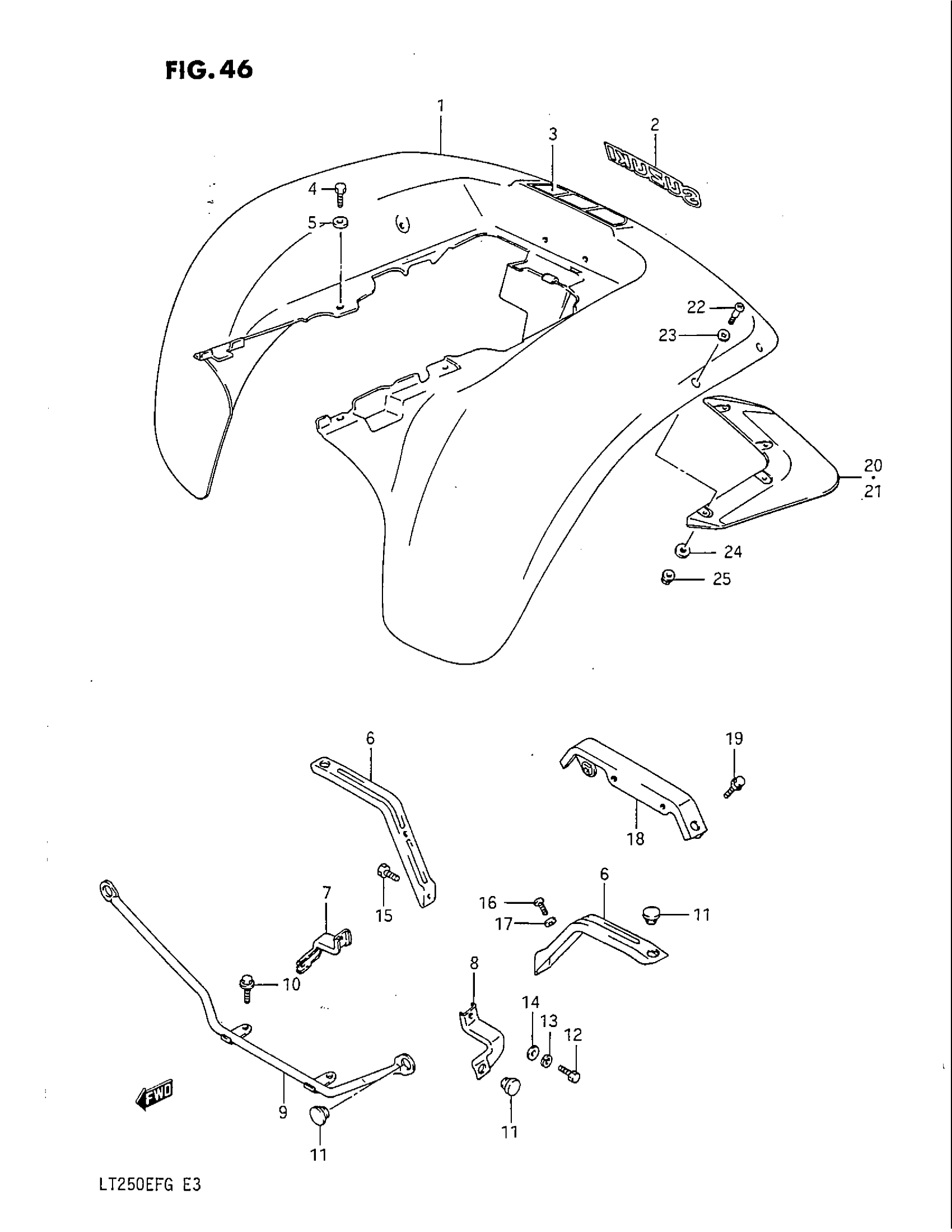

Suzuki LT250EF (1986) REAR FENDER (MODEL G) Diagram

#

Description
Price

1

FENDER, REAR (WINNING ORANGE)

63111-24501-25G

Unavailable

2

EMBLEM

68111-04400-7ZP

Unavailable

3

TAPE SET, REAR FENDER

68170-24500-7ZH

Unavailable

4

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

5

WASHER This part replaces 09160-06007.

09160-06084

$1.78

6

REINFORCEMENT, REAR

63121-24501

Unavailable

7

REINFORCEMENT, RH

63141-24501

Unavailable

8

REINFORCEMENT, LH

63151-24501

Unavailable

9

REINFORCEMENT, FRONT

63170-24500

Unavailable

10

BOLT (8X12) This part replaces 01517-08126.

01550-0812A

$2.32

11

CAP (OD:20) This part replaces 09250-12006.

09250-12016

$1.92

12

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

13

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

14

WASHER

09160-06019

$1.49

15

BOLT (8X12) This part replaces 01517-08126.

01550-0812A

$2.32

16

SCREW

02142-06167

$1.49

17

WASHER

09160-06052

$1.49

18

BRACKET

63161-24500

Unavailable

19

BOLT, CLAMP This part replaces 01517-06126.

01550-0612A

$1.97

20

MUD GUARD, RH

63331-24510

Unavailable

21

MUD GUARD, LH

63341-24510

Unavailable

22

SCREW

09139-05037

$2.06

23

WASHER (6.5X18X1.6) This part replaces 09160-07011.

09160-06109

$1.49

24

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.92

25

NUT This part replaces 08319-31056.

08319-3105B

$3.55
