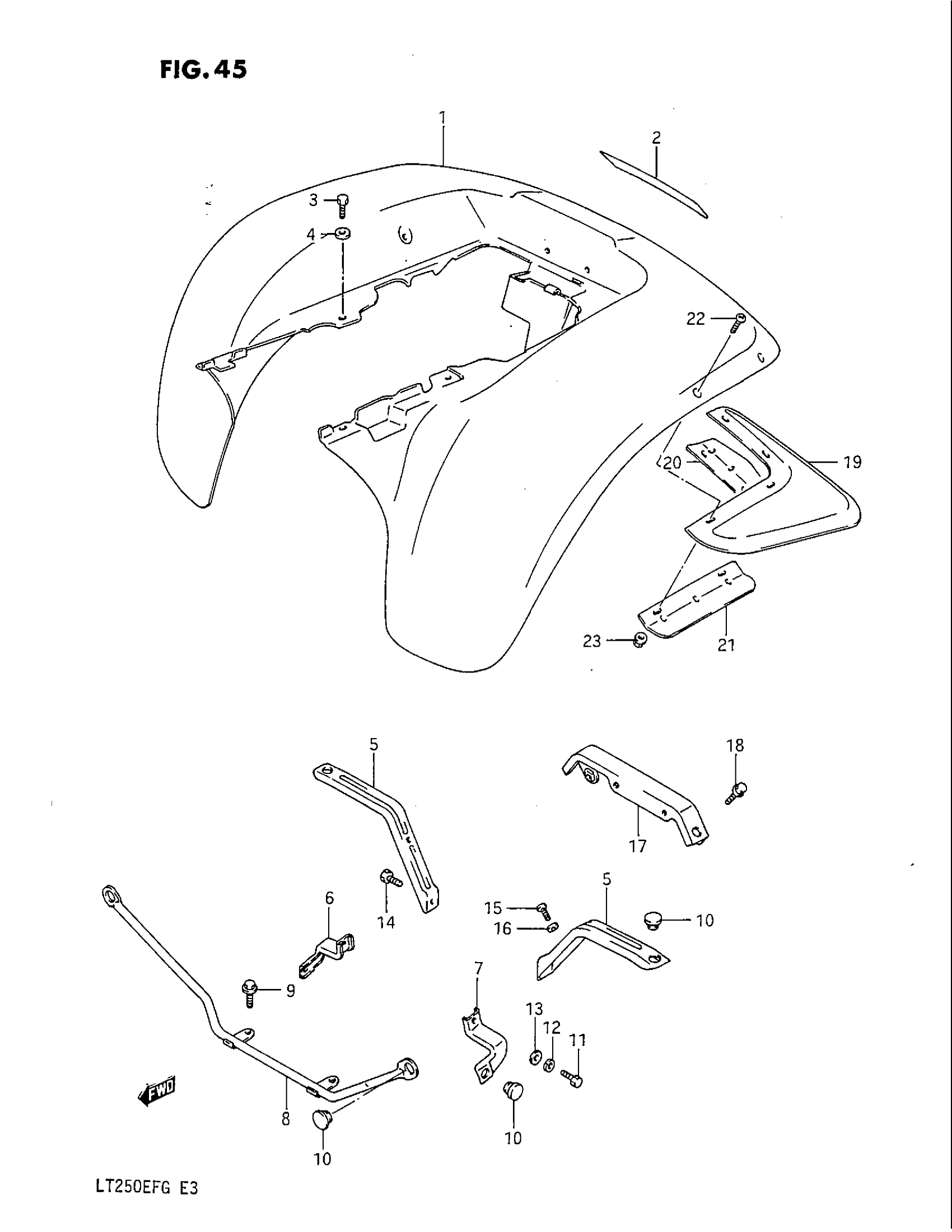

Suzuki LT250EF (1986) REAR FENDER (MODEL F) Diagram

#

Description
Price

1

FENDER, REAR (WINNING ORANGE) This part replaces 63111-24501-00N.

63111-24501-25G

Unavailable

2

EMBLEM

68111-24500-94A

Unavailable

3

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

4

WASHER This part replaces 09160-06007.

09160-06084

$1.78

5

REINFORCEMENT, REAR

63121-24501

Unavailable

6

REINFORCEMENT, RH

63141-24501

Unavailable

7

REINFORCEMENT, LH

63151-24501

Unavailable

8

REINFORCEMENT, FRONT

63170-24500

Unavailable

9

BOLT (8X12) This part replaces 01517-08126.

01550-0812A

$2.32

10

CAP (OD:20) This part replaces 09250-12006.

09250-12016

$1.92

11

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

12

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

13

WASHER

09160-06019

$1.49

14

BOLT (8X12) This part replaces 01517-08126.

01550-0812A

$2.32

15

SCREW

02142-06167

$1.49

16

WASHER

09160-06052

$1.49

17

BRACKET

63161-24500

Unavailable

18

BOLT, CLAMP This part replaces 01517-06126.

01550-0612A

$1.97

19

MUD GUARD

63331-24501

Unavailable

20

PLATE, REAR

63332-24501

Unavailable

21

PLATE, SIDE

63333-24501

Unavailable

22

SCREW

02142-06207

$1.49

23

NUT This part replaces 08319-31066.

08319-31067

$2.03
