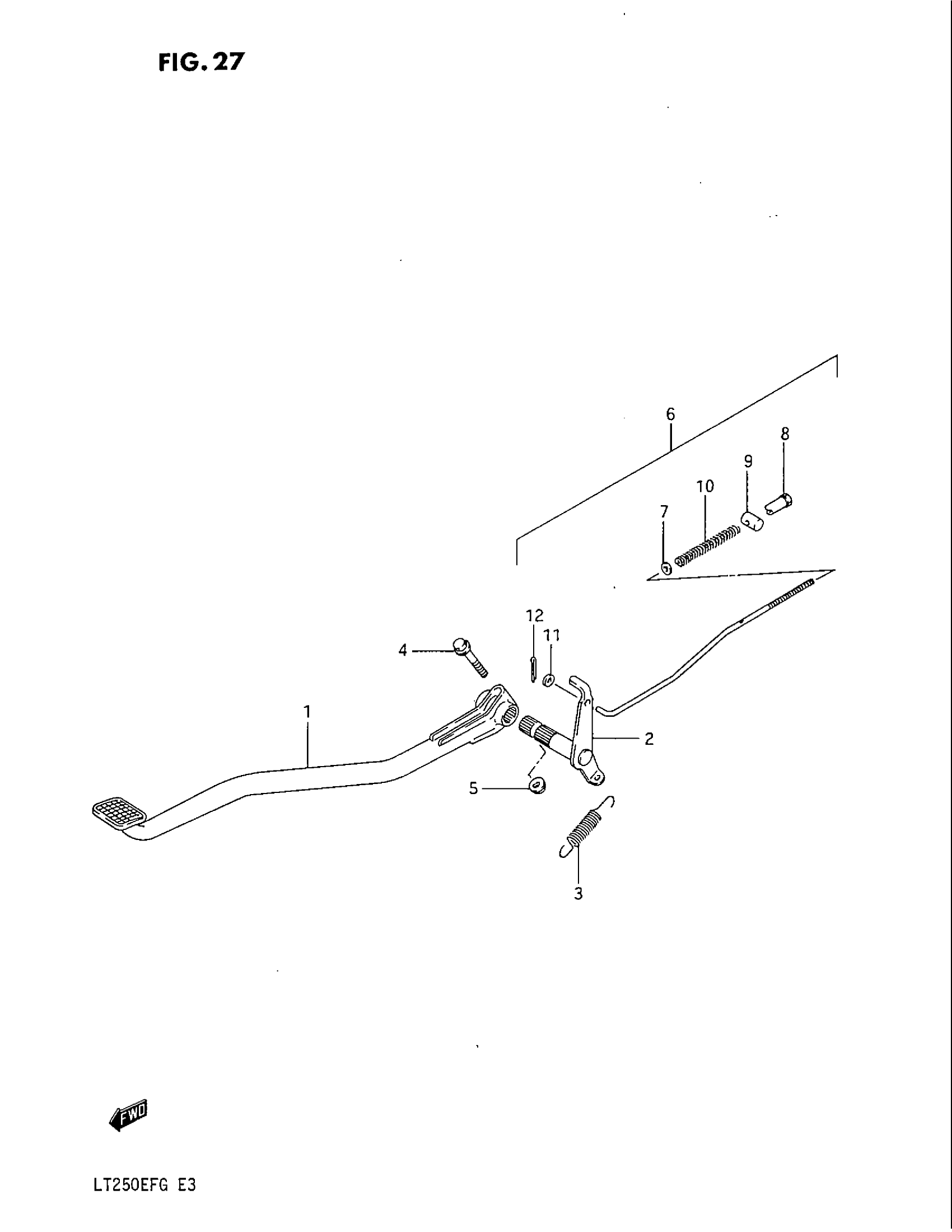

Suzuki LT250EF (1986) REAR BRAKE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 43110-24500.

43110-24501

Unavailable

2

ARM, BRAKE PEDAL

43120-24500

Unavailable

3

SPRING

09443-15017

Unavailable

4

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

5

NUT This part replaces 08319-31088.

08319-3108A

$2.32

6

NO DESCRIPTION AVAILABLE | Includes Item(s) 7 - 12 This part replaces 43300-24502.

43300-24X50

Unavailable

7

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

8

NUT | MODEL F This part replaces 09150-06008.

09150-06012

$3.37

8

NUT | MODEL G

09150-06012

$3.37

9

PIN

09209-13006

$5.24

10

.SPRING This part replaces 09440-09013.

09440-09004

$2.20

11

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

$1.84

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
