1986 Suzuki LT250EF OIL Pump - Fuel Pump Diagram

← All diagrams

Find the part on the OIL Pump - Fuel Pump diagram for your 1986 Suzuki LT250EF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

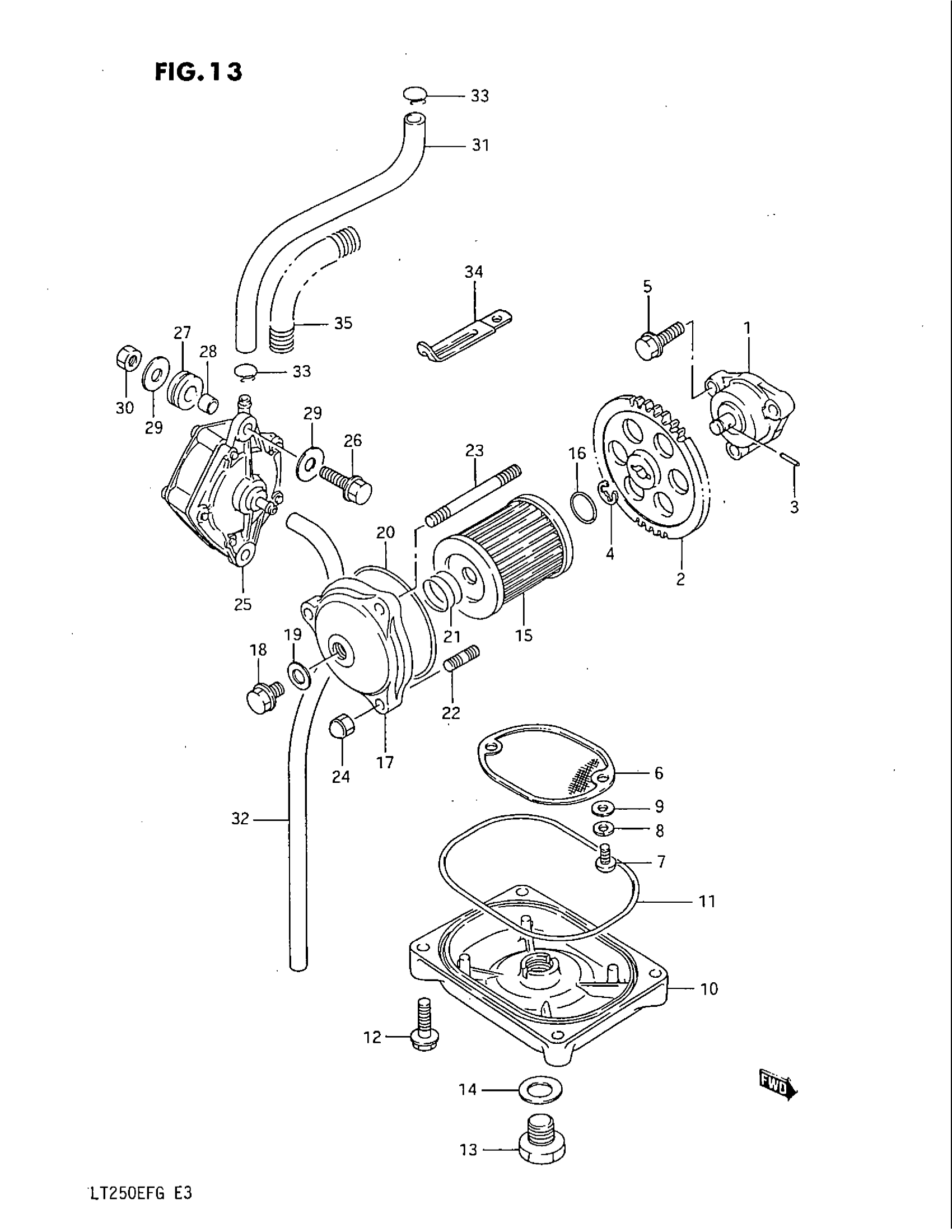

1986 Suzuki LT250EF OIL Pump - Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$176.20

In stock

2

GEAR, DRIVEN (NT:38)

16331-24500

1
Out of stock

3

PIN

09261-02008

1

$1.77

In stock

4

CIRCLIP This part replaces 08332-11068.

08332-1106A

1
Out of stock

5

BOLT This part replaces 01547-06258.

01547-06257

3
Out of stock

6

STRAINER,ENGINE OIL This part replaces 16520-24500.

16520-27H00

1
Out of stock

7

2

$1.55

In stock

8

LOCK WASHER This part replaces 08321-21056.

08321-0105A

2
Out of stock

9

2

$1.97

In stock

10

CAP

16523-24501

1
Out of stock

11

O RING

16528-24500

1
Out of stock

12

BOLT This part replaces 01547-06258.

01547-06257

4
Out of stock

13

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

1
Out of stock

14

GASKET

09168-14004

1
Out of stock

16

O RING

09280-13004

1
Out of stock

17

1

$26.24

In stock

18

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

1
Out of stock

19

GASKET

09168-08015

1

$2.92

In stock

20

O RING

09280-54001

1
Out of stock

21

SPRING

09440-18002

1
Out of stock

22

2

$2.05

In stock

23

1

$4.62

In stock

24

3

$1.97

In stock

25

PUMP ASSY,FUEL This part replaces 15100-18900.

15100-19B11

1
Out of stock

26

BOLT This part replaces 01517-06256.

01550-0625A

2
Out of stock

27

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

28

SPACER

09180-06038

2
Out of stock

29

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

4
Out of stock

30

NUT This part replaces 09159-06017.

08319-31067

2
Out of stock

31

HOSE(6X10X600) This part replaces 09343-06024.

09352-60104-600

1
Out of stock

32

1

$34.43

In stock

33

CLIP

09401-10401

2
Out of stock

34

CLAMP(L:80) This part replaces 09404-06418.

09404-06036

1
Out of stock

35

SPRING

09440-13012

1
Out of stock
