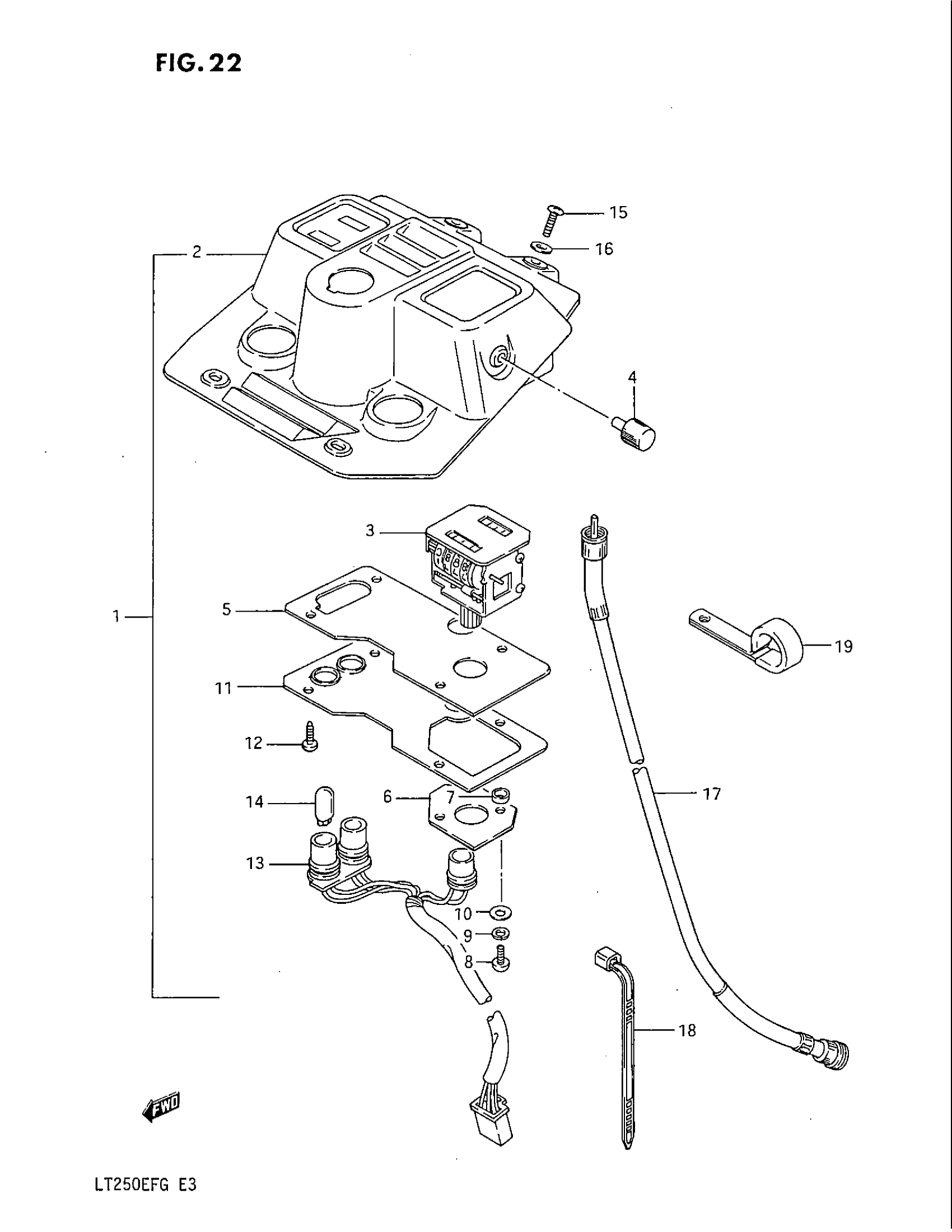

Suzuki LT250EF (1986) ODOMETER Diagram

#

Description
Price

1

ODOMETER ASSY | Includes Item(s) 2 - 14

34720-24510

Unavailable

2

HOOD, ODOMETER

34722-24500

Unavailable

3

ODOMETER (MILE)

34721-24510

Unavailable

4

KNOB

34124-24500

Unavailable

5

CUSHION

34726-24500

Unavailable

6

PLATE, ODOMETER

34724-24500

Unavailable

7

SPACER

34187-24500

Unavailable

8

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

9

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

10

WASHER This part replaces 08322-21038.

08322-01037

$1.93

11

PLATE, ODOMETER CASE

34723-24500

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 36456-34510.

09132-03501

Unavailable

13

SOCKET

34170-24500

Unavailable

14

BULB (12V,3.4W)

09471-12082

Unavailable

15

SCREW This part replaces 02142-04165.

02142-0416A

$2.27

16

WASHER (4.5X16X1.2) This part replaces 09160-04014.

09160-04026

$2.05

17

CABLE ASSY,ODOM This part replaces 34910-24500.

34910-24501

Unavailable

18

CLAMP

09407-18402

$2.19

19

CLAMP

34938-24500

Unavailable
