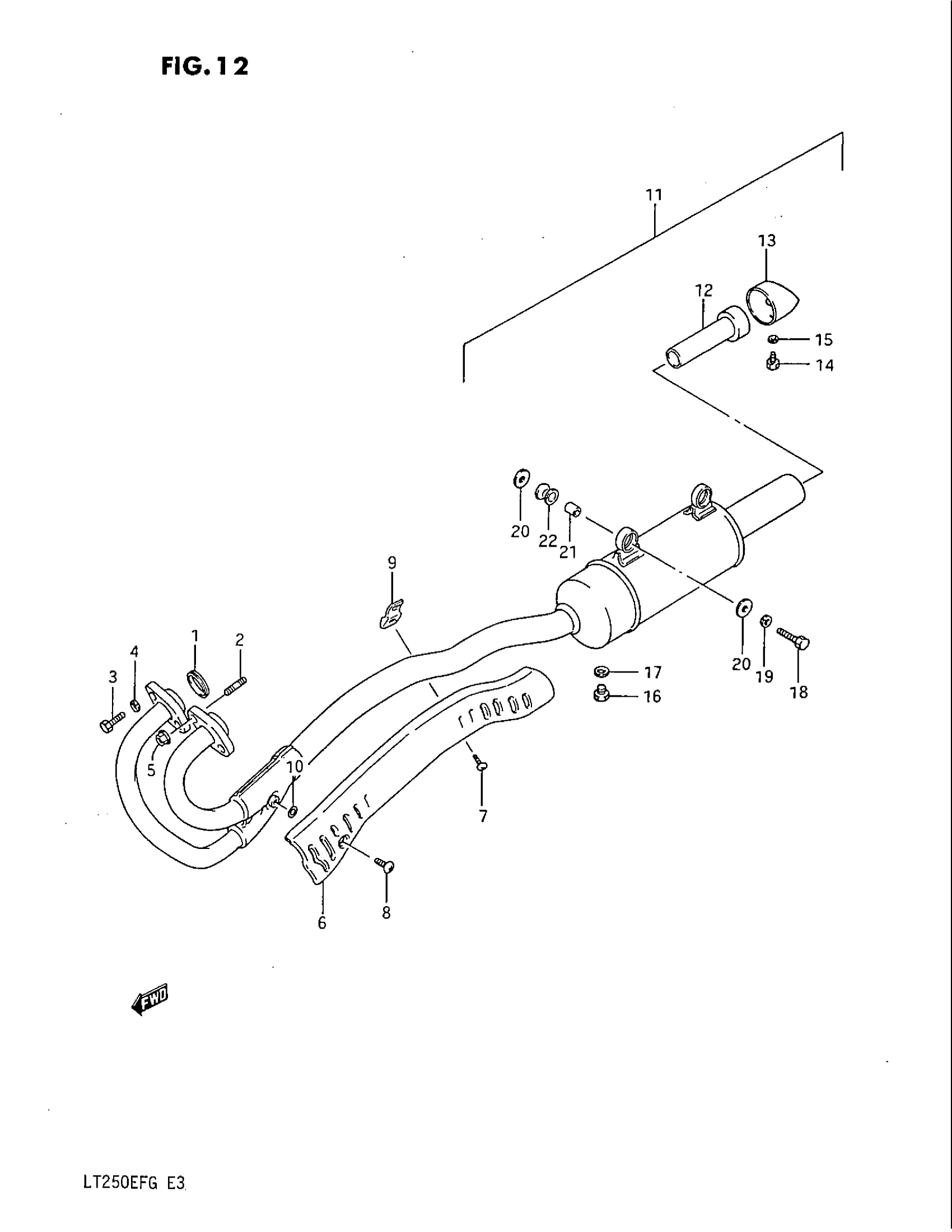

Suzuki LT250EF (1986) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE This part replaces 14181-03310.

14181-37D00

$4.56

2

STUD BOLT This part replaces 01421-08208.

01421-0820A

$1.91

3

BOLT This part replaces 01107-08258.

01500-08257

$2.50

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

NUT This part replaces 08310-12088.

08310-00087

$2.13

6

COVER

14180-24500

Unavailable

7

SCREW This part replaces 02112-05165.

02112-05164

$2.63

8

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.49

9

CLAMP This part replaces 14785-43400.

14785-15500

Unavailable

10

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12

11

MUFFLER ASSY | Includes Item(s) 12 - 17

14301-24504-H01

Unavailable

12

TUBE, CLEAN OUT

14850-24500

Unavailable

13

CUTTER, MUFFLER TAIL

14642-24500

Unavailable

14

BOLT This part replaces 01107-06104.

01500-0610B

$1.81

15

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

16

PLUG

09247-12103

$2.84

17

GASKET

09168-12002

$1.59

18

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

21

SPACER This part replaces 09180-08102.

09180-08194

$3.05

22

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

$7.98
