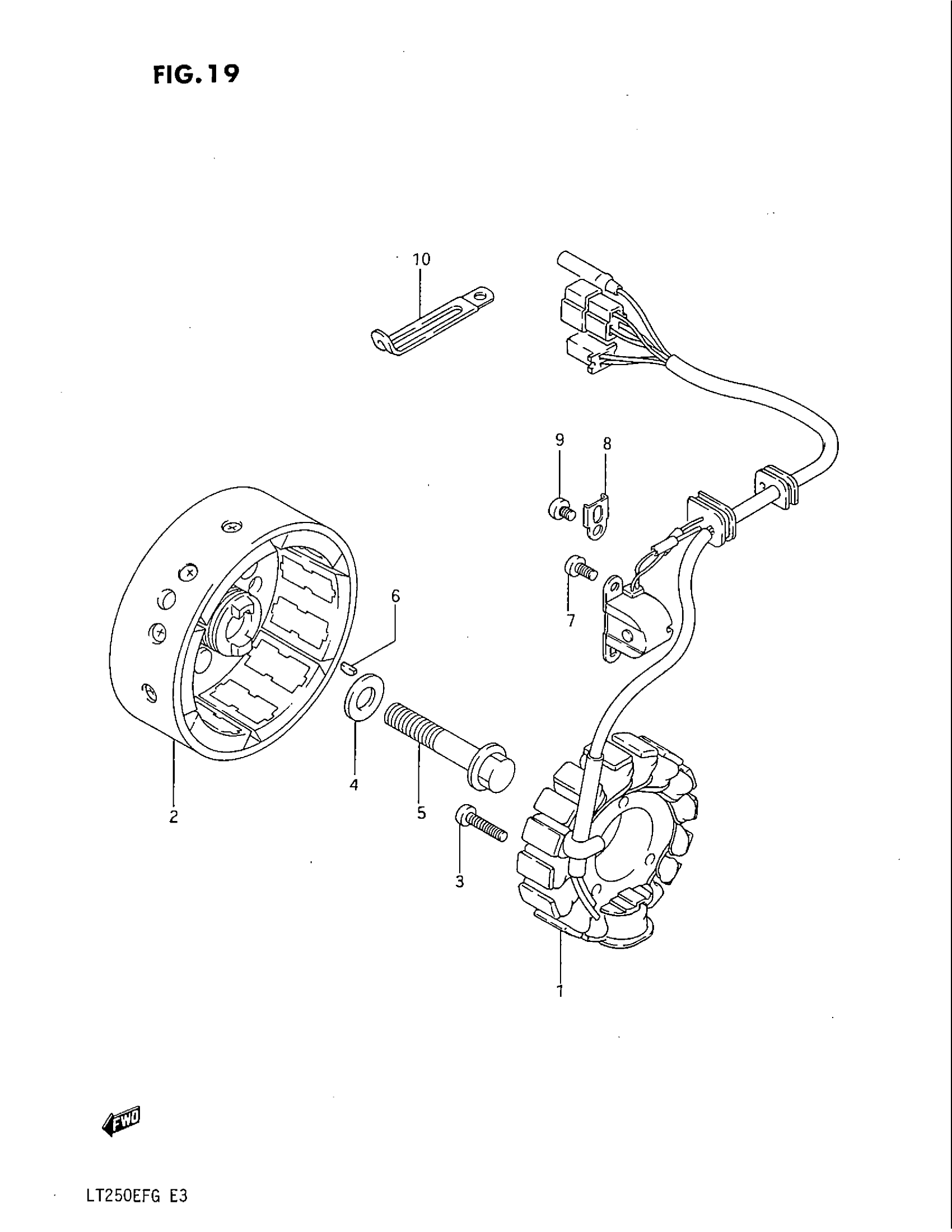

Suzuki LT250EF (1986) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | MODEL F This part replaces 32101-24510.

32101-24512

Unavailable

1

STATOR ASSY | MODEL G This part replaces 32101-24511.

32101-24512

Unavailable

2

ROTOR | MODEL F This part replaces 32102-24510.

32102-24511

Unavailable

2

ROTOR | MODEL G

32102-24511

Unavailable

3

SCREW This part replaces 02112-06308.

02112-06307

$1.97

4

WASHER This part replaces 08322-21128.

08322-01127

$1.84

5

BOLT

09103-12012

Unavailable

6

KEY

08341-31039

$1.89

7

SCREW This part replaces 02112-05108.

02112-05107

$1.49

8

CLAMP, MAGNETO LEAD WIRE

31497-45000

$1.92

9

SCREW This part replaces 02142-05067.

09125-05117

$2.72

10

CLAMP This part replaces 09404-06402.

09404-06039

$1.74
