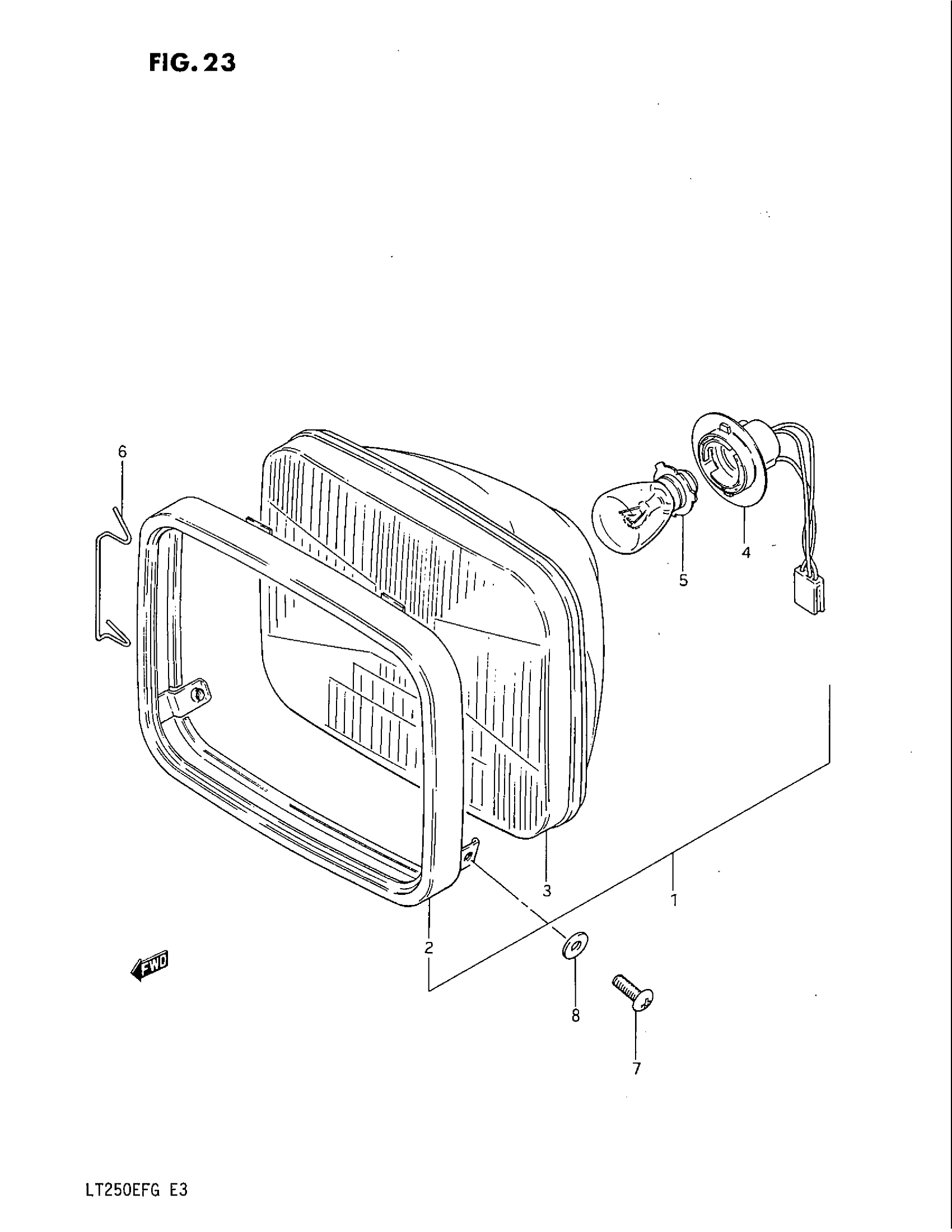

Suzuki LT250EF (1986) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 6

35100-24500

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 35111-08450.

35111-08460

Unavailable

3

UNIT

35121-24500

Unavailable

4

SOCKET This part replaces 35171-08450.

35171-36X50

$18.43

5

BULB (12V45/45W)

09471-12080

$6.58

6

SPRING, SUPPORT

35128-22020

Unavailable

7

SCREW This part replaces 02112-05125.

02112-0512A

$1.49

8

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84
