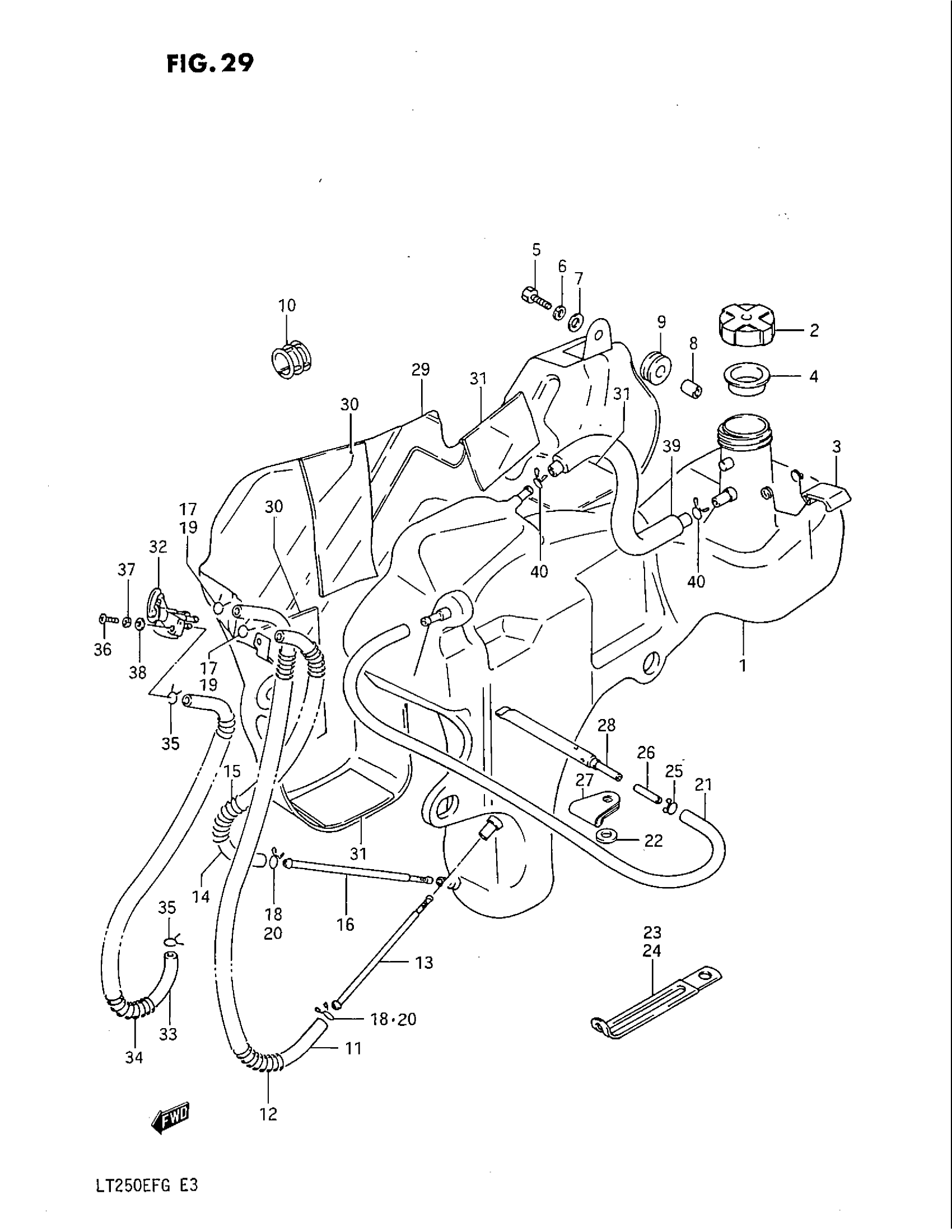

Suzuki LT250EF (1986) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44111-24501.

44111-24502

Unavailable

2

CAP, FUEL TANK

44211-24400

Unavailable

3

SPRING This part replaces 44240-24401.

44240-18B00

Unavailable

4

GASKET This part replaces 44248-40400.

44248-05211

$3.76

5

BOLT This part replaces 01107-08306.

01500-0830B

$3.16

6

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

7

WASHER This part replaces 08322-21086.

08322-0108A

$1.92

8

SPACER This part replaces 09180-08120.

09180-08209

$3.04

9

CUSHION

09320-12016

$2.11

10

CUSHION

44542-49200

Unavailable

11

HOSE(5X8.2X600) | MODEL F This part replaces 09343-05096.

09359-50824-600

$7.98

11

HOSE, CANISTER & PURGE | MODEL G This part replaces 09343-05369.

09359-54111-600

$25.80

12

SPRING | MODEL F

09440-10009

$5.47

12

SPRING | MODEL G This part replaces 09440-13018.

09440-13043

$6.04

13

FILTER, FUEL, "ON"

44323-24400

Unavailable

14

HOSE(5X8.2X600) | MODEL F This part replaces 09343-05096.

09359-50824-600

$7.98

14

HOSE, CANISTER & PURGE | MODEL G This part replaces 09343-05370.

09359-54111-600

$25.80

15

SPRING | MODEL F

09440-10012

Unavailable

15

SPRING | MODEL G

09440-13012

Unavailable

16

FILTER, FUEL, "RES"

44322-27300

Unavailable

17

CLIP, UPPER | MODEL F

09401-10402

$2.42

18

CLIP, LOWER | MODEL F

09401-08402

$1.49

19

CLIP, UPPER | MODEL G

09401-12404

$2.34

20

CLIP (ID:10.5,H:8) | MODEL G

09401-10409

$2.26

21

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

22

WASHER This part replaces 09160-06006.

09160-06084

$1.78

23

CLAMP This part replaces 09404-06413.

09404-06039

$1.74

24

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

25

CLIP

09401-08401

$1.54

26

PIN | MODEL F

09205-06007

$2.24

27

CLAMP

09403-09402

Unavailable

28

HOSE, BREATHER END

44440-24500

Unavailable

29

GUARD, FUEL TANK

44570-24501

Unavailable

30

CUSHION

44576-24300

Unavailable

31

CUSHION

44577-24300

Unavailable

32

COCK ASSY,FUEL This part replaces 44300-24471.

44300-17271

Unavailable

33

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

34

SPRING

09440-10020

Unavailable

35

CLIP

09401-08402

$1.49

36

SCREW This part replaces 02112-05208.

02112-05207

$1.97

37

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

38

WASHER This part replaces 08322-21058.

08322-01057

$2.13

39

HOSE, AIR VENT

09343-07139

Unavailable

40

CLIP

09401-10402

$2.42
