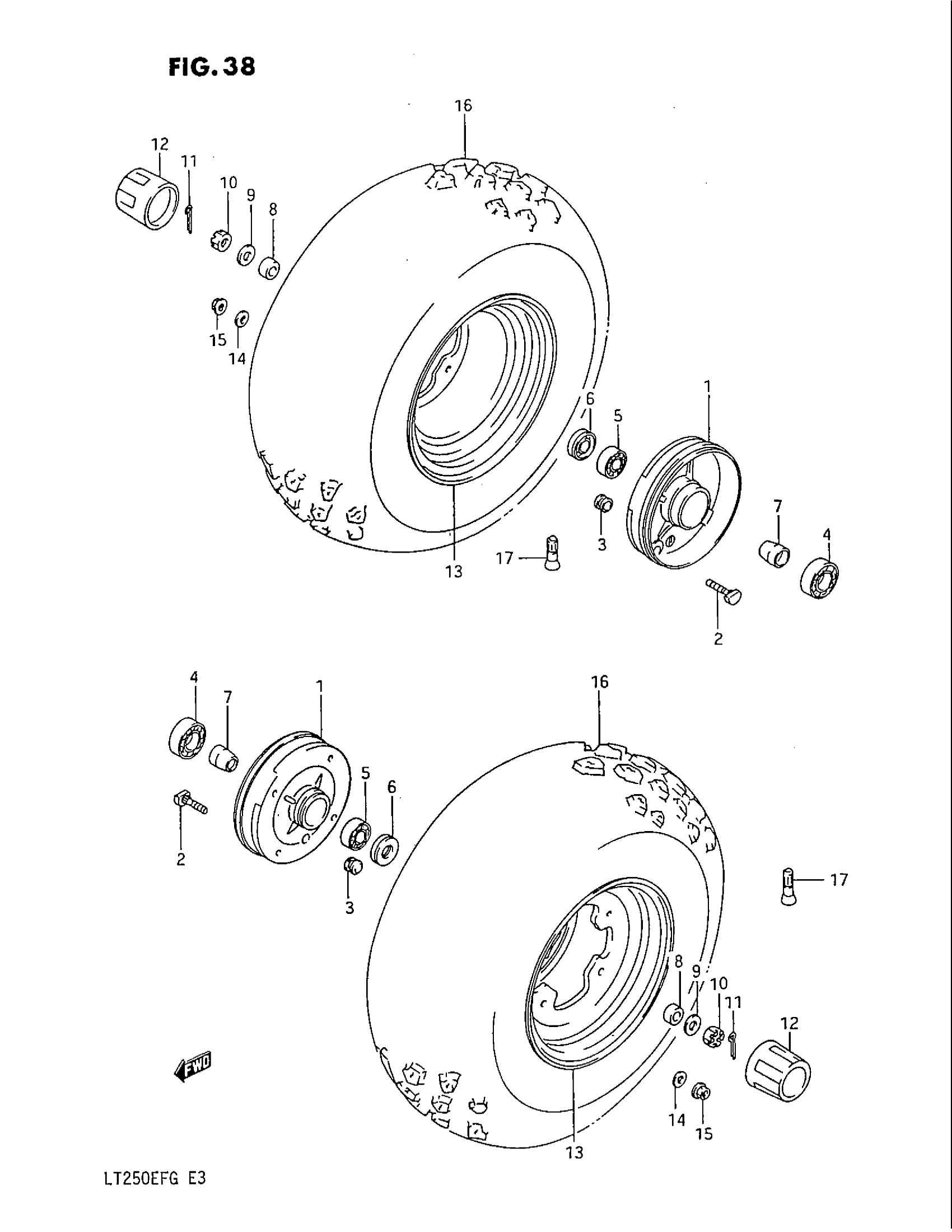

Suzuki LT250EF (1986) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT | MODEL F This part replaces 54110-24503.

54110-24505

Unavailable

1

HUB, FRONT | MODEL G This part replaces 54110-24504.

54110-24505

Unavailable

2

BOLT, FRONT HUB This part replaces 09119-08060.

09119-08067

Unavailable

3

PLUG, BRAKE HOLE

09250-13002

$3.50

4

BEARING, INNER

08120-62047

$28.63

5

BEARING, FRONT HUB OUTER This part replaces 08120-62027.

09262-15024

$24.83

6

DUST SEAL, OUTER

09284-21001

$12.79

7

SPACER, FRONT HUB

54731-24501

Unavailable

8

SPACER, FRONT AXLE

09180-15068

$4.90

9

WASHER This part replaces 08322-11146.

08322-0114A

$1.84

10

NUT, HUB This part replaces 08314-41146.

08314-4014B

$4.24

11

PIN This part replaces 04111-30308.

04111-3030A

$1.49

12

CAP | MODEL F This part replaces 54725-24500.

54725-18A00

$10.28

12

CAP, WHEEL CENTER | MODEL G

54725-18A00

$10.28

13

RIM, FRONT WHEEL (SILVER) | MODEL F This part replaces 55310-18A00-13T.

55310-41B00-13L

Unavailable

13

RIM, FRONT WHEEL (SILVER) | MODEL G This part replaces 55310-18A00-19T.

55310-41B00-13L

Unavailable

14

WASHER This part replaces 08322-21086.

08322-0108A

$1.92

15

NUT (CHROME) This part replaces 08316-16086.

08316-10087

$2.26

16

TIRE, T/L FRONT (21X8.00-9) | DUNLOP

55100-24555

Unavailable

17

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25
