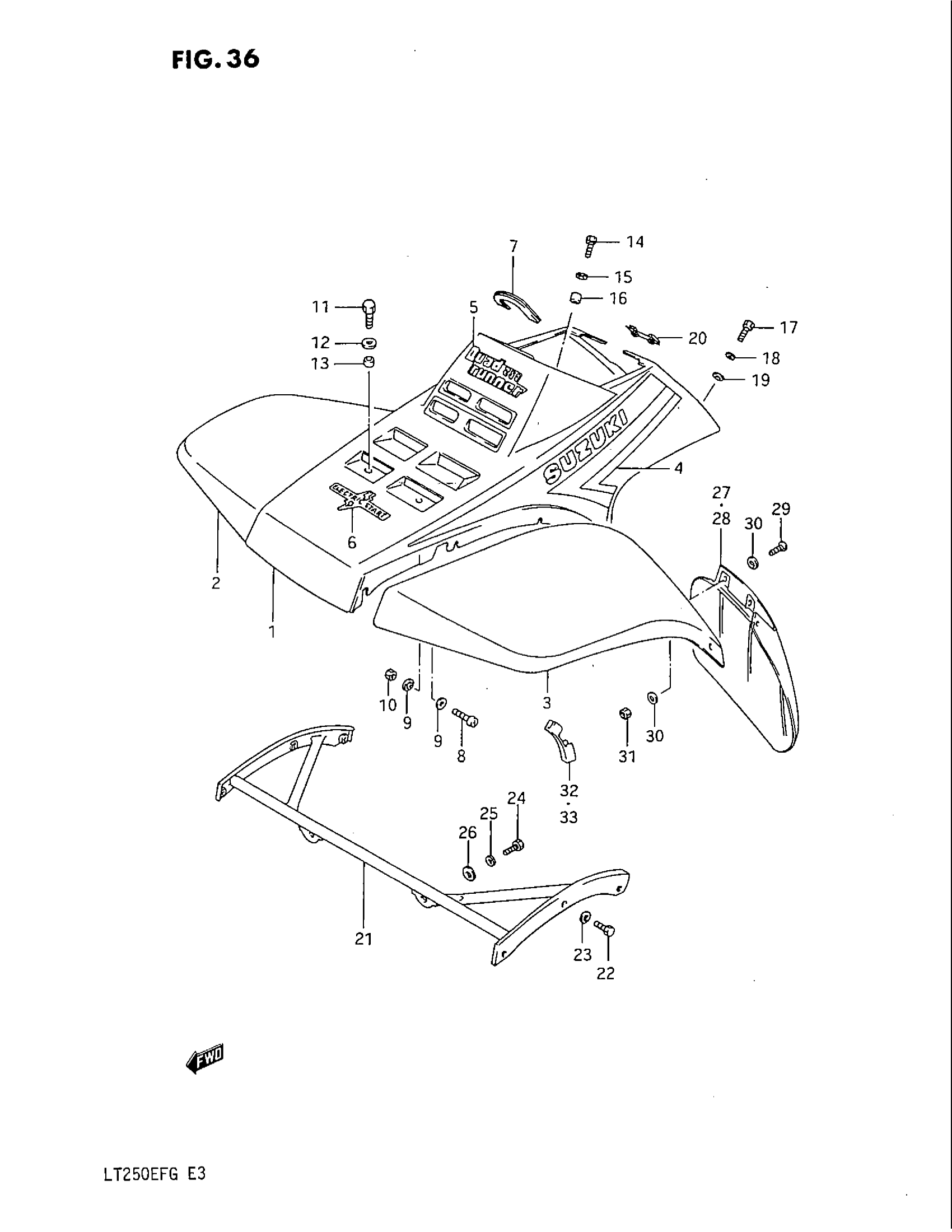

Suzuki LT250EF (1986) FRONT FENDER (MODEL F) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 53111-24501-00N.

53111-24502-00N

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 53118-24501-00N.

53118-24502-00N

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 53119-24501-00N.

53119-24502-00N

Unavailable

4

TAPE SET

68150-24500-96W

Unavailable

5

EMBLEM, FENDER NAME (ORANGE)

68233-24500-20R

Unavailable

6

EMBLEM, ELECTRIC START

68152-24500-7FL

Unavailable

7

PROTECTOR, CABLE

58627-24500

Unavailable

8

SCREW This part replaces 02112-06165.

02112-0616A

$1.49

9

WASHER This part replaces 09169-06034.

09169-06071

$2.50

10

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

11

BOLT This part replaces 01107-08255.

01500-0825A

$2.19

12

WASHER (8.5X20X1.6) This part replaces 09160-08089.

09160-08054

$1.49

13

SPACER, REAR This part replaces 09180-08110.

09180-08184

$3.16

14

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

15

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

16

SPACER

09180-06038

$1.98

17

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

18

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

19

WASHER

09169-06033

$1.50

20

PLATE, BRACE

53280-18900

Unavailable

21

BRACE, FRONT FENDER

53240-24500

Unavailable

22

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

23

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

24

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

25

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

26

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

27

MUD FLAP, RH

53311-24501

Unavailable

28

MUD FLAP, LH

53312-24501

Unavailable

29

SCREW This part replaces 02142-06165.

02142-0616A

$1.49

30

WASHER

09160-06056

$1.72

31

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

32

BRACKET, FENDER SIDE RH

53121-24501

Unavailable

33

BRACKET, FENDER SIDE LH

53122-24501

Unavailable
