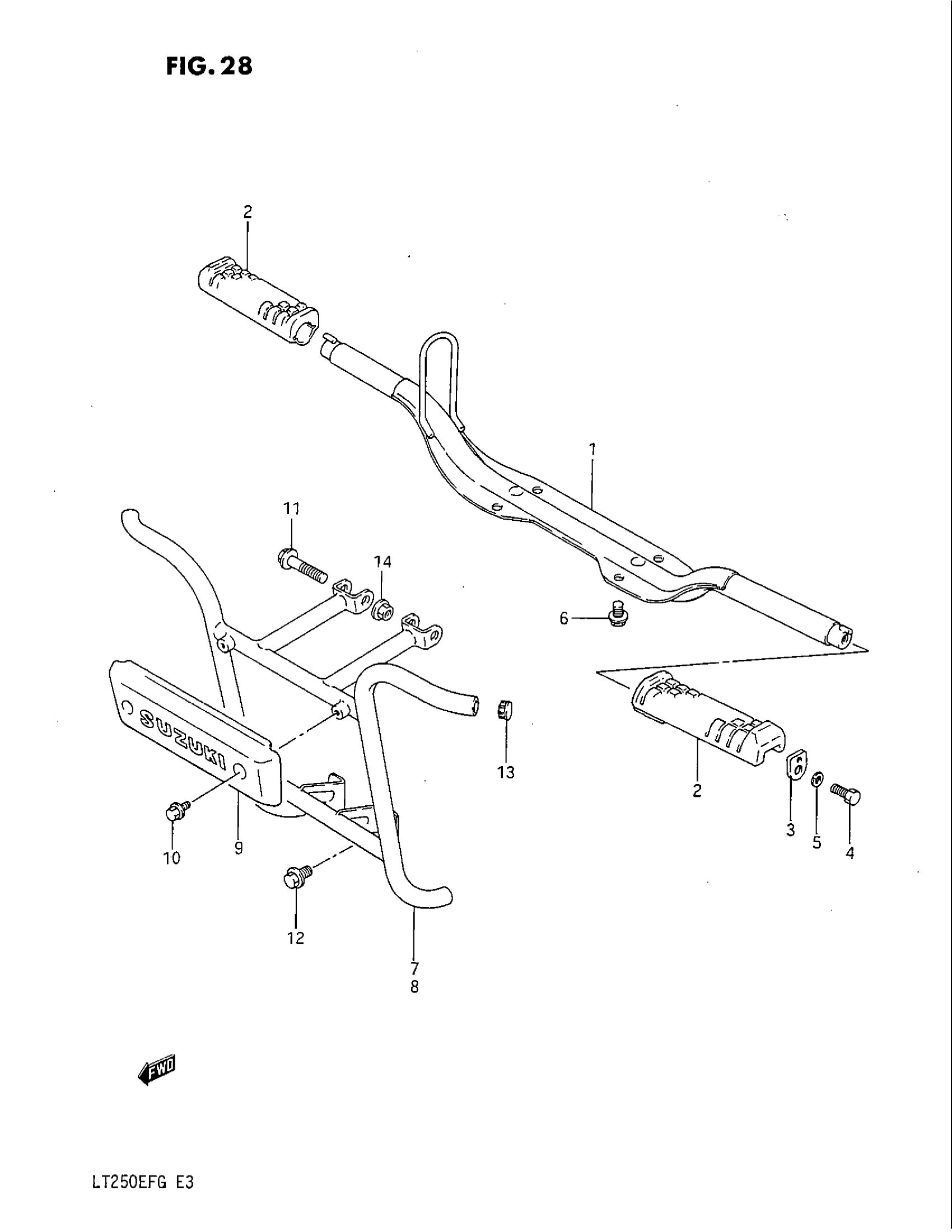

Suzuki LT250EF (1986) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST

43510-24500

Unavailable

2

RUBBER

43551-24400

Unavailable

3

STOPPER

43553-24500

Unavailable

4

BOLT This part replaces 01107-08126.

01500-0812A

$2.28

5

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

6

BOLT (8X12) This part replaces 01517-08126.

01550-0812A

$2.32

7

GRIP, FRONT | MODEL F This part replaces 43990-24500.

43990-24510

Unavailable

8

GRIP, FRONT | MODEL G

43990-24510

Unavailable

9

RUBBER | MODEL G

43976-18A00

Unavailable

10

BOLT | MODEL G This part replaces 01517-05125.

01550-0512B

$2.87

11

BOLT This part replaces 01517-08504.

01550-0850B

$4.17

12

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

$2.32

13

CAP

43978-24500

$8.42

14

NUT This part replaces 08316-16085.

08316-1008B

$2.66
