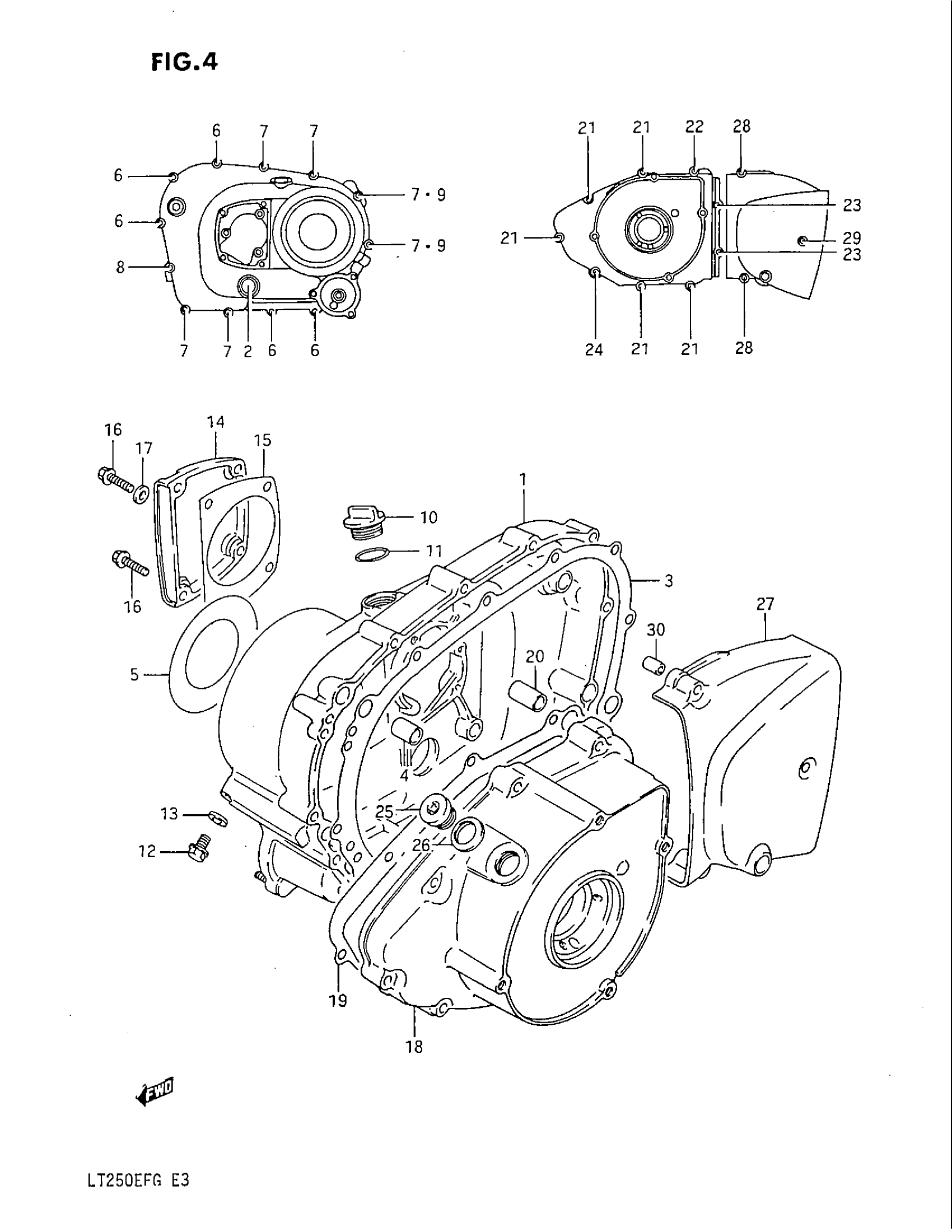

Suzuki LT250EF (1986) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-24501

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET,CL COVER This part replaces 11482-24501.

11482-24501-H17

Unavailable

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

EMBLEM | MODEL F This part replaces 68398-24400.

68398-24410

$13.81

5

EMBLEM | MODEL G

68398-24410

$13.81

6

BOLT, WATER PUMP This part replaces 01547-06354.

01547-0635B

$2.73

7

BOLT This part replaces 01547-06404.

01547-0640B

$2.75

8

BOLT This part replaces 01547-06555.

01547-0655B

$2.75

9

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

10

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$7.50

11

O RING

09280-17003

$1.65

12

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

13

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

14

CAP, CLUTCH RELEASE ADJUST

11387-24501

Unavailable

15

GASKET,ADJUSTER This part replaces 11495-24501.

11495-24501-H17

$5.09

16

..BOLT This part replaces 01547-06205.

01547-0620B

$2.45

17

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

18

COVER, GENERATOR This part replaces 11351-24502.

11351-41B02

Unavailable

19

GASKET,GENERATO This part replaces 11483-24502.

11483-24502-H17

Unavailable

20

PIN

09206-13004

$2.40

21

BOLT This part replaces 01547-06304.

01547-06307

$2.03

22

BOLT, WATER PUMP This part replaces 01547-06354.

01547-0635B

$2.73

23

BOLT This part replaces 01547-06358.

01547-06357

$2.03

24

BOLT This part replaces 01547-06454.

01547-0645B

$2.73

25

PLUG, T.D.C

09248-18001

Unavailable

26

GASKET, OIL FILLER PLUG This part replaces 09168-18005.

09168-18003

$1.49

27

COVER,ENGINE SP This part replaces 11361-24501.

11361-24550

Unavailable

28

BOLT This part replaces 01547-06404.

01547-0640B

$2.75

29

BOLT This part replaces 01547-06555.

01547-0655B

$2.75

30

PIN

04211-09129

$1.65
