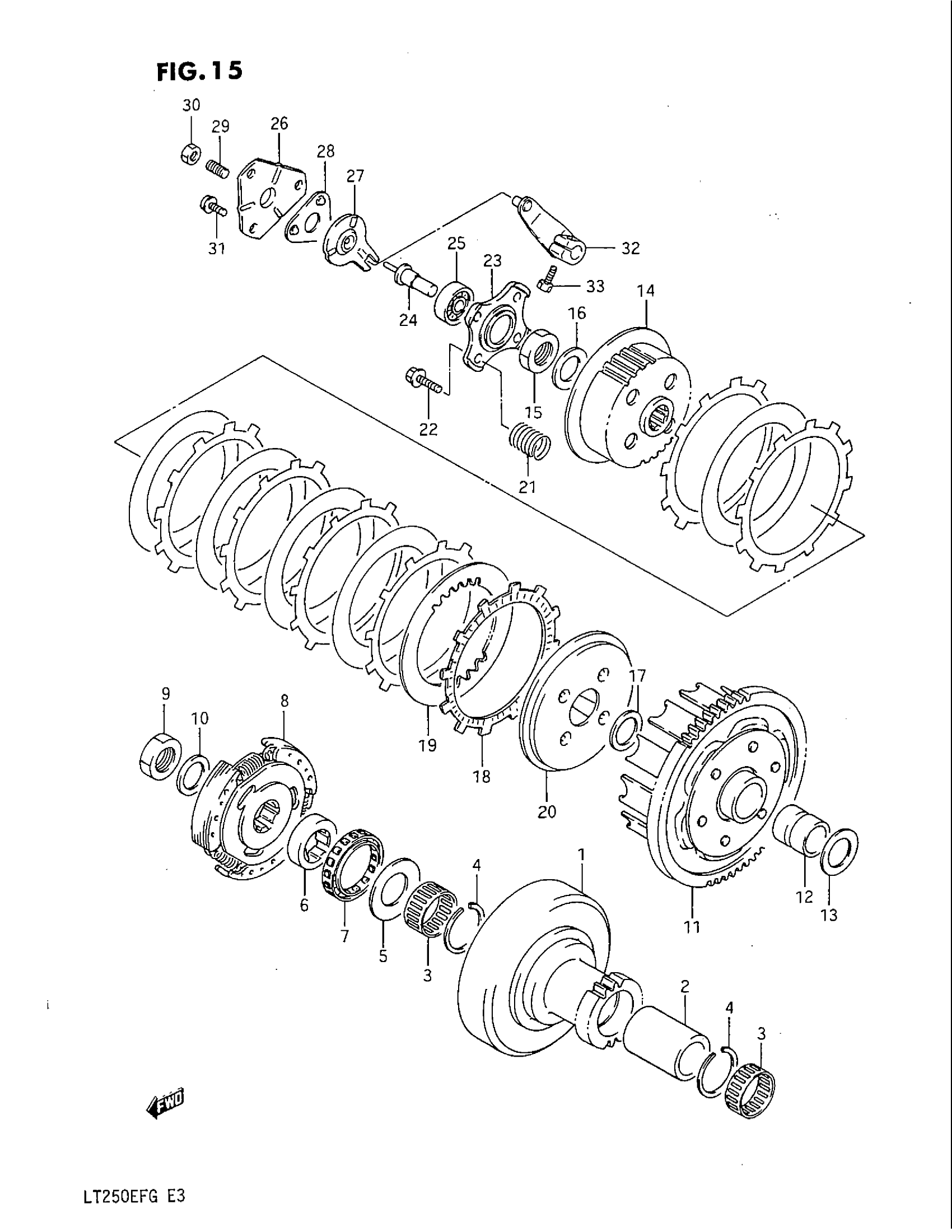

Suzuki LT250EF (1986) CLUTCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 21110-24500.

21110-24501

Unavailable

1

GEAR, PRIMARY DRIVE (NT:18) | MODEL G

21110-24510

Unavailable

2

SPACER

09180-25072

Unavailable

3

BEARING

09263-32008

Unavailable

4

CIRCLIP

09381-37001

Unavailable

5

WASHER

08211-25485

Unavailable

6

RACE, INNER

21631-24500

Unavailable

7

CLUTCH, ONE WAY

21273-01401

Unavailable

8

SHOE CLUTCH ASS This part replaces 21500-24501.

21500-24502

Unavailable

9

NUT This part replaces 09140-20008.

09140-20013

$4.26

10

LOCK WASHER

09164-20007

$4.60

11

GEAR ASSY, PRIMARY DRIVEN | NT:63 This part replaces 21200-24500.

21200-24501

Unavailable

12

SPACER

09180-22031

Unavailable

13

WASHER (22X36X1.0) This part replaces 08211-22361.

09181-22251

$3.78

14

HUB, CLUTCH

21410-24500

Unavailable

15

NUT This part replaces 09140-20002.

09140-20001

$3.37

16

WASHER

09164-20007

$4.60

17

WASHER

08211-20323

$3.03

18

PLATE, DRIVE This part replaces 21441-11900.

21441-22A01

$14.73

19

PLATE, DRIVEN This part replaces 21451-11900.

21451-01B40

$8.40

20

DISC, PRESSURE

21462-24501

$53.90

21

SPRING

09440-18017

Unavailable

22

BOLT This part replaces 01517-06208.

01550-06207

$2.30

23

PLATE, RELEASE

21465-24500

$19.15

24

PIECE, PUSH | MODEL F This part replaces 23121-24500.

23121-19B00

Unavailable

24

PIECE, PUSH | MODEL G This part replaces 23121-24501.

23121-19B00

Unavailable

25

BEARING (12X28X8) This part replaces 08110-60010.

09262-12001

$18.47

26

BALL GUIDE, OUTER

23231-24500

Unavailable

27

GUIDE, BALL INNER This part replaces 23211-24500.

23211-24502

Unavailable

28

BALL, RELEASE

23250-24500

Unavailable

29

SCREW, ADJUSTER

09134-08009

$3.87

30

NUT This part replaces 08310-22088.

08310-00087

$2.13

31

SCREW This part replaces 02152-06168.

02112-16167

$3.15

32

ARM, RELEASE

23220-24500

$32.92

33

BOLT This part replaces 09100-06091.

01500-06207

$2.28
