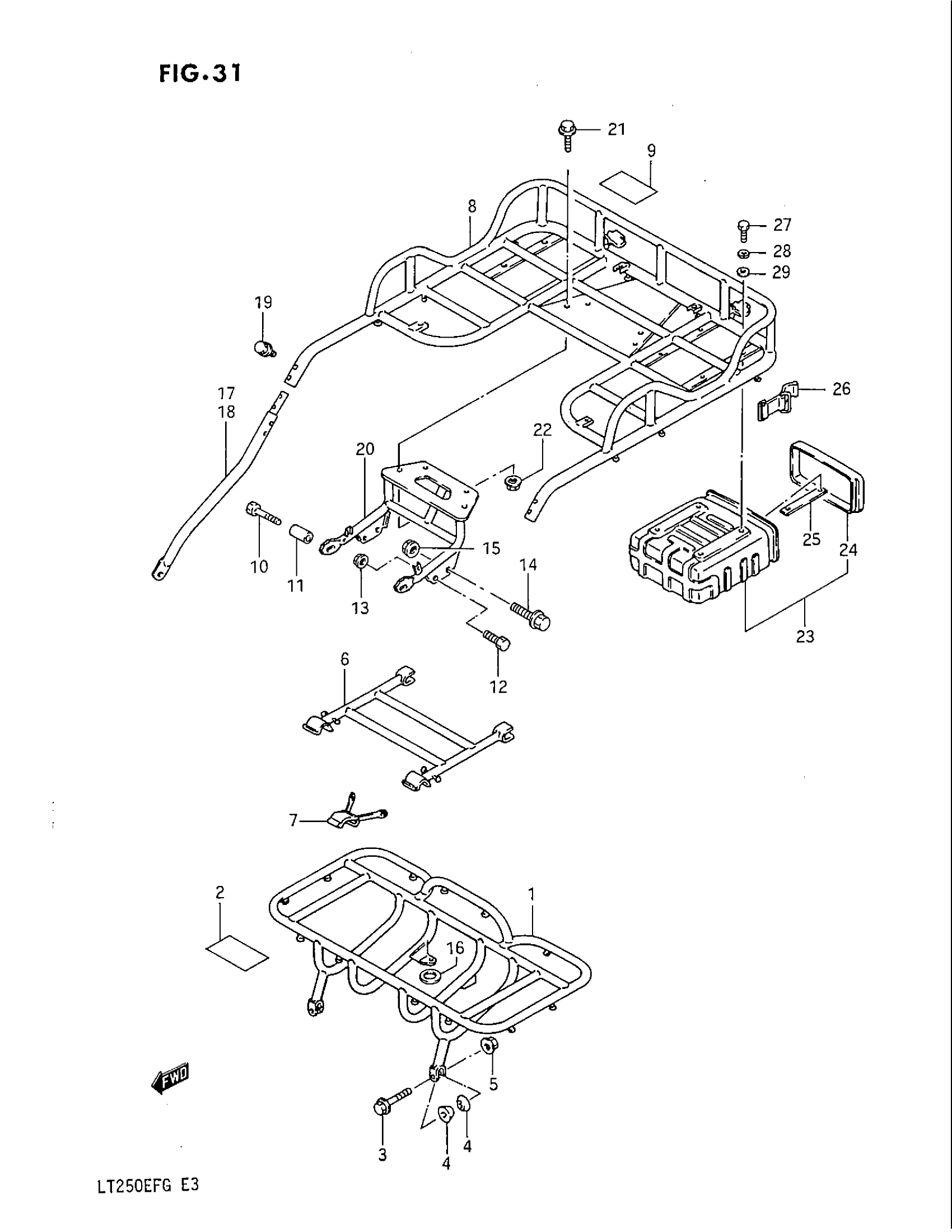

Suzuki LT250EF (1986) CARRIER Diagram

#

Description
Price

1

CARRIER, FRONT

46410-24550

Unavailable

2

LABEL,REAR CARR This part replaces 68381-24500.

68391-19B01

$5.60

3

BOLT This part replaces 01517-08405.

01550-08407

$3.42

4

SPACER

46441-24451

Unavailable

5

NUT This part replaces 08316-16085.

08316-1008B

$2.66

6

CARRIER, FRONT SUB

46340-24450

Unavailable

7

BAND

09462-00083

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 46310-24560.

46310-24570

Unavailable

9

LABEL,REAR CARR This part replaces 68381-24500.

68391-19B01

$5.60

10

BOLT This part replaces 01517-08304.

01550-0830A

$3.04

11

SPACER, TAIL COVER RR RR This part replaces 09180-08050.

09180-08199

$2.12

12

BOLT, CENTER

09103-08065

Unavailable

13

NUT This part replaces 08319-31088.

08319-3108A

$2.32

14

BOLT, REAR

09103-10037

Unavailable

15

NUT This part replaces 08319-31108.

08319-31107

$2.73

16

WASHER

09160-10081

$2.90

17

LEG, REAR CARRIER RH

46360-24550

Unavailable

18

LEG, REAR CARRIER LH

46370-24550

Unavailable

19

BOLT This part replaces 01517-08304.

01550-0830A

$3.04

20

SUB CARRIER, REAR

46380-24550

Unavailable

21

BOLT (8X20) This part replaces 09103-08102.

09103-08505

$3.58

22

NUT This part replaces 08319-31085.

08319-3108A

$2.32

23

BOX SET | Includes Item(s) 24 - 29

47400-24820

Unavailable

24

CAP, BOX

47432-24500

Unavailable

25

PLATE, BOX

47441-29500

Unavailable

26

BAND, BOX

44560-41300

Unavailable

27

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

28

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

29

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26
