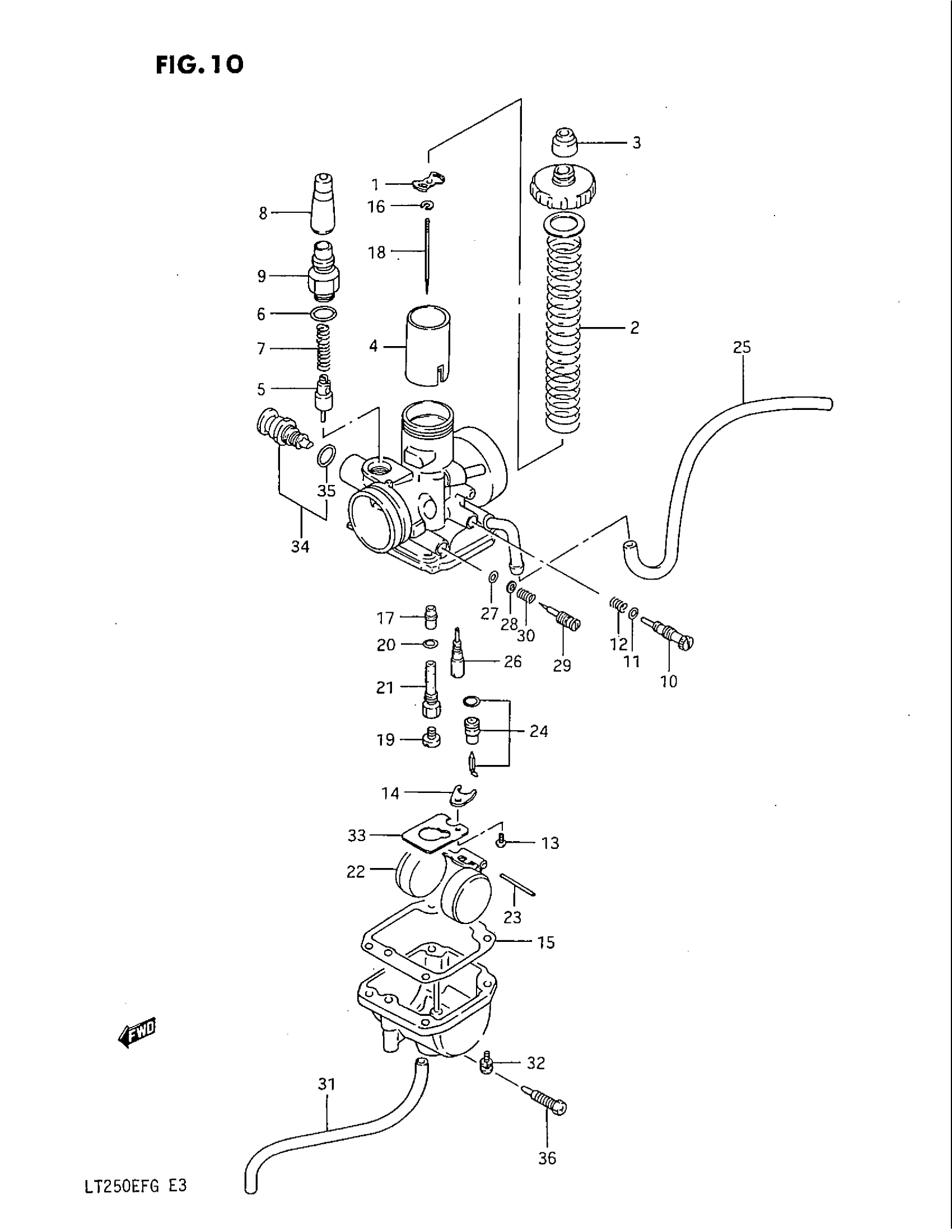

Suzuki LT250EF (1986) CARBURETOR Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 36 This part replaces 13200-24500.

13200-24510

Unavailable

1

SPRING, SEAT

13581-09210

$6.55

2

SPRING, THROTTLE VALVE

13573-05320

Unavailable

3

.CAP This part replaces 13681-04010.

13681-04011

$4.93

4

NO DESCRIPTION AVAILABLE This part replaces 13551-24500.

13551-05320

Unavailable

5

PLUNGER

13411-24500

$22.41

6

O RING

13278-02330

$2.82

7

SPRING

13417-01010

$4.62

8

CAP

13681-16600

$3.77

9

CAP, PLUNGER

13418-24500

$17.68

10

SCREW

13267-24500

$10.55

11

O RING

13295-33010

$4.48

12

SPRING

13268-35010

$4.48

13

SCREW This part replaces 02112-03066.

02112-0306B

$1.59

14

PLATE

13373-46710

$6.17

15

GASKET

13251-05320

$7.69

16

E RING

13394-10010

$5.45

17

JET, NEEDLE (O-3)

09494-00435

Unavailable

18

NEEDLE, JET (4JT44-3)

13383-24500

Unavailable

19

JET, MAIN (100)

09491-20017

$9.69

20

.O RING This part replaces 13246-43010.

13246-43011

$4.34

21

PIPE, BLEEDER

13385-47030

Unavailable

22

FLOAT This part replaces 13252-05320.

13250-05230

$26.91

23

.PIN, FLOAT

13254-01010

$3.62

24

NEEDLE VALVE ASSY

13370-05320

$62.80

25

HOSE,5X10X600 | L:400->300 This part replaces 13683-11420.

44421-13ER0

$10.06

26

JET, PILOT (22.5) This part replaces 09492-22003.

09492-22008

$14.85

27

O-RING This part replaces 13278-44080.

13295-29901

$4.34

28

WASHER This part replaces 13277-44080.

13291-29900

$1.98

29

SCREW, PILOT (2 7/8) This part replaces 13279-47080.

13279-47070

$13.36

30

.SPRING (NT:45)

13268-47070

$4.34

31

.HOSE (3X7X600) This part replaces 13684-18900.

09355-30001-600

$8.56

32

SCREW

13601-04148

$2.81

33

PLATE

13259-18900

$7.53

34

PLUNGER ASSY, STARTER

13439-18911

$51.93

35

O RING

13278-02330

$2.82

36

SCREW

13247-24500

Unavailable
