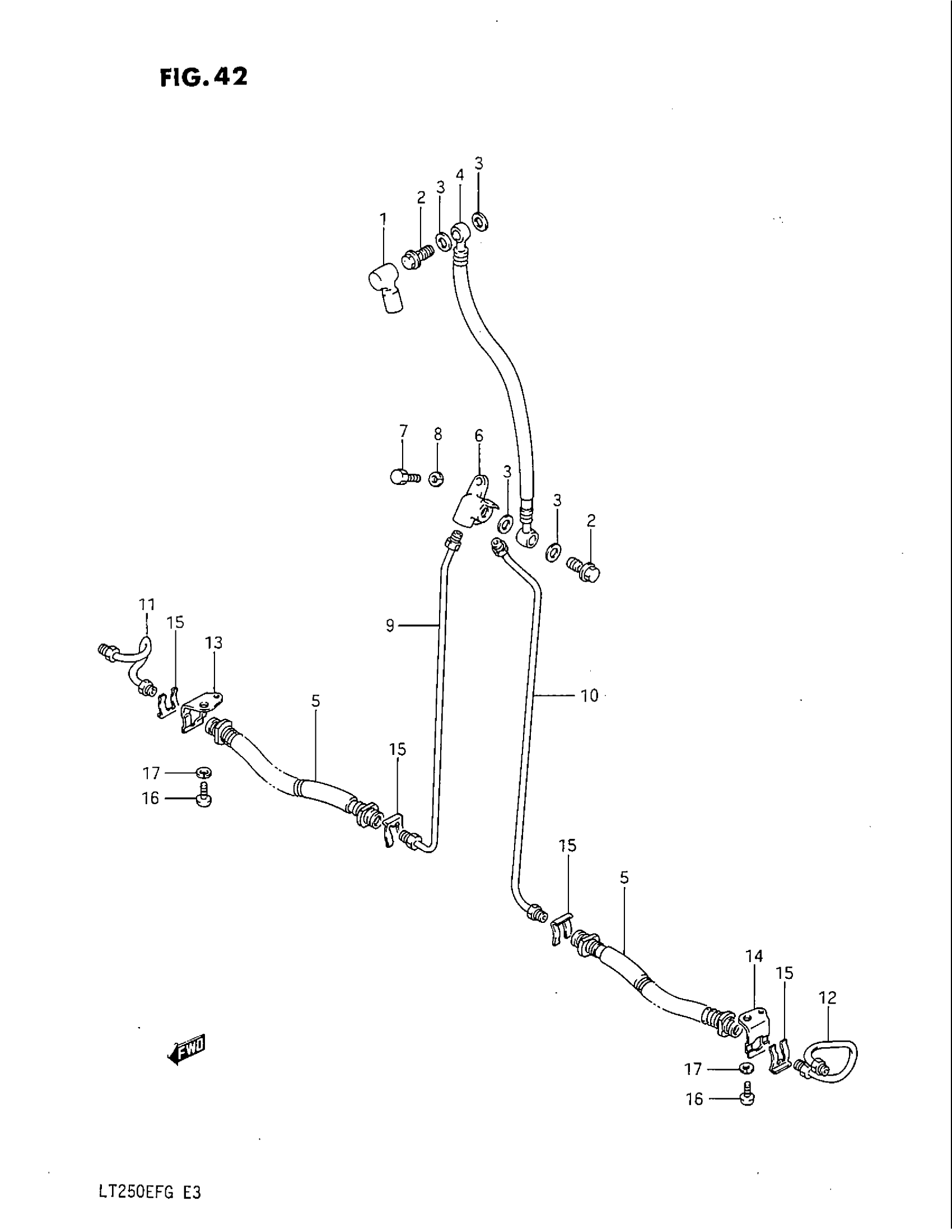

Suzuki LT250EF (1986) BRAKE HOSE Diagram

#

Description
Price

1

BOOT,MASTER CYL This part replaces 59711-04700.

59711-04701

$20.62

2

BOLT

09360-10017

$3.42

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

HOSE, FRONT BRAKE NO.1

59480-24502

Unavailable

5

HOSE, FRONT BRAKE NO.2

59240-24503

Unavailable

6

JOINT (WHITE) This part replaces 59490-24501.

59490-24502

Unavailable

7

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

8

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

9

PIPE, NO.1, RH

59250-24502

Unavailable

10

PIPE, NO.1, LH

59450-24502

Unavailable

11

PIPE, NO.2, RH

59250-24512

Unavailable

12

PIPE, NO.2, LH

59450-24512

Unavailable

13

GUIDE, HOSE NO.2, RH

59261-24502

Unavailable

14

GUIDE, HOSE NO.2, LH

59271-24502

Unavailable

15

E RING This part replaces 09383-13001.

09383-13003

$2.30

16

SCREW This part replaces 02112-06126.

02112-0612A

$1.49

17

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84
