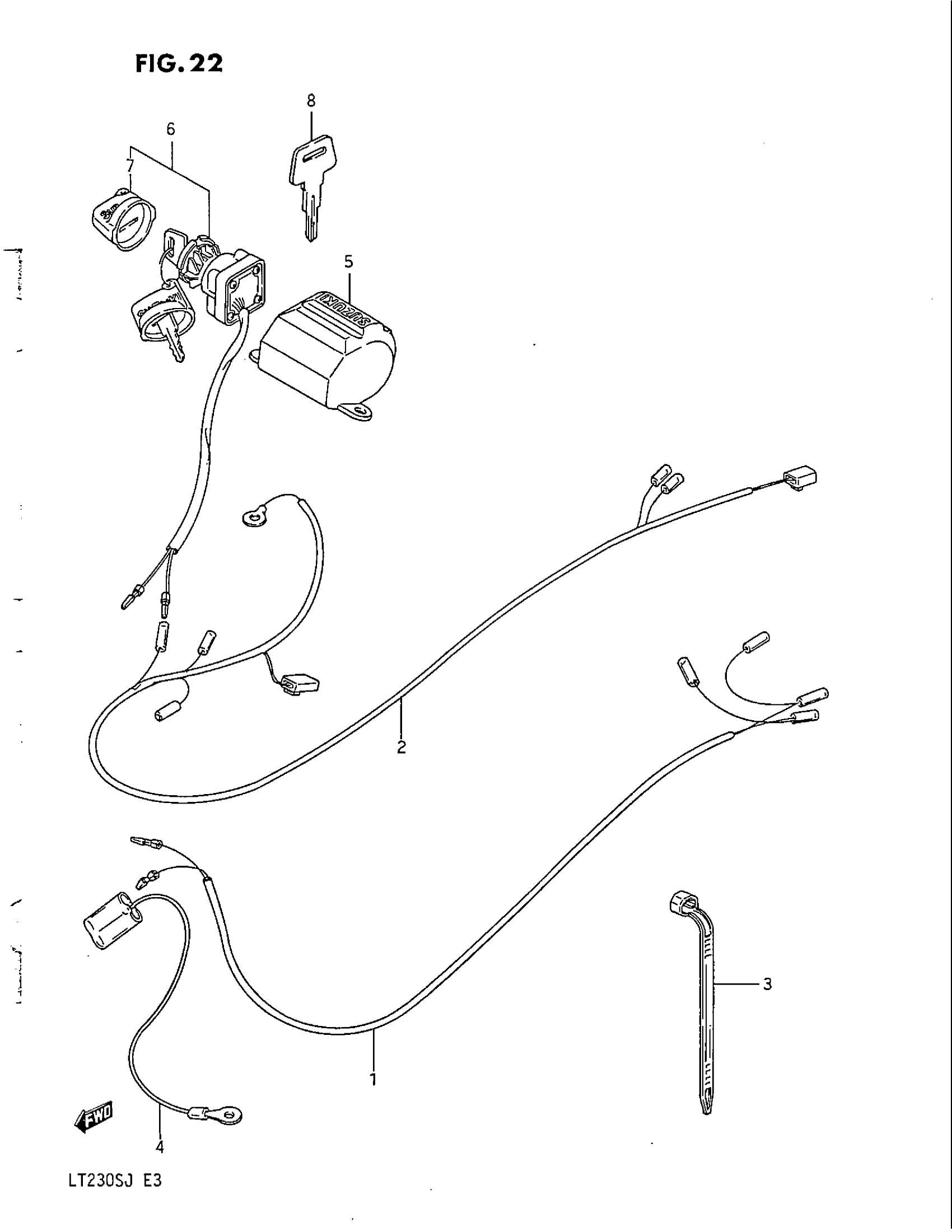

Suzuki LT230S (1988) WIRING HARNESS Diagram

#

Description
Price

1

LEAD WIRE, TAIL LAMP | MODEL F/G

36852-22A01

Unavailable

2

HARNESS, WIRING | MODEL H/J This part replaces 36610-22A10.

36610-25C00

Unavailable

3

CLAMP (L:95)

09407-11401

$2.63

3

CLAMP (L:125)

09407-14403

$2.26

3

CLAMP (L:165) | MODEL F/G/JMODEL H

09407-18402

$2.19

3

CLAMP (L:235)

09407-25401

$4.66

4

LEAD WIRE, EARTH | MODEL F/G

36851-24200

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 36380-19A00.

36380-19A0V

Unavailable

6

SWITCH ASSY,IGN | MODEL H This part replaces 37110-19A10.

37110-24202

Unavailable

6

SWITCH ASSY,IGN | MODEL J; Includes Item(s) 7 This part replaces 37110-24201.

37110-24202

Unavailable

7

.MASCOT,KEY | MODEL H/J This part replaces 37142-19B00.

37142-19B01

$4.99

8

KEY,BLANK (TYPE:C) | MODEL H/J OPT

37146-19B00

$8.07

8

KEY,BLANK (TYPE:D) | MODEL H/J OPT

37146-19B10

$8.07
