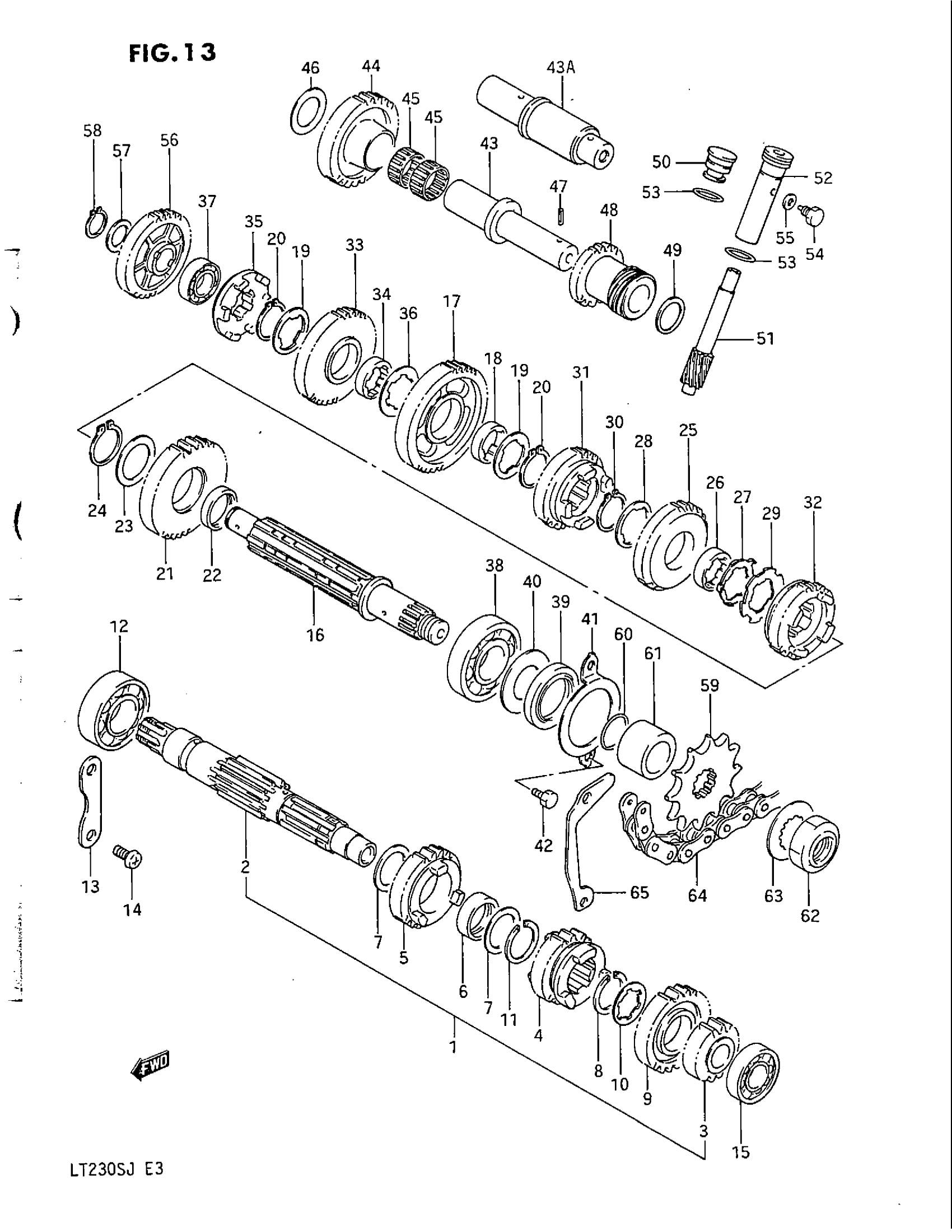

Suzuki LT230S (1988) TRANSMISSION Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 11 This part replaces 24120-22A00.

24120-22A01

Unavailable

2

COUNTERSHAFT (NT:12) This part replaces 24121-22A01.

24121-22A02

Unavailable

3

GEAR, 2ND DRIVE (NT:14)

24221-22A00

Unavailable

4

GEAR, 3RD DRIVE (NT:15)

24231-22A00

Unavailable

5

GEAR, 4TH DRIVE (NT:22)

24241-22A00

Unavailable

6

BUSH

09300-22008

$14.82

7

WASHER, 6TH DRIVE This part replaces 08211-22301.

09181-22167

$2.96

8

CIRCLIP

09380-22006

$3.10

9

GEAR, 5TH DRIVE (NT:22)

24251-22A00

Unavailable

10

WASHER

09167-22013

Unavailable

11

CIRCLIP

09380-22006

$3.10

12

BEARING, RH

09262-22018

$25.60

13

RETAINER

24741-18A00

Unavailable

14

SCREW This part replaces 02112-06128.

02112-06127

$1.84

15

BEARING, LH

09262-15016

Unavailable

16

DRIVESHAFT

24130-22A01

Unavailable

17

GEAR, 1ST DRIVEN (NT:37) This part replaces 24311-18A01.

24311-18A02

Unavailable

18

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$18.67

19

LOCK WASHER

09167-25016

$3.72

20

SNAP RING

09380-25003

$3.04

21

GEAR, 2ND DRIVEN (NT:30)

24321-22A00

Unavailable

22

BUSH

09300-25020

$16.87

23

WASHER

08211-25351

$3.72

24

SNAP RING

09380-25003

$3.04

25

GEAR, 3RD DRIVEN (NT:24)

24331-22A00

Unavailable

26

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$18.67

27

LOCK WASHER

09169-25001

$2.70

28

LOCK WASHER

09167-25016

$3.72

29

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

30

SNAP RING

09380-25003

$3.04

31

GEAR, 4TH DRIVEN (NT:27)

24341-22A00

Unavailable

32

GEAR, 5TH DRIVEN (NT:22)

24351-22A00

Unavailable

33

GEAR, REVERSE DRIVEN (NT:34)

24571-18A02

Unavailable

34

BUSH,REVERSE DRIVEN GEAR

24333-18A00

Unavailable

35

DOG

24581-18A00

Unavailable

36

WASHER

09167-25017

$3.87

37

NO DESCRIPTION AVAILABLE This part replaces 08113-60030.

09262-17037

Unavailable

38

BEARING, RH (22X56X16) This part replaces 09262-22012.

09262-22025

$57.67

39

OIL SEAL

09283-30050

$10.96

40

WASHER (22.1X45.2X1)

24359-22A00

Unavailable

41

RETAINER

24751-22A00

Unavailable

42

BOLT This part replaces 01107-06108.

01500-06107

$2.06

43

SHAFT, REVERSE IDLER | MODEL F/G/H

24551-18A00

Unavailable

43A

SHAFT, REVERSE IDLER | MODEL J This part replaces 24551-35B00.

24551-35B10

Unavailable

44

GEAR, REVERSE IDLER (NT:29)

24561-18A02

Unavailable

45

BEARING (20X24X12.8)

09263-20060

$20.73

46

THRUST WASHER

08211-20301

$2.35

47

PIN This part replaces 06211-04103.

04221-04109

Unavailable

48

GEAR, ODOMETER DRIVE | MODEL F/G/H

26460-22A00

Unavailable

49

THRUST WASHER | MODEL F/G/H

08211-17241

$2.54

50

PLUG

26442-22A00

Unavailable

51

GEAR, ODOMETER DRIVEN | MODEL F/G/H OPT

26471-24410

Unavailable

52

SLEEVE | MODEL F/G/H OPT

26481-24200

Unavailable

53

O RING (D:1.3,ID:9.6)

09280-10001

$2.02

54

BOLT (6X10) This part replaces 09135-06013.

09135-06501

$3.04

55

WASHER (6.2X11X1.2)

09168-06004

$1.49

56

GEAR, KICK IDLE (NT:33) | ~E.NO.123591SEE NOTE

26260-22A02

Unavailable

56

GEAR, KICK IDLE (NT:25) | E.NO.123592~

26260-22A03

Unavailable

57

WASHER (17X24X0.5) This part replaces 08221-17245.

09181-17130

$2.96

58

CIRCLIP This part replaces 08331-31178.

08331-31179

$1.90

59

SPROCKET, ENGINE (NT:12)

27511-24400

Unavailable

60

O RING (D:2.5,ID:21)

09280-21008

$1.91

61

SPACER

27531-22A00

Unavailable

62

NUT

09140-18008

$6.00

63

LOCK WASHER

09167-22012

$1.54

64

CHAIN, DRIVE (520VSX84LE) DID This part replaces 27600-38250-084.

27600-34A40-084

$145.77

65

PLATE | UP TO E.NO.123591,ING PARTS AT THE SAME TIME.IVEN) 1PC.ER DRIVE) 1PC.1PC.

27641-22A00

Unavailable
