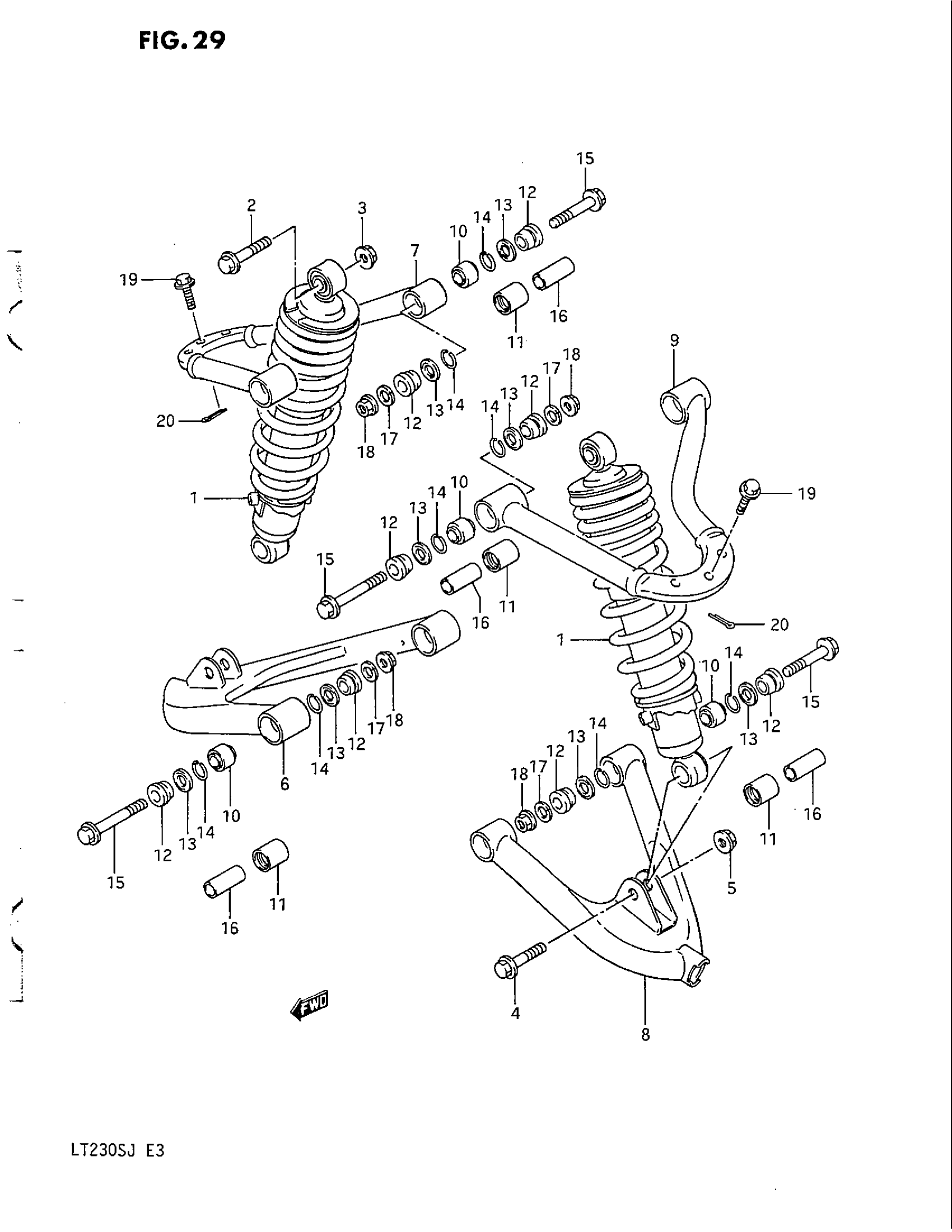

Suzuki LT230S (1988) SUSPENSION ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 52100-22A00-00N.

52100-22A01-00N

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 52100-22A10-25G.

52100-22A11-14L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 52100-22A10-14L.

52100-22A11-14L

Unavailable

1

SHOCK ABSORBER, FRONT (WHITE) | MODEL J

52100-22A20-14L

Unavailable

2

BOLT | MODEL F/G This part replaces 09103-10128.

09103-10019

$2.63

2

BOLT, SHOCK ABSORBER UPPER | MODEL H/J

09103-10019

$2.63

3

NUT

08319-31107

$2.73

4

BOLT | MODEL F/G This part replaces 09103-10128.

09103-10019

$2.63

4

BOLT, SHOCK ABSORBER LOWER | MODEL H/J

09103-10019

$2.63

5

NUT

08319-31107

$2.73

6

ARM, SUSPENSION LOWER RH | MODEL F/G/H

52410-22A00

Unavailable

6

ARM, SUSPENSION LOWER RH | MODEL J

52410-22A10

Unavailable

7

ARM, SUSPENSION UPPER RH | MODEL F/G/H

52430-22A00

Unavailable

7

ARM, SUSPENSION UPPER RH | MODEL J

52430-22A10

Unavailable

8

ARM, SUSPENSION LOWER LH | MODEL F/G/H

52420-22A00

Unavailable

8

ARM, SUSPENSION LOWER LH | MODEL J

52420-22A10

Unavailable

9

ARM, SUSPENSION UPPER LH | MODEL F/G/H

52440-22A00

Unavailable

9

ARM, SUSPENSION UPPER LH | MODEL J

52440-22A10

Unavailable

10

BEARING, SUSPENSION ARM PIVOT | MODEL F/G/H

09269-10006

Unavailable

11

BEARING, SUSPENSION ARM PIVOT | MODEL J

09263-14025

$30.55

12

SPACER | MODEL F/G/H

52419-19A00

$12.40

13

DUST SEAL | MODEL F/G/H

62647-14500

$2.92

14

STOPPER RING, BEARING | MODEL F/G/H

62657-14500

Unavailable

15

BOLT, SUSPENSION ARM PIVOT | MODEL F/G

09103-10107

$4.60

15

BOLT, SUSPENSION ARM PIVOT | MODEL H/J

09103-10185

Unavailable

16

SPACER, SUSPENSION ARM PIVOT | MODEL J

52455-22A00

Unavailable

17

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

18

NUT | MODEL F/G This part replaces 08319-31105.

08319-3110A

$2.73

18

NUT | MODEL H/J

08319-31107

$2.73

19

NO DESCRIPTION AVAILABLE This part replaces 09103-08176.

09103-08503-XC0

Unavailable

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
