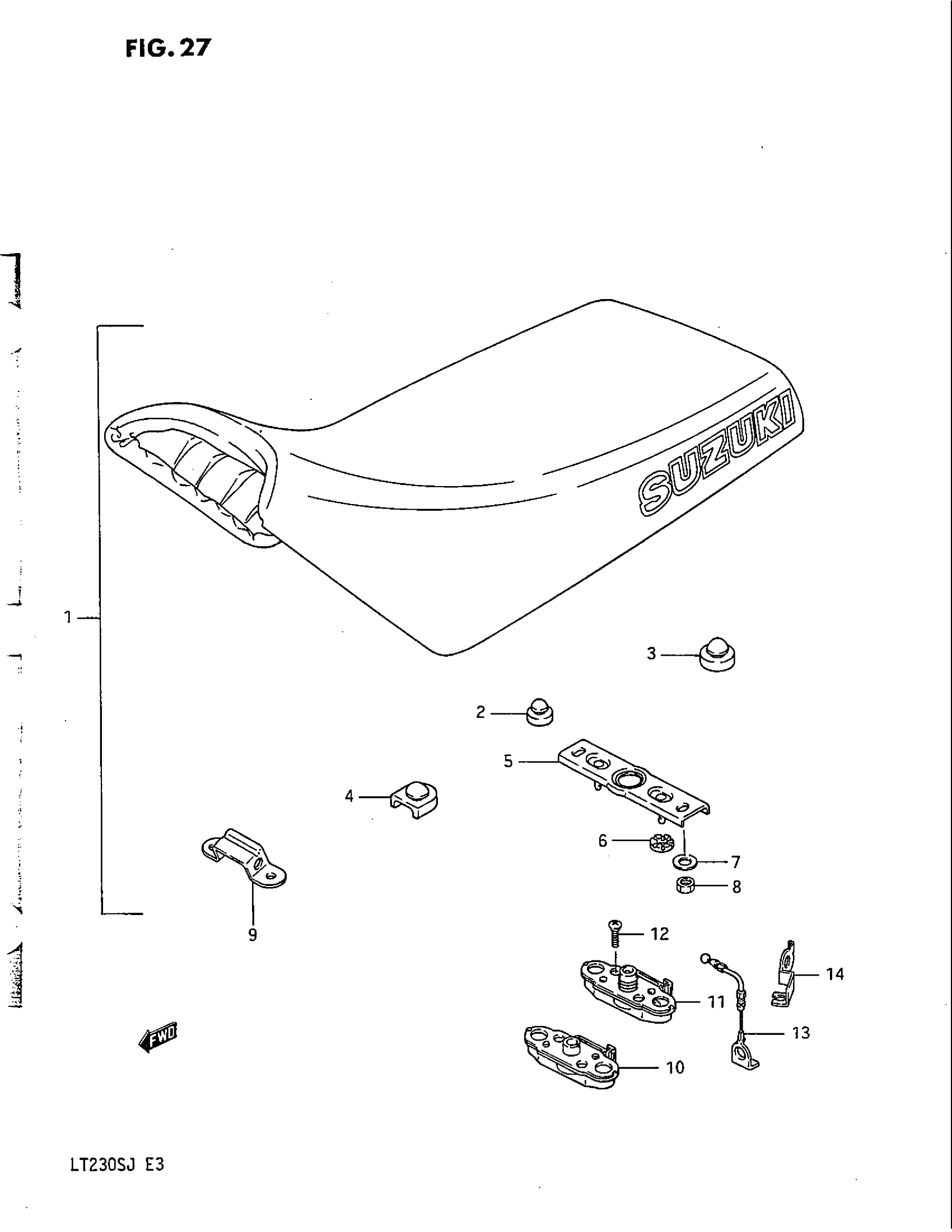

Suzuki LT230S (1988) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLUE) | MODEL F This part replaces 45100-22A00-58P.

45100-22A21-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL G This part replaces 45100-22A01-58D.

45100-22A21-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL G This part replaces 45100-22A10-58D.

45100-22A21-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL H This part replaces 45100-22A10-4UZ.

45100-22A21-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL J; Includes Item(s) 2 - 8 This part replaces 45100-22A20-4UZ.

45100-22A21-4UZ

Unavailable

2

CUSHION

09321-10012

$2.92

3

CUSHION

45149-24302

Unavailable

4

CUSHION

45149-19A00

Unavailable

5

STRIKER, SEAL LOCK | MODEL F/G FOR 45100-22A00-58P FOR 45100-22A01-58D

45210-22A00

Unavailable

5

STRIKER, SEAL LOCK | MODEL G FOR 45100-22A10-58DMODEL H/J This part replaces 45210-22A10.

45210-22A00

Unavailable

6

CUSHION

09320-08031

Unavailable

7

WASHER This part replaces 09160-06007.

09160-06084

$1.78

8

NUT This part replaces 08316-26066.

08316-1006B

$2.50

9

PLATE, SEAT FRONT HOOK

45119-22A00

Unavailable

10

BRACKET, SEAT SUPPORT | MODEL F/G FOR 45100-22A00-58P FOR 45100-22A01-58D This part replaces 45220-20A00.

45220-47H00

$138.38

11

BRACKET, SEAT SUPPORT | MODEL G FOR 45100-22A10-58DMODEL H/J

45220-22A10

$62.85

12

SCREW This part replaces 02122-06306.

02122-0630B

$2.06

13

NO DESCRIPTION AVAILABLE This part replaces 45280-22A00.

45280-22A10

Unavailable

14

PLATE, SEAT LOCK CABLE

45221-19A00

Unavailable
