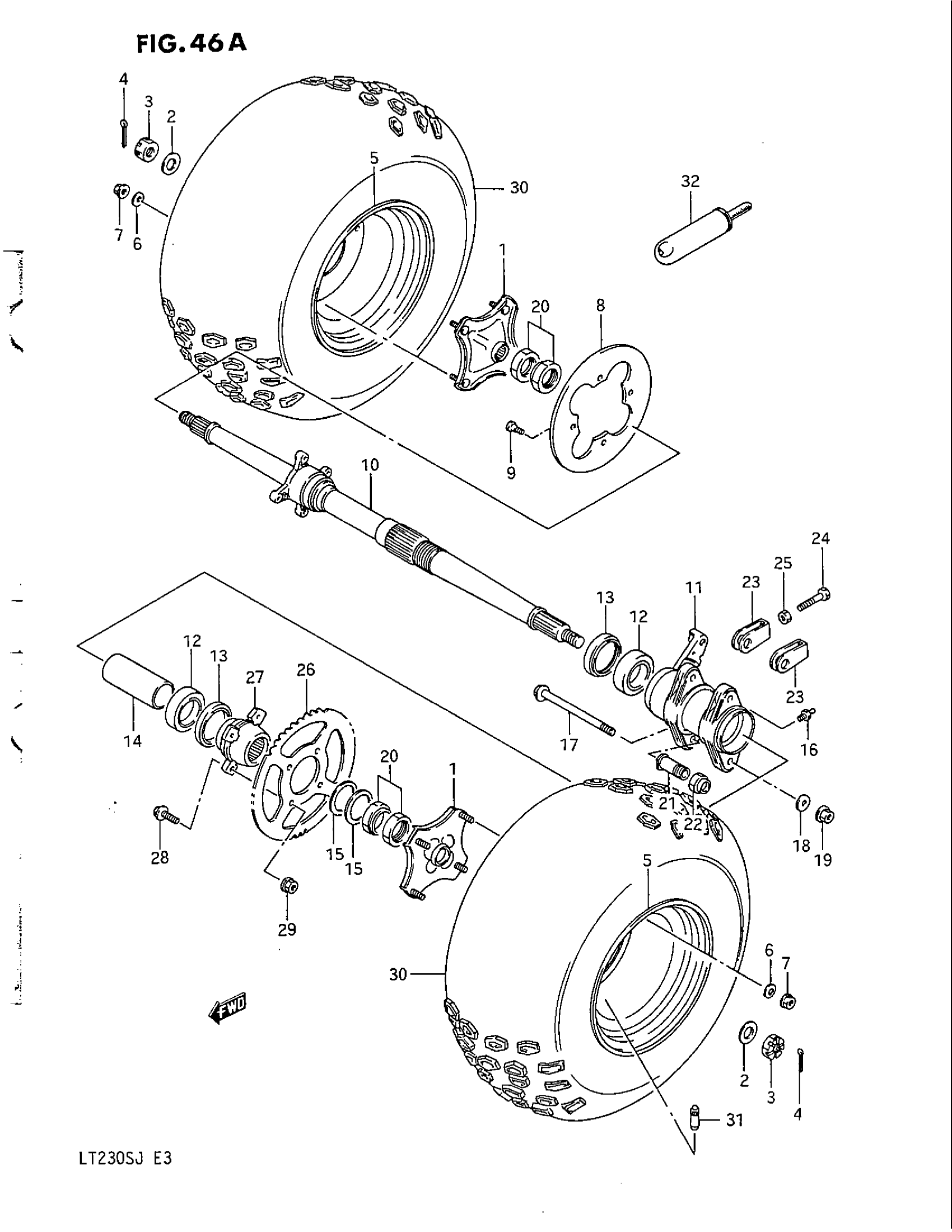

Suzuki LT230S (1988) REAR WHEEL (MODEL J) Diagram

#

Description
Price

1

HUB, REAR This part replaces 64110-22A00-19F.

64110-24511

Unavailable

2

WASHER

09164-18004

$3.76

3

NUT, HUB This part replaces 09141-18004.

09141-18008

$8.37

4

PIN, COTTER This part replaces 04111-40356.

04111-4040A

$1.49

5

RIM, REAR WHEEL

65310-22A10

Unavailable

6

WASHER This part replaces 08322-21108.

08322-01107

$2.15

7

NUT This part replaces 08316-26108.

08316-2010B

$3.43

8

DISC, REAR BRAKE

69211-22A00

Unavailable

9

BOLT

09106-08076

$5.07

10

AXLE, REAR

64710-22A01

Unavailable

11

HOUSING, REAR AXLE This part replaces 64715-35B01.

64720-25C00

Unavailable

12

BEARING

08123-60087

$44.10

13

DUST SEAL

09283-50006

$21.88

14

SPACER

64731-19A00

Unavailable

15

WASHER

09164-38001

$5.27

16

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

17

NO DESCRIPTION AVAILABLE This part replaces 09103-12032.

09103-12032-XC0

Unavailable

18

WASHER, FRONT AXLE This part replaces 09160-12012.

09160-12082

$3.29

19

NUT This part replaces 08319-31128.

08319-3112A

$3.76

20

NUT

64870-19A00

$83.40

21

SPACER

64741-22A00

Unavailable

22

SPACER

64742-22A00

Unavailable

23

ADJUSTER, CHAIN

61410-35B00

$18.31

24

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

25

NUT This part replaces 08310-22088.

08310-00087

$2.13

26

SPROCKET, REAR (NT:41)

64511-22A00

Unavailable

27

FLANGE

64611-22A00

Unavailable

28

BOLT

09103-10129

Unavailable

29

NUT

08319-31107

$2.73

30

TIRE, T/L REAR (21X10.00-9) | DUNLOP

65100-22A50

Unavailable

31

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

32

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A01.

96200-18A02

$58.92
