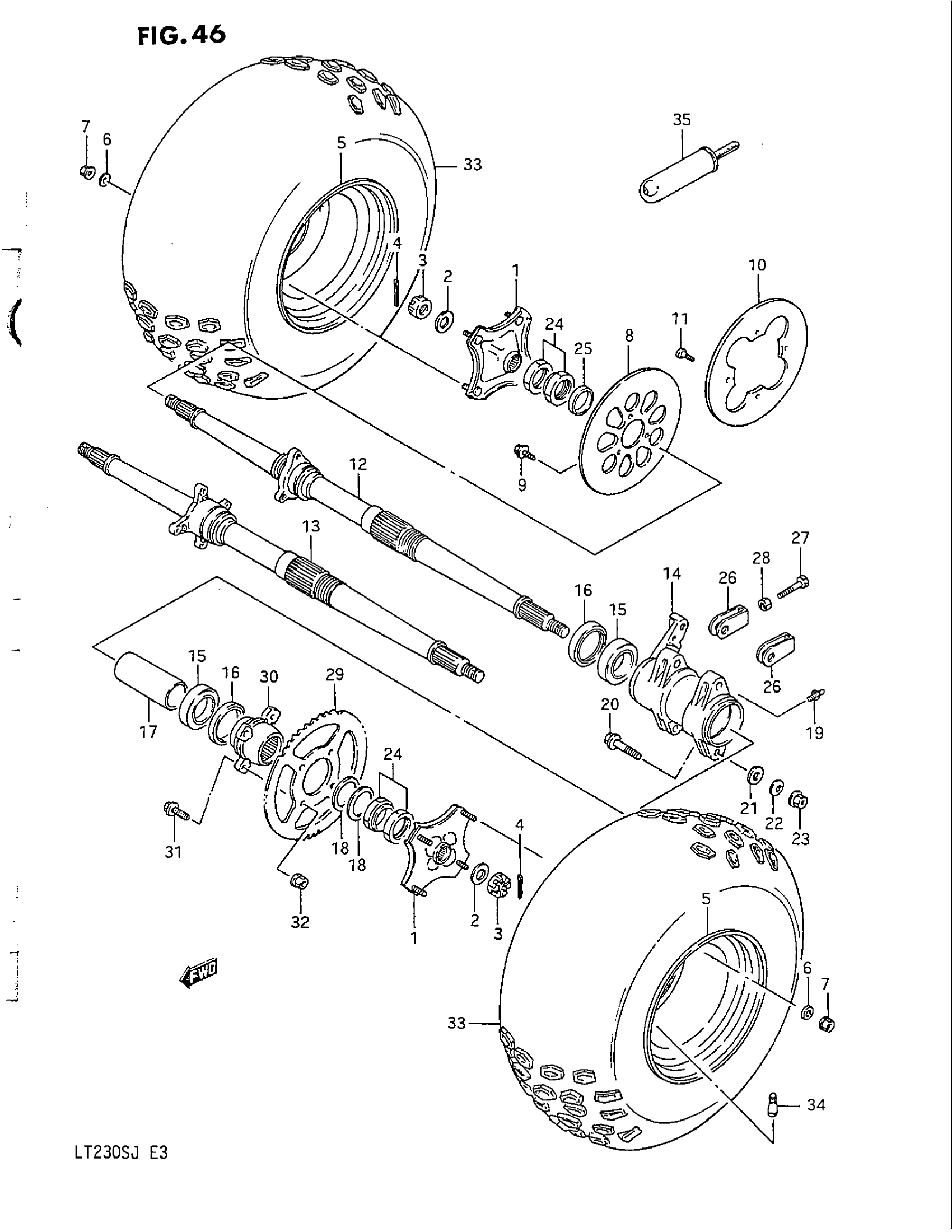

Suzuki LT230S (1988) REAR WHEEL (MODEL H) Diagram

#

Description
Price

1

HUB, REAR This part replaces 64110-22A00-19F.

64110-24511

Unavailable

2

WASHER

09164-18004

$3.76

3

NUT, HUB This part replaces 09141-18004.

09141-18008

$8.37

4

PIN, COTTER This part replaces 04111-40356.

04111-4040A

$1.49

5

RIM, REAR WHEEL

65310-22A10

Unavailable

6

WASHER This part replaces 08322-21108.

08322-01107

$2.15

7

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

8

DISC, REAR BRAKE | ~F.NO.2108531

69211-19A01

Unavailable

9

BOLT | ~F.NO.2108531

09103-08147

$3.72

10

DISC, REAR BRAKE | F.NO.2108532~

69211-22A00

Unavailable

11

BOLT | F.NO.2108532~

09106-08076

$5.07

12

AXLE, REAR | ~F.NO.2108531TO 64710-22A01WITH 69211-22A0009106-08076 This part replaces 64710-22A00.

64710-22A01

Unavailable

13

AXLE, REAR | F.NO.2108532~

64710-22A01

Unavailable

14

HOUSING, REAR AXLE This part replaces 64715-35B01.

64720-25C00

Unavailable

15

BEARING

08123-60087

$44.10

15

DUST SEAL

09283-50006

$21.88

17

SPACER

64731-19A00

Unavailable

18

WASHER

09164-38001

$5.27

19

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

20

BOLT, HOUSING

09103-10158

Unavailable

21

WASHER This part replaces 09160-10028.

09160-10035

$1.78

22

WASHER

09164-10008

$1.71

23

NUT

08319-31107

$2.73

24

NUT

64870-19A00

$83.40

25

SPACER | ~F.NO.2108531

64214-19A00

$13.10

26

ADJUSTER, CHAIN

61410-35B00

$18.31

27

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

28

NUT This part replaces 08310-22088.

08310-00087

$2.13

29

SPROCKET, REAR (NT:41)

64511-22A00

Unavailable

30

FLANGE

64611-22A00

Unavailable

31

BOLT

09103-10129

Unavailable

32

NUT

08319-31107

$2.73

33

TIRE, T/L REAR (21X10.00-9) | DUNLOP

65100-22A50

Unavailable

34

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

35

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A00.

96200-18A02

$58.92
