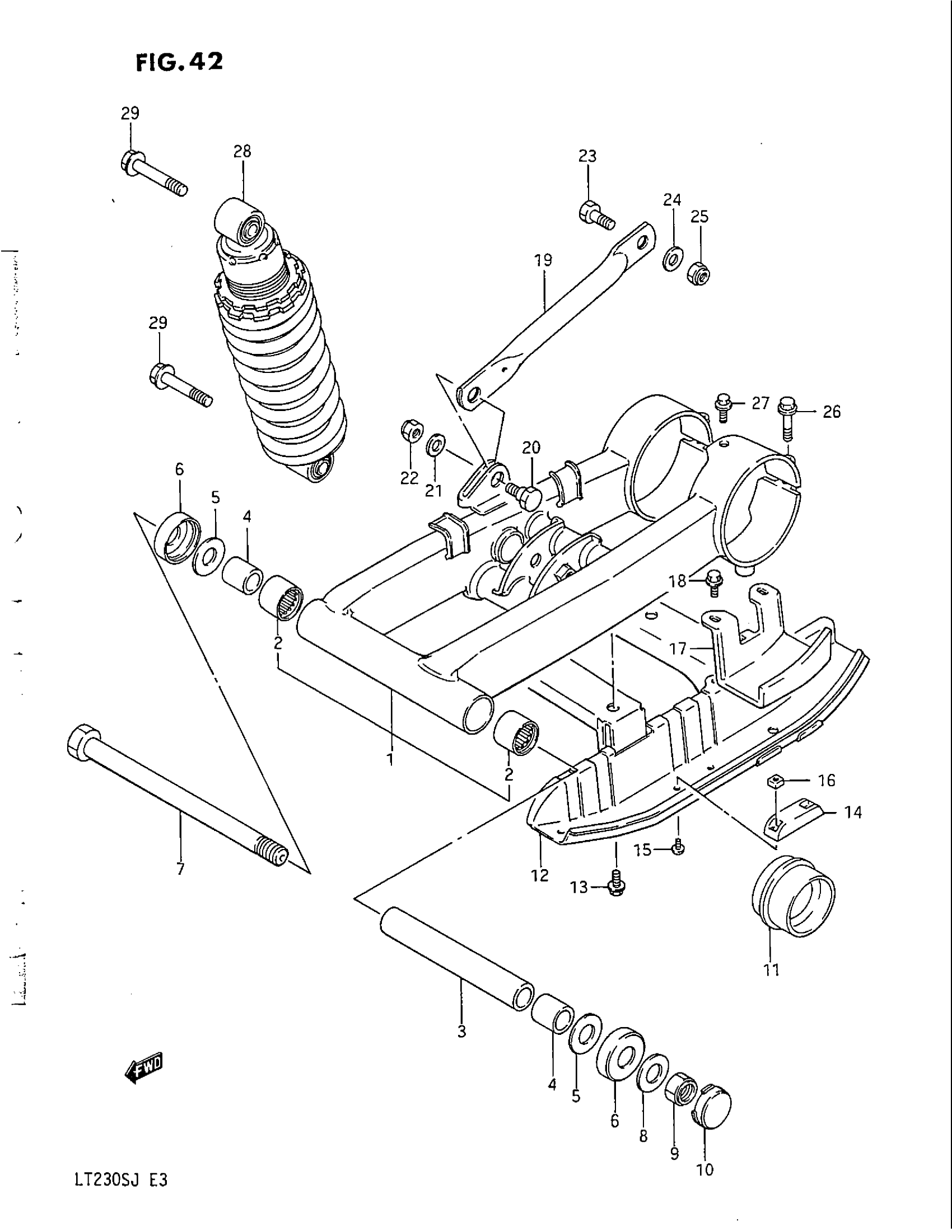

Suzuki LT230S (1988) REAR SWINGING ARM (MODEL F/G) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | SILVER; Includes Item(s) 2

61000-22A00-126

Unavailable

2

BEARING

09263-22022

$22.69

3

SPACER, CENTER

61282-22A00

Unavailable

4

SPACER This part replaces 61251-22A00.

61251-22A01

Unavailable

5

THRUST WASHER

08211-15341

$2.85

6

COVER This part replaces 61262-22A00.

61262-22A01

$6.05

7

SHAFT

61211-22A00

Unavailable

8

WASHER

09160-14009

$2.82

9

NUT This part replaces 09159-14013.

09159-14019

$11.61

10

CAP (BLACK)

61222-13A00-019

Unavailable

11

BUFFER

61273-22A00

$10.48

12

GUARD, DISC & SPROCKET | MODEL F This part replaces 61390-22990.

61390-22A10

Unavailable

12

GUARD, DISC & SPROCKET | MODEL G

61390-22A10

Unavailable

13

BOLT This part replaces 01517-08206.

01550-0820A

$2.23

14

BUFFER, GUARD

61397-22A00

Unavailable

15

SCREW This part replaces 02142-05085.

02142-0508A

$1.49

16

NUT This part replaces 08318-11056.

08318-1105A

$1.50

17

BUFFER, GUARD | MODEL G

61398-22A10

Unavailable

18

BOLT | MODEL G This part replaces 01517-06108.

01550-06107

$2.80

19

TORQUE LINK, REAR (SILVER)

64311-22A00-126

Unavailable

20

BOLT, FRONT

09111-08064

$4.50

21

WASHER This part replaces 08322-11088.

08322-01087

$2.13

22

NUT This part replaces 08319-21088.

08319-2108A

$2.12

23

BOLT, REAR

09100-10230

Unavailable

24

WASHER This part replaces 08322-11107.

08322-01107

$2.15

25

NUT

09159-10027

$3.10

26

BOLT

09103-08042

$4.77

27

BOLT This part replaces 01517-06108.

01550-06107

$2.80

28

ABSORBER ASSY, REAR SHOCK | MODEL F This part replaces 62100-22A00-00N.

62100-22A11-14L

Unavailable

28

ABSORBER ASSY, REAR SHOCK | MODEL G This part replaces 62100-22A10-25G.

62100-22A11-14L

Unavailable

29

BOLT

09103-10064

$5.52
