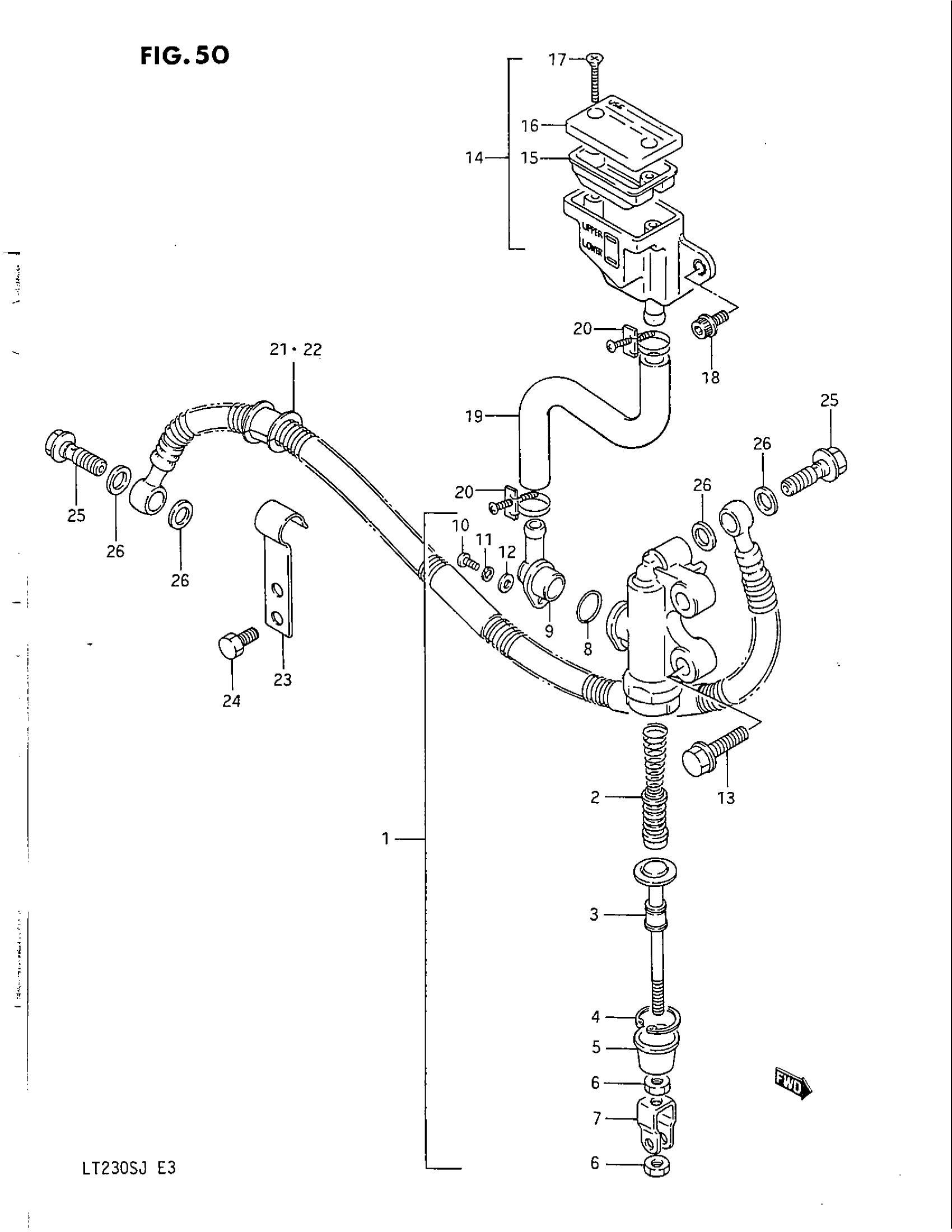

Suzuki LT230S (1988) REAR MASTER CYLINDER (MODEL G/H/J) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER (WHITE) | Includes Item(s) 2 - 12 This part replaces 69600-22A00.

69600-22A01

Unavailable

2

PISTON & CUP SET This part replaces 69600-16820.

69600-04810

$55.78

3

ROD, PUSH

69670-00A00

Unavailable

4

CIRCLIP

51162-70040

$3.67

5

.BOOT

69691-00A00

$5.22

6

NUT

69693-05A00

$1.86

7

YOKE

69692-19A00

$19.03

8

O RING

69686-34200

$2.80

9

CONNECTOR

69672-05A00

$5.47

10

SCREW This part replaces 02112-04124.

02112-0412A

$1.27

11

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.92

12

WASHER This part replaces 08322-21045.

08322-0104A

$1.99

13

BOLT This part replaces 01517-08304.

01550-0830A

$2.82

14

TANK ASSY,RR RESERVOIR | Includes Item(s) 15 - 17 This part replaces 69740-27A31.

69740-01D02

$67.43

15

DIAPHRAGM

59667-04700

$9.36

16

CAP This part replaces 59669-04710.

69669-24A01

$14.87

17

SCREW

69689-04A00

$2.15

18

BOLT, OIL GALLERY This part replaces 07120-06126.

07120-0612B

$2.88

19

HOSE

69731-22A10

Unavailable

20

CLAMP This part replaces 09400-16302.

09400-16304

$2.94

21

HOSE, REAR BRAKE | MODEL G

69480-22A00

Unavailable

22

HOSE, REAR BRAKE | MODEL H/J This part replaces 69480-35B00.

69480-35B01

Unavailable

23

GUIDE, HOSE | MODEL H/J

69243-35B01

Unavailable

24

BOLT | MODEL H/J This part replaces 01107-06127.

01500-06127

$2.01

25

BOLT

09360-10017

$3.19

26

WASHER (10X15X1.5)

09161-10009

$1.89
