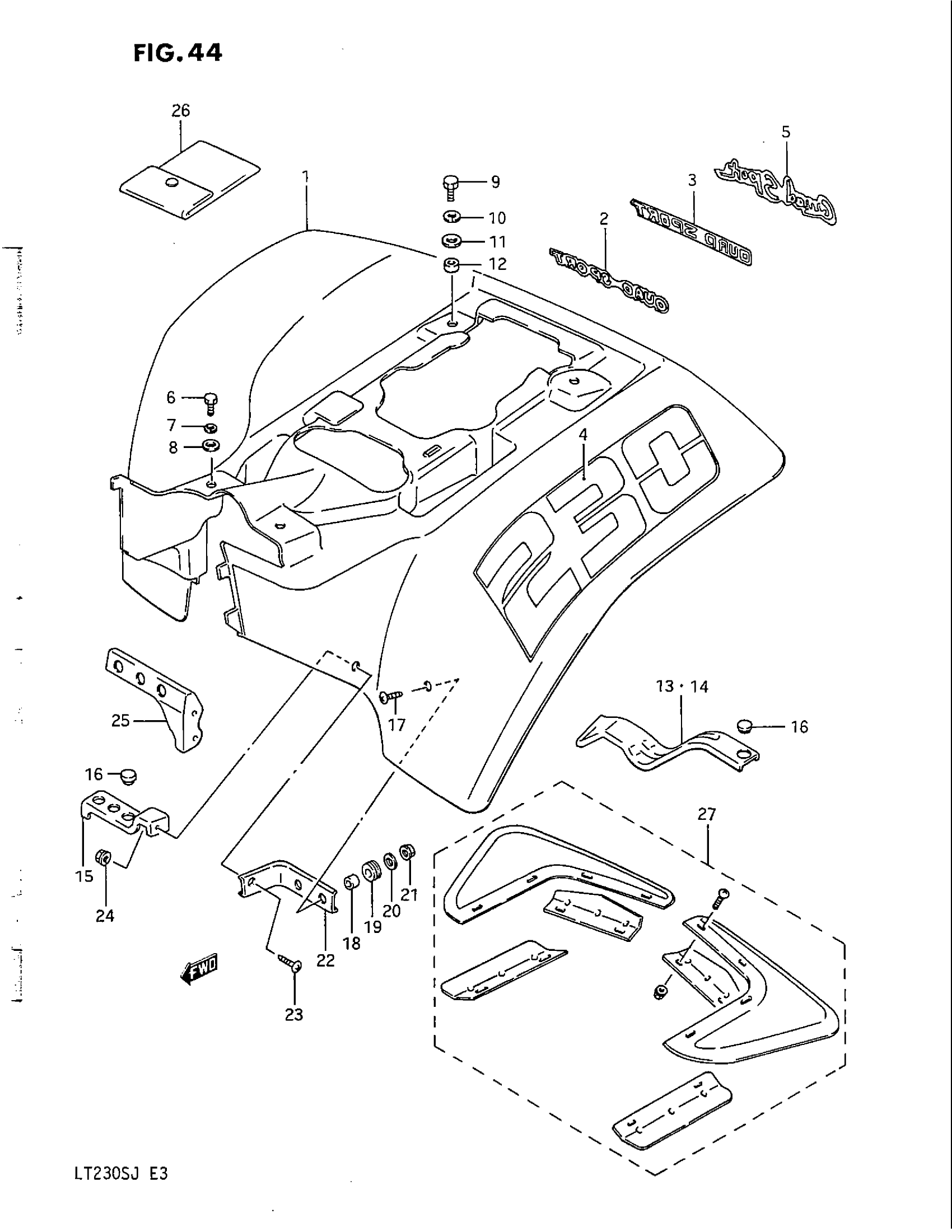

Suzuki LT230S (1988) REAR FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 63111-22A00-00N.

63111-22A01-25G

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 63111-22A00-25G.

63111-22A01-25G

Unavailable

1

FENDER, REAR | MODEL H/J This part replaces 63111-22A00-14L.

63111-22A01-14L

Unavailable

2

EMBLEM (ORANGE/BLACK) | MODEL F

68233-22A01-92R

Unavailable

2

EMBLEM (ORANGE/BLUE) | MODEL G

68233-22A01-8BG

Unavailable

3

EMBLEM (BLUE/WHITE) | MODEL H

68233-22A10-9AH

Unavailable

4

EMBLEM | MODEL J

68171-22A00-96L

Unavailable

5

EMBLEM | MODEL J

68171-22A10-99Y

Unavailable

6

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

7

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

8

WASHER This part replaces 09160-06007.

09160-06084

$1.78

9

BOLT, REAR This part replaces 01107-08207.

01500-08207

$2.53

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

WASHER This part replaces 08322-21088.

08322-01087

$2.13

12

SPACER, REAR This part replaces 09180-08110.

09180-08184

$3.16

13

REINFORCEMENT, REAR RH

63120-22A00

Unavailable

14

REINFORCEMENT, REAR LH

63130-22A00

Unavailable

15

REINFORCEMENT, FRONT LH

63151-22A01

Unavailable

16

CAP (OD:20) This part replaces 09250-12006.

09250-12016

$1.92

17

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

18

SPACER (6.5X9X10.5) This part replaces 09180-06090.

09180-06264

$2.23

19

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

20

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

21

NUT This part replaces 08316-26066.

08316-1006B

$2.50

22

REINFORCEMENT, FRONT LH

63152-22A00

Unavailable

23

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

24

NUT This part replaces 08316-16066.

08316-1006B

$2.50

25

REINFORCEMENT, FRONT RH

63141-22A00

Unavailable

26

BAG,OWNER'S MAN | MODEL H/J This part replaces 94980-19002.

94980-19022

$5.62

27

MUD GUARD SET, REAR FENDER | OPT

63300-22820

Unavailable
