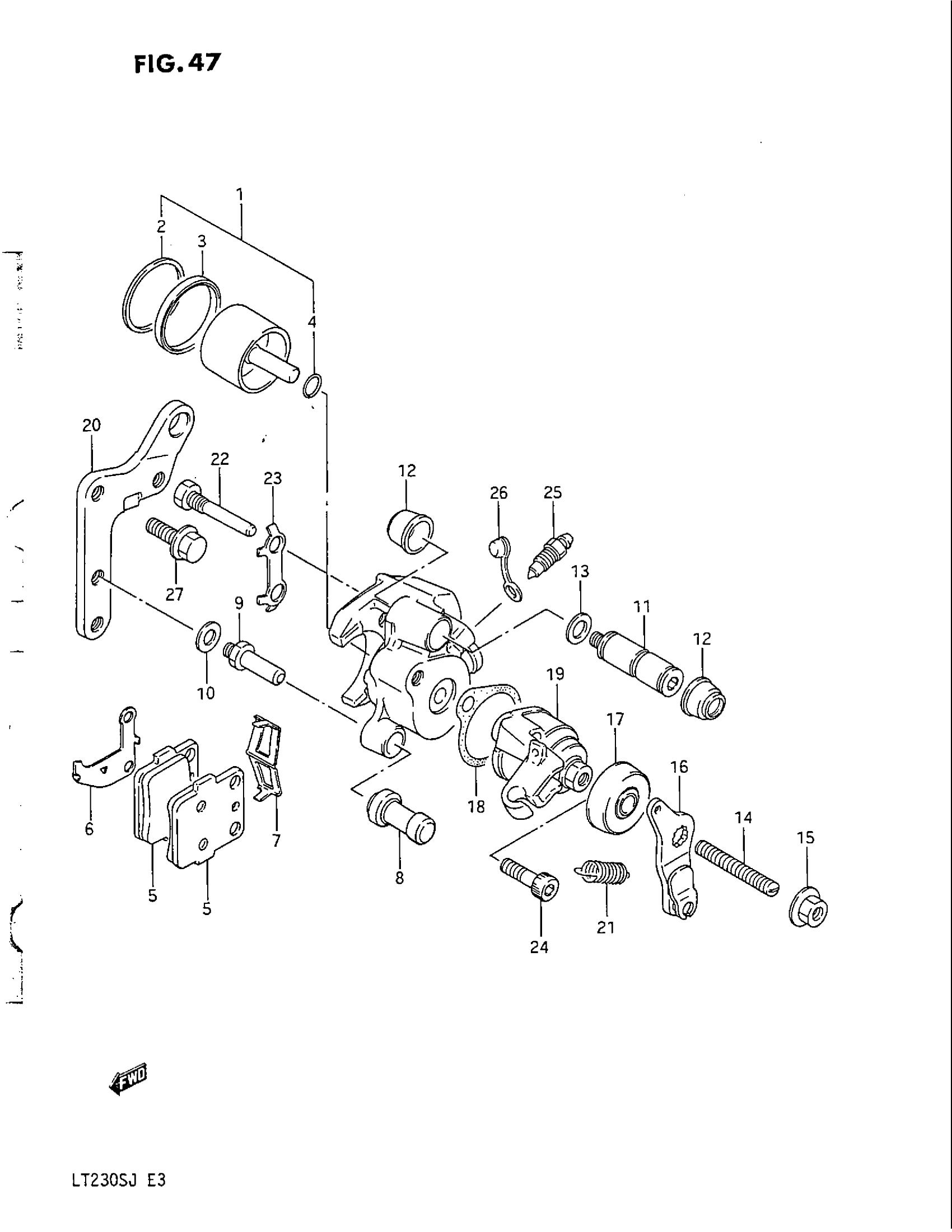

Suzuki LT230S (1988) REAR CALIPER (MODEL F/G) Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 69100-22A00.

69100-22A01

Unavailable

CALIPER ASSY, REAR (SILVER) | MODEL G; Includes Item(s) 1 - 26

69100-22A11

Unavailable

1

PISTON SET This part replaces 69100-19840.

69100-19841

Unavailable

2

DUST SEAL

59108-13A00

Unavailable

3

..SEAL SET,PISTON This part replaces 59107-13A00.

69100-13820

$8.02

4

O RING

69322-19A00

$5.42

5

PAD SET | MODEL F This part replaces 69140-19A00.

69100-19810

$76.22

5

PAD SET | MODEL G This part replaces 69140-19A11.

69100-19821

$78.35

6

SHIM

59371-13A00

$10.58

7

SPRING

59315-13A00

$12.43

8

BOOT

59386-13A00

$7.28

9

BOLT

59382-13A00

$7.24

10

WASHER

59314-13A00

$2.28

11

PIN

69305-19A00

$26.35

12

BOOT

59303-13A00

$5.46

13

SPRING

59306-13A00

$3.57

14

ADJUST BOLT

69327-19A00

$22.82

15

NUT

69323-19A00

$5.52

16

ARM

69325-22A00

Unavailable

17

BOOT

69329-19A00

$8.21

18

PACKING This part replaces 69326-19A00.

69326-19A01

$10.42

19

BRAKE, PARKING (SILVER) | MODEL F This part replaces 69320-22A00.

69320-22A10

Unavailable

19

BRAKE, PARKING (SILVER) | MODEL G

69320-22A10

Unavailable

20

BRACKET

69351-19A00

Unavailable

21

SPRING

69328-19A00

$8.73

22

PIN

59345-13A00

$7.88

23

WASHER

59346-13A00

$4.70

24

BOLT

69321-19A00

$10.17

25

BLEEDER

59121-01A00

$7.99

26

CAP

59122-01A00

$3.97

27

BOLT This part replaces 01517-08306.

01550-0830A

$2.80
