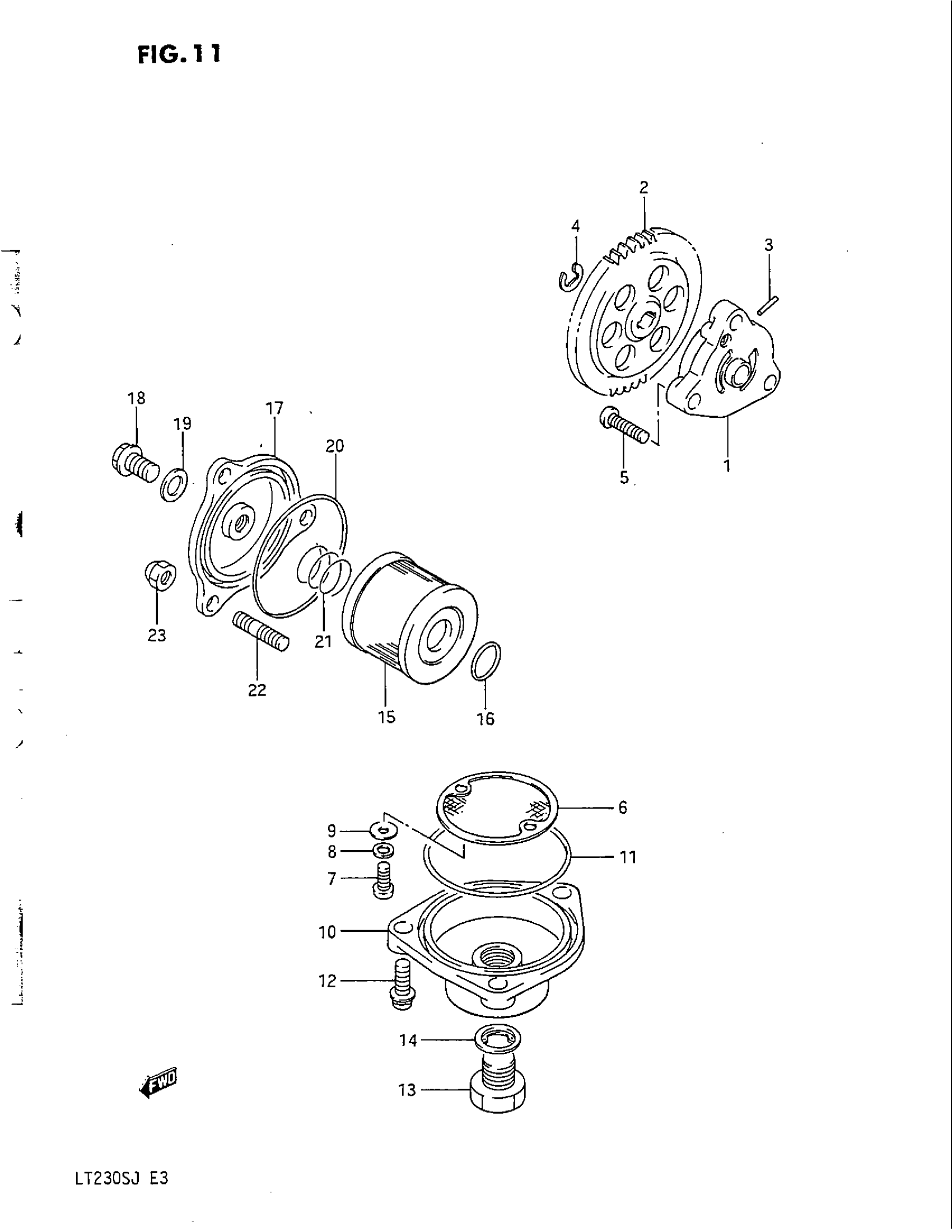

Suzuki LT230S (1988) OIL PUMP Diagram

NO DESCRIPTION AVAILABLE This part replaces 16400-18900.

16400-18901

Unavailable

GEAR, DRIVEN (NT:47)

16331-18900

Unavailable

PIN

09261-02008

$1.65

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49

SCREW This part replaces 02112-06208.

02112-06207

$1.78

STRAINER, ENGINE OIL

16520-05202

$5.80

SCREW This part replaces 02112-05126.

02112-0512A

$1.49

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

$1.84

CAP, OIL STRAINER This part replaces 16523-22A00.

16523-18A00

Unavailable

.O RING (D:2.4,ID:60.5)

09280-60005

$3.18

BOLT

01547-06207

$2.01

PLUG, DRAIN This part replaces 09247-12102.

09247-12104

$2.73

GASKET

09168-12002

$1.59

FILTER ASSY, ENG OIL This part replaces 16510-24501.

16510-25C00

$7.80

O RING (D:1.9,ID:13)

09280-13004

$2.17

CAP

16512-22A00

$25.60

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.32

GASKET (8.2X14X1.6)

09168-08015

$2.79

O RING (D:2.4,ID:52.6)

09280-54001

$3.76

SPRING

09440-18002

$1.49

BOLT,STUD This part replaces 01421-06168.

01421-0616A

$1.91

NUT This part replaces 08313-11065.

08313-1006A

$1.84
