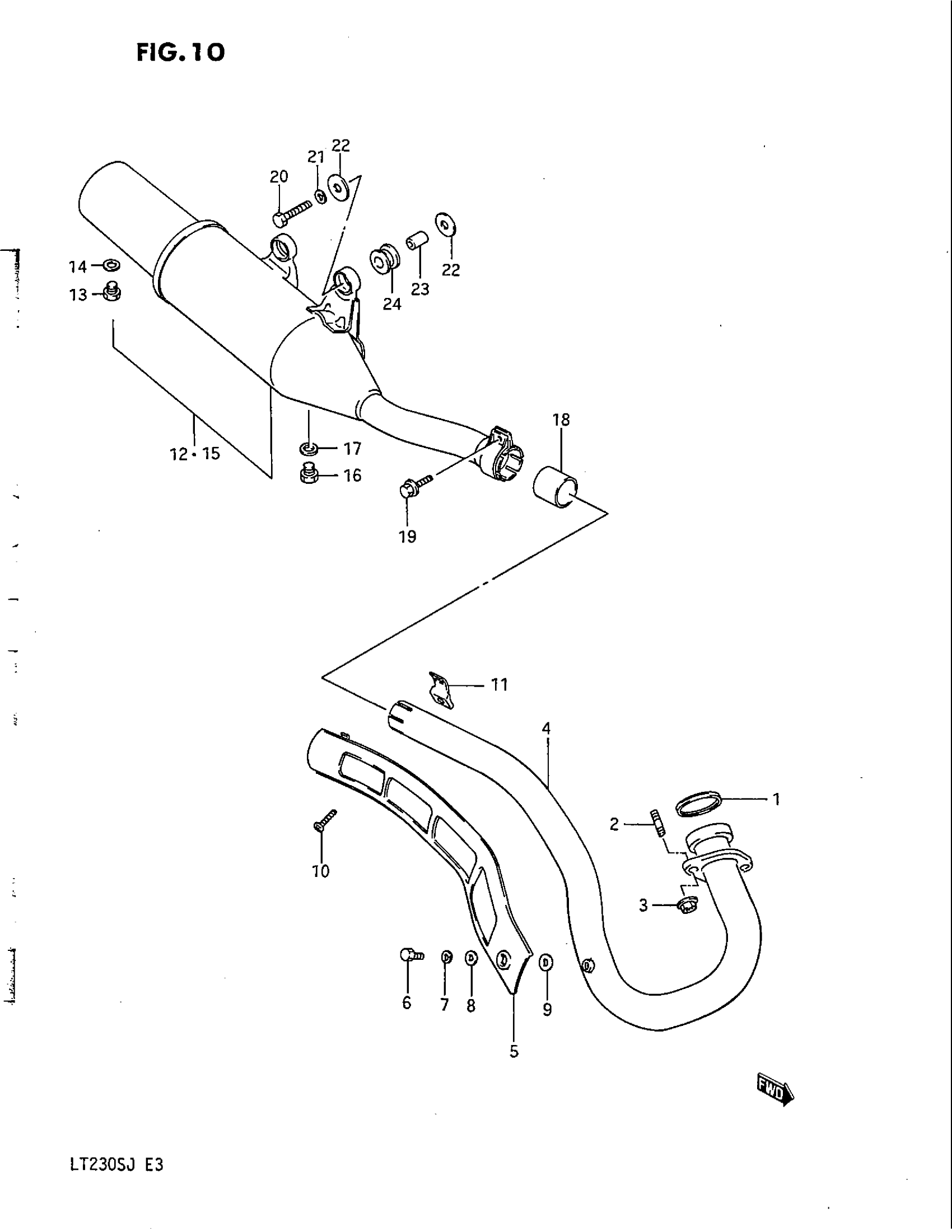

Suzuki LT230S (1988) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE This part replaces 14181-12010.

14181-42A00

$10.93

2

STUD BOLT This part replaces 01421-08205.

01421-0820A

$1.91

3

NUT This part replaces 08361-15085.

08361-1508A

$2.02

4

NO DESCRIPTION AVAILABLE This part replaces 14150-22A00.

14150-22A01

Unavailable

5

COVER, EXHAUST PIPE

14180-22A01

Unavailable

6

BOLT This part replaces 01107-06104.

01500-0610B

$1.81

7

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

8

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

9

GASKET, MUFFLER COVER This part replaces 09168-06020.

09168-06120

$2.92

10

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

11

CLAMP

14185-18A01

Unavailable

12

MUFFLER ASSY | MODEL F/G; Includes Item(s) 13 - 14 This part replaces 14310-22A04.

14310-22A05

Unavailable

13

PLUG, DRAIN

09247-12103

$2.84

14

GASKET

09168-12002

$1.59

15

MUFFLER | MODEL H ~F.NO.104544 This part replaces 14310-35B01.

14310-35B02

Unavailable

15

MUFFLER | MODEL H F.NO.104545~MODEL J

14310-35B02

Unavailable

16

PLUG | MODEL H

09247-12103

$2.84

17

GASKET | MODEL H

09168-12002

$1.59

18

GASKET This part replaces 14773-14201.

14773-14202

$23.17

19

BOLT | MODEL F/GMODEL H ~F.NO.104544 This part replaces 01517-06205.

01550-0620A

$1.97

19

BOLT | MODEL H F.NO.104545~MODEL J This part replaces 01517-08205.

01550-0820A

$2.23

20

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

23

SPACER (8.5X12X18.5) This part replaces 09180-08127.

09180-08195

$3.87

24

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

$7.98
