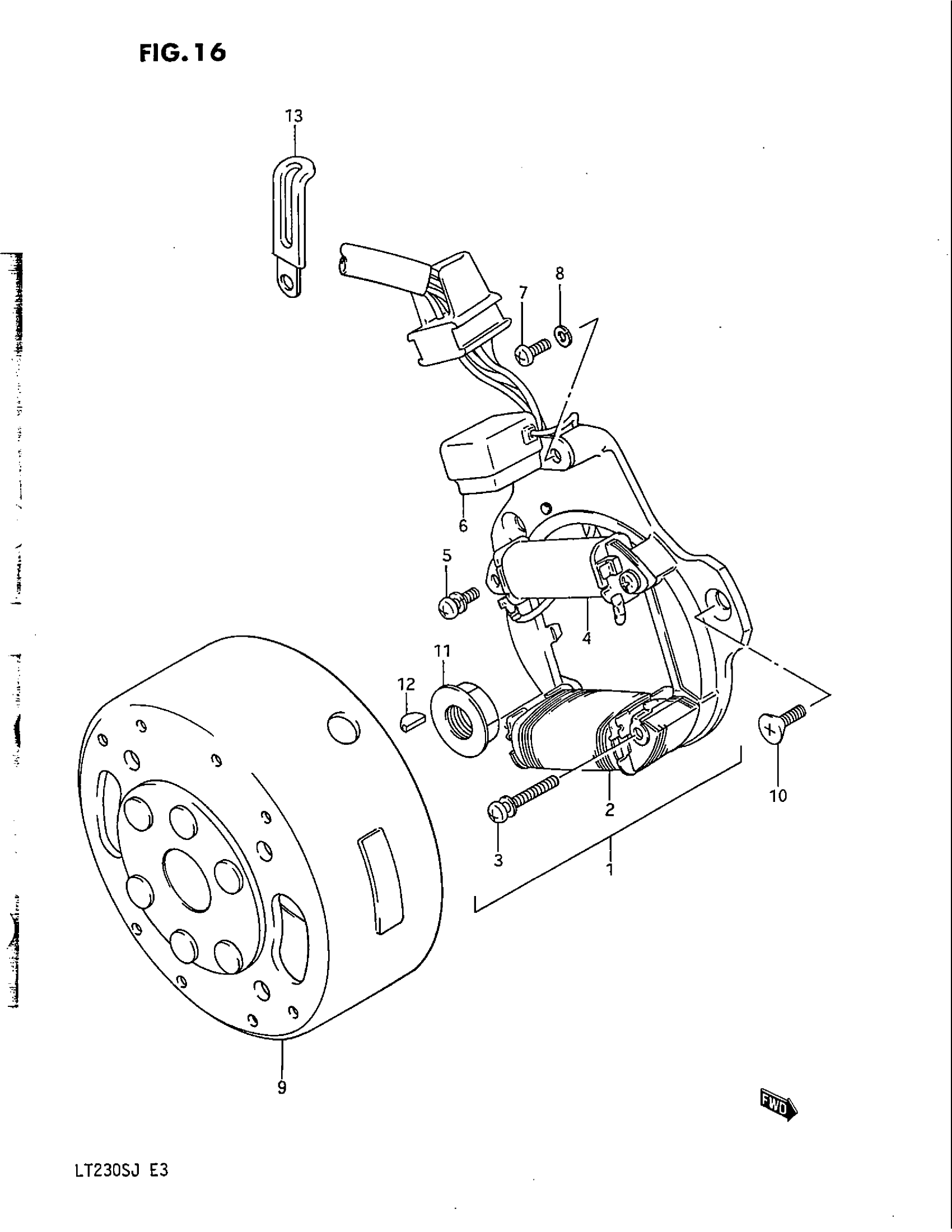

Suzuki LT230S (1988) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | Includes Item(s) 2 - 8 This part replaces 32101-22A00.

32101-22A01

Unavailable

2

COIL, LIGHTING | MODEL F/G This part replaces 32120-22A00.

32120-22A10

Unavailable

2

COIL, LIGHTING | MODEL H/J

32120-22A10

Unavailable

3

SCREW,4X35 This part replaces 32351-39210.

09125-04018-XC0

$2.15

4

COIL, PRIMARY

32140-22A00

Unavailable

5

SCREW This part replaces 32351-22A00.

09125-04011

Unavailable

6

COIL, PICKUP

32150-22A01

$94.47

7

SCREW This part replaces 02112-04108.

02112-04107

$1.55

8

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

9

ROTOR, FLYWHEEL

32102-22A00

Unavailable

10

SCREW

09126-05005

Unavailable

11

NUT This part replaces 09159-10014.

09159-10046-XC0

$2.03

12

KEY

08341-31039

$1.89

13

CLAMP This part replaces 09404-06402.

09404-06039

$1.74
