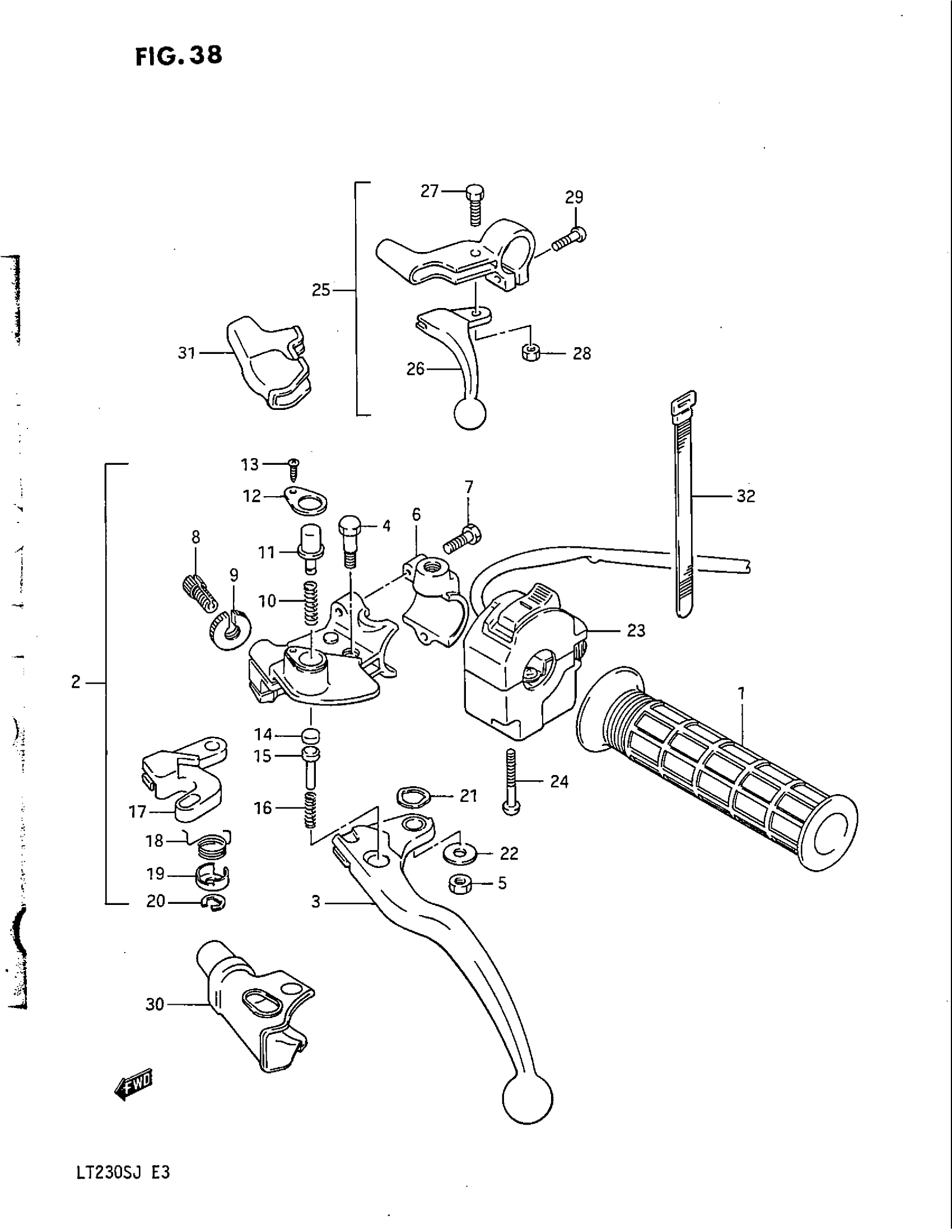

Suzuki LT230S (1988) LEFT SWITCH Diagram

#

Description
Price

1

GRIP (BLACK) This part replaces 57211-22A01.

57211-22A01-291

$11.42

2

LEVER ASSY, CLUTCH & PARKING | Includes Item(s) 3 - 22

57800-19A01

Unavailable

3

LEVER

57620-19A00

Unavailable

4

BOLT This part replaces 57431-33450.

57531-14A00

$7.46

5

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

6

BRACKET

57512-44500

Unavailable

7

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

8

.ADJUSTER, BRAKE CABLE This part replaces 57441-13A00.

57441-26010

$4.48

9

NUT This part replaces 57442-44400.

57442-11010

$2.79

10

SPRING

57817-19A00

Unavailable

11

BUTTON

57811-19A00

Unavailable

12

COVER

57815-19A00

Unavailable

13

SCREW

57619-19A00

$3.78

14

PIECE

57814-19A00

Unavailable

15

PIN

57813-19A00

$5.95

16

SPRING

57818-19A00

$3.65

17

LEVER, PARKING

57812-19A00

Unavailable

18

SPRING, RETURN

57911-19A00

Unavailable

19

COVER, SPRING

57819-19A00

Unavailable

20

E RING This part replaces 08332-11045.

08332-1104A

$1.49

21

WASHER

08221-08144

$2.23

22

WASHER (6.5X15X1.6) This part replaces 57912-19A00.

09160-06128

$1.99

23

SWITCH ASSY, LH | MODEL F/G

37400-19A01

Unavailable

23

SWITCH ASSY, LH | MODEL H/J; Includes Item(s) 24

37400-22A10

Unavailable

24

SCREW

02112-05357

$1.49

25

LEVER ASSY,DECO | Includes Item(s) 26 - 29 This part replaces 58700-38200.

58700-38210

$152.93

26

LEVER

58731-38200

$49.42

27

SCREW This part replaces 57431-01011.

57431-01012

$5.24

28

NUT

57633-38200

Unavailable

29

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

30

COVER, CLUTCH

57541-19A00

Unavailable

31

COVER, DECOMP

57342-37101

$11.95

32

BAND

09407-12402

$3.04
