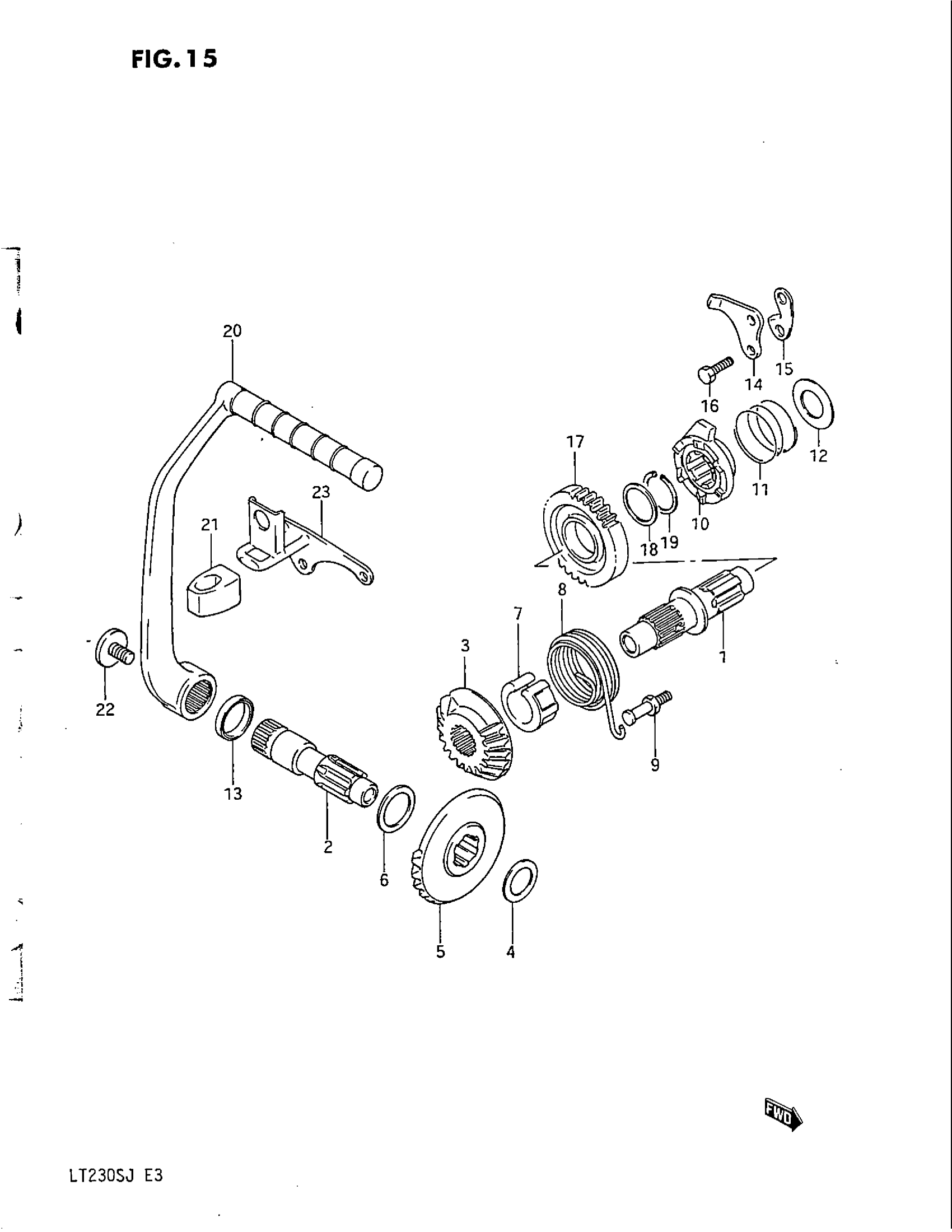

Suzuki LT230S (1988) KICK STARTER Diagram

#

Description
Price

1

SHAFT, NO.1

26211-22A02

Unavailable

2

SHAFT, NO.2

26216-22A01

Unavailable

3

GEAR, KICK STARTER NO.1 | NT:21

26246-22A01

Unavailable

4

WASHER, SUB T/M IDLE, LH This part replaces 08211-15261.

09181-15195

$2.57

5

GEAR, KICK STARTER NO.2 | NT:25

26247-22A01

Unavailable

6

SHIM (20X28X1) This part replaces 08211-20281.

09181-20167

$2.62

7

GUIDE

26221-22A00

$7.46

8

SPRING

09448-48005

Unavailable

9

BOLT, KICK SHAFT SPRING

26237-14500

Unavailable

10

STARTER, KICK

26231-22A10

$63.88

11

SPRING This part replaces 09440-32007.

09440-33002

Unavailable

12

PLATE

08211-17341

$2.50

13

OIL SEAL (20X27X6)

09283-20044

$6.02

14

GUIDE

26232-22A02

Unavailable

15

STOPPER

26233-22A01

Unavailable

16

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

17

GEAR, KICK STARTER DRIVE | ~E.NO.123591SEE NOTE

26240-22A00

Unavailable

17

GEAR, KICK STARTER DRIVE | E.NO.123592~

26240-22A01

Unavailable

18

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

19

CIRCLIP

09380-22006

$3.10

20

LEVER ASSY, KICK STARTER

26311-22A02

Unavailable

21

COVER

26352-22A00

$7.20

22

BOLT (8X14) This part replaces 09106-08050.

09106-08102

$4.64

23

STOPPER, LEVER | RIVE GEAR UP TOSE THE FOLLOWING PARTSIVEN) 1PCER DRIVE) 1PC.1PC.

26360-22A00

Unavailable
