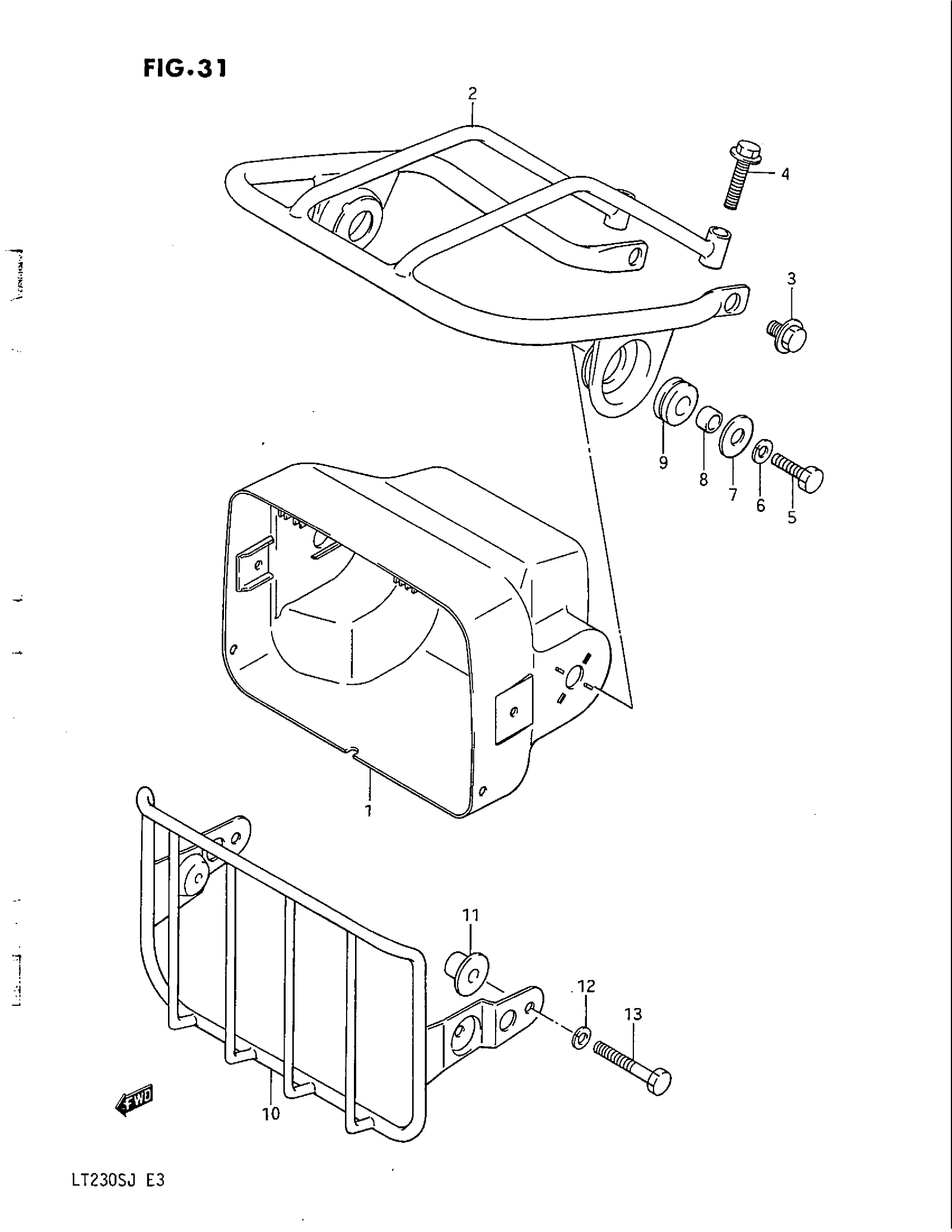

Suzuki LT230S (1988) HEADLAMP HOUSING (MODEL F/G) Diagram

#

Description
Price

1

HOUSING, HEADLAMP (BLACK)

51810-18A01-291

Unavailable

2

BRACKET, HEADLAMP

51530-22A00

Unavailable

3

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.32

4

BOLT This part replaces 01517-08304.

01550-0830A

$3.04

5

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

6

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

7

WASHER This part replaces 09160-06063.

09160-06054

$1.62

8

SPACER This part replaces 09180-06027.

09180-06258

$1.81

9

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

10

GUARD SET, HEADLAMP | OPT; Includes Item(s) 11 - 13

48500-22820

Unavailable

11

SPACER | OPT

48570-22A00

Unavailable

12

LOCK WASHER | OPT This part replaces 08321-21067.

08321-01067

$2.13

13

BOLT | OPT This part replaces 01107-06408.

01500-0640B

$2.62
