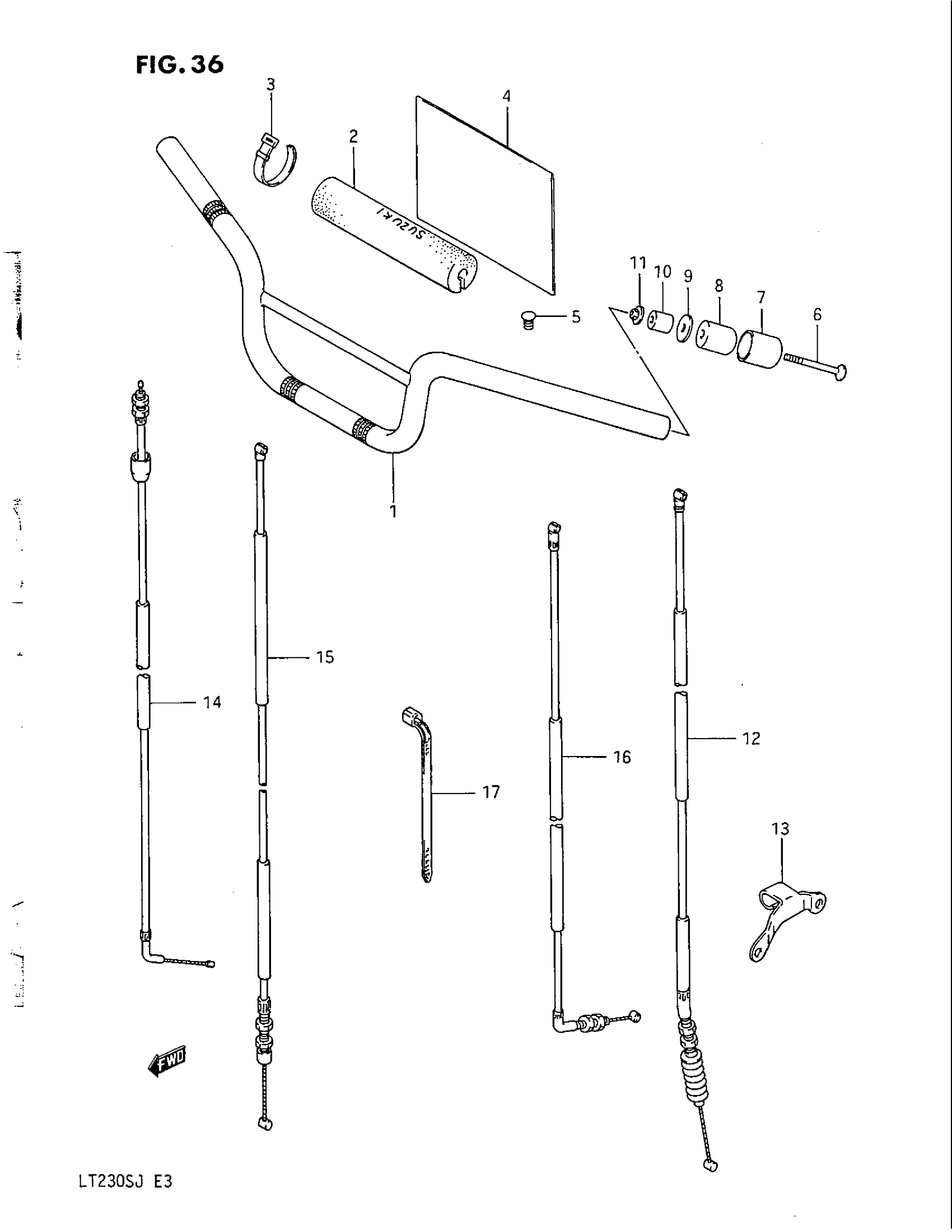

Suzuki LT230S (1988) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

HANDLEBAR (BLACK) | MODEL F/G

56110-22A00-291

Unavailable

1

HANDLEBAR (BLACK) | MODEL H/J

56110-22A10-291

Unavailable

2

PAD, CROSS BAR | MODEL F

56172-24500

$16.35

2

PAD, CROSS | MODEL G This part replaces 56172-24510.

56172-24500

$16.35

2

PAD, CROSS BAR | MODEL H/J

56172-22A00

Unavailable

3

BAND, CROSS BAR | MODEL F

09407-18401

$2.07

3

BAND, CROSS BAR | MODEL H/J

09407-14407

$3.57

4

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 56180-24500-54G.

56180-03420-4UZ

Unavailable

5

CAP This part replaces 09250-09001.

09250-09008

$1.54

6

SCREW This part replaces 02132-06655.

02122-0665B

$2.76

7

CAP This part replaces 56274-05350.

56274-31300

Unavailable

8

BALANCER

56271-49400

Unavailable

9

SPACER This part replaces 56275-34400.

56275-34401

$4.02

10

EXPANDER

56272-04700

$5.40

11

NUT

09159-06024

$2.11

12

CABLE,CLUTCH This part replaces 58200-22A01.

58200-22A02

Unavailable

13

STOPPER

58634-22A00

Unavailable

14

CABLE,THROTTLE This part replaces 58300-22A00.

58300-22X00

Unavailable

15

CABLE, REAR BRAKE

58510-22A00

Unavailable

16

CABLE ASSY, DECOMP | MODEL F This part replaces 58900-22A00.

58900-22A01

Unavailable

16

CABLE ASSY, DECOMP | MODEL G/H/J

58900-22A01

Unavailable

17

CLAMP (L:125)

09407-14403

$2.26

17

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

17

CLAMP (L:165)

09407-18402

$2.19
