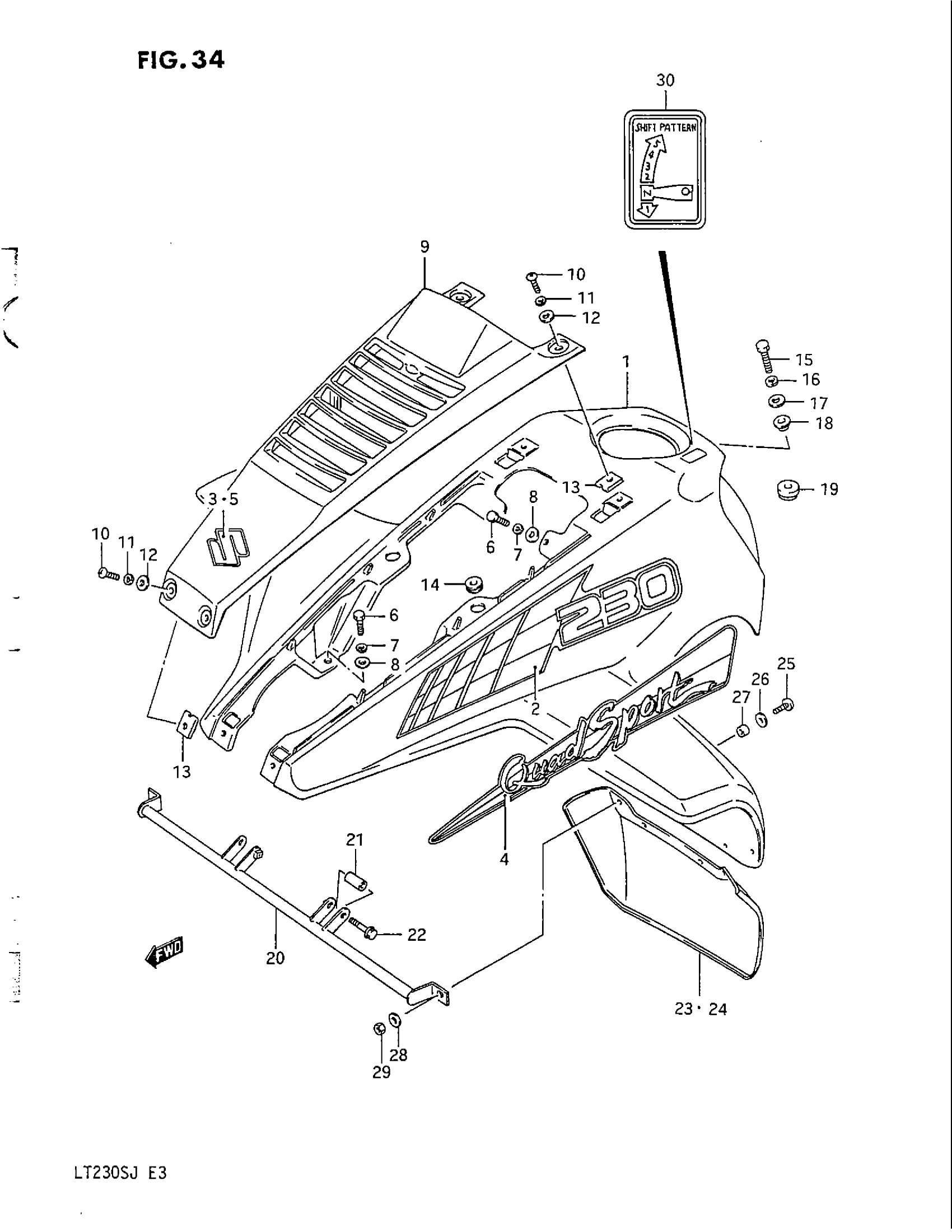

Suzuki LT230S (1988) FRONT FENDER (MODEL H/J) Diagram

#

Description
Price

1

FENDER, FRONT (WHITE)

53111-22A01-14L

Unavailable

2

TAPE SET | MODEL H

68150-22A20-7DH

Unavailable

3

EMBLEM | MODEL H

68131-22A00-60D

Unavailable

4

TAPE SET | MODEL J

68150-22A30-7DH

Unavailable

5

EMBLEM | MODEL J

68131-22A00-71Z

Unavailable

6

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

7

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

8

WASHER This part replaces 09160-06007.

09160-06084

$1.78

9

FENDER, FRONT CENTER (BLACK) | MODEL H

53118-22A00-291

Unavailable

9

FENDER, FRONT CENTER (BLUE) | MODEL J

53118-22A00-19F

Unavailable

10

SCREW This part replaces 02112-06164.

02112-0616A

$1.49

11

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

12

WASHER This part replaces 09160-06007.

09160-06084

$1.78

13

NUT

53141-19A00

$4.34

14

CUSHION

09320-08018

$3.04

15

BOLT This part replaces 01107-06408.

01500-0640B

$2.62

16

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

17

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

18

CUSHION

09320-10012

Unavailable

19

CUSHION

09320-20004

$2.92

20

BRACE, FRONT FENDER

53210-22A01

Unavailable

21

SPACER (6.5X10X20) This part replaces 09180-06031.

09180-06296

$2.45

22

BOLT This part replaces 01517-06354.

01550-0635A

$2.32

23

MUD FLAP, RH

53311-22A00

Unavailable

24

MUD FLAP, LH

53312-22A00

Unavailable

25

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

26

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

27

SPACER This part replaces 09180-06032.

09180-06246

$2.12

28

WASHER This part replaces 09160-06007.

09160-06084

$1.78

29

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

30

LABEL, GEAR SHIFT

68392-22A00

Unavailable
