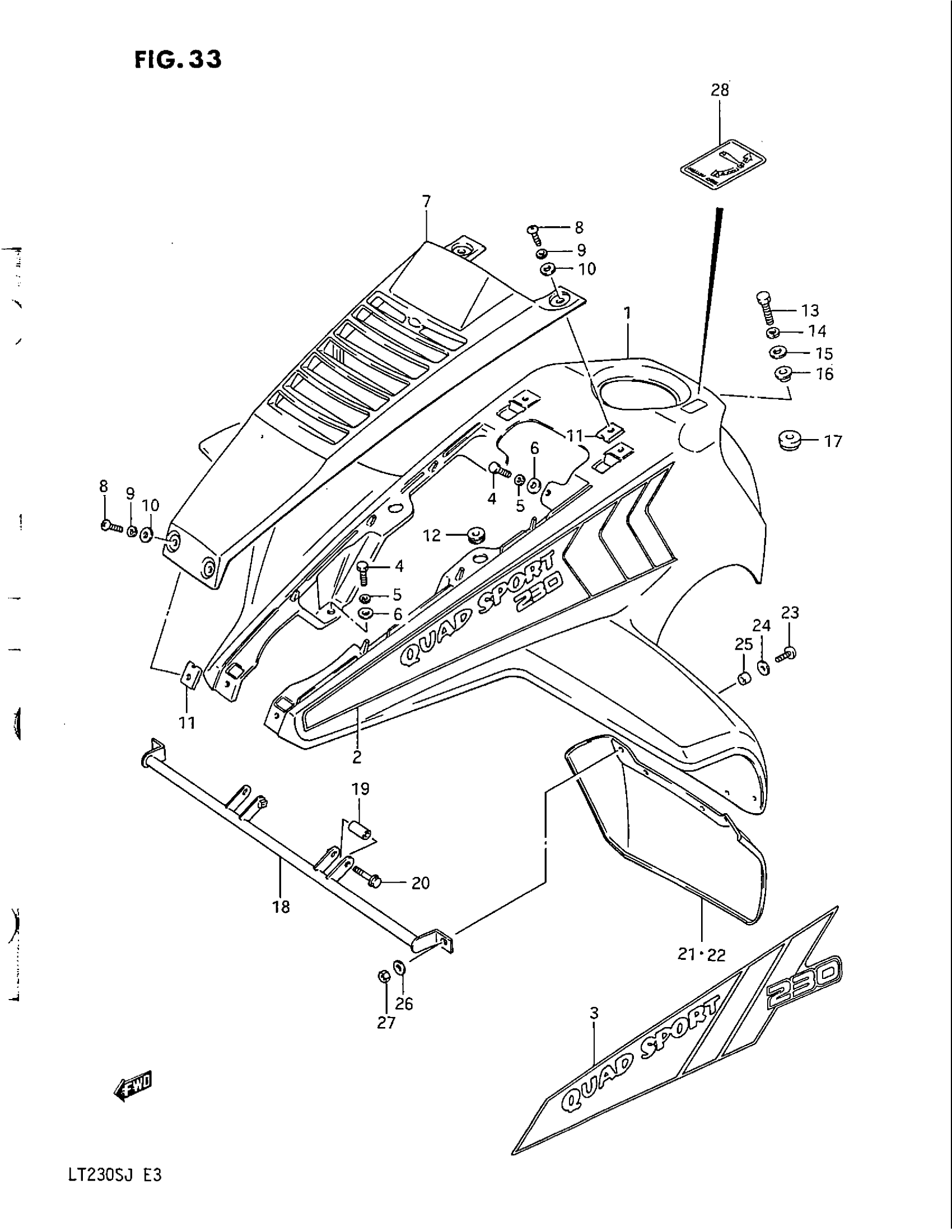

Suzuki LT230S (1988) FRONT FENDER (MODEL F/G) Diagram

#

Description
Price

1

FENDER, FRONT (WHITE) | MODEL F This part replaces 53111-22A00-00N.

53111-22A01-14L

Unavailable

1

FENDER, FRONT (ORANGE) | MODEL G This part replaces 53111-22A00-25G.

53111-22A01-25G

Unavailable

2

TAPE SET | MODEL F

68150-22A00-7PZ

Unavailable

3

TAPE SET | MODEL G

68150-22A10-7ZG

Unavailable

4

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

5

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

6

WASHER This part replaces 09160-06007.

09160-06084

$1.78

7

FENDER, FRONT CENTER (BLACK)

53118-22A00-291

Unavailable

8

SCREW This part replaces 02112-06164.

02112-0616A

$1.49

9

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

10

WASHER This part replaces 09160-06007.

09160-06084

$1.78

11

NUT

53141-19A00

$4.34

12

CUSHION

09320-08018

$3.04

13

BOLT This part replaces 01107-06408.

01500-0640B

$2.62

14

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

15

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

16

CUSHION

09320-10012

Unavailable

17

CUSHION

09320-20004

$2.92

18

BRACE, FRONT FENDER | MODEL F This part replaces 53210-22A00.

53210-22A01

Unavailable

18

BRACE, FRONT FENDER | MODEL G

53210-22A01

Unavailable

19

SPACER (6.5X10X20) This part replaces 09180-06031.

09180-06296

$2.45

20

BOLT This part replaces 01517-06354.

01550-0635A

$2.32

21

MUD FLAP, RH

53311-22A00

Unavailable

22

MUD FLAP, LH

53312-22A00

Unavailable

23

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

24

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

25

SPACER This part replaces 09180-06032.

09180-06246

$2.12

26

WASHER This part replaces 09160-06006.

09160-06084

$1.78

27

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

28

LABEL, GEAR SHIFT

68392-22A00

Unavailable
