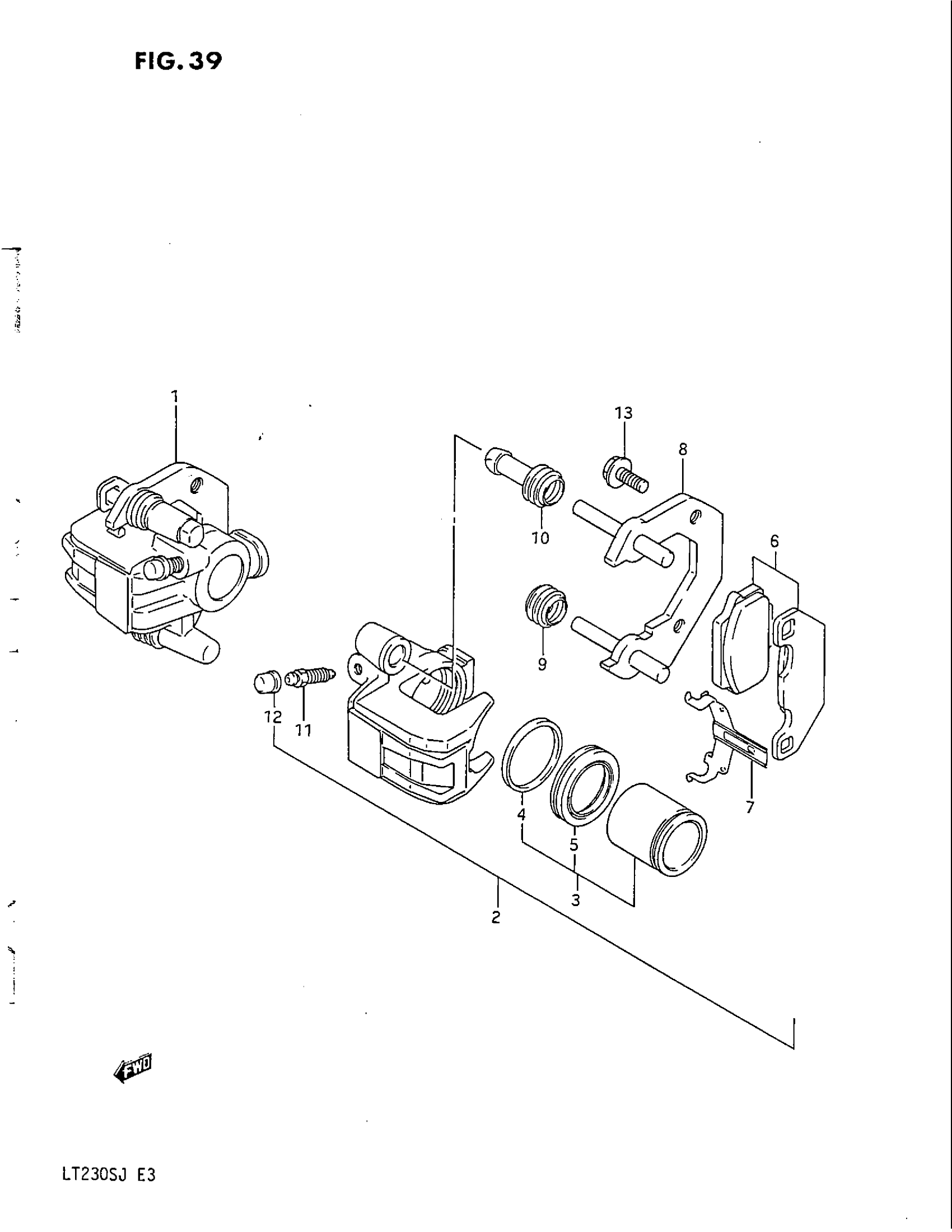

Suzuki LT230S (1988) FRONT CALIPERS Diagram

#

Description
Price

1

CALIPER ASSY, RH (WHITE) This part replaces 59100-19A00.

59100-01C03

Unavailable

2

CALIPER ASSY, LH (WHITE) | Includes Item(s) 3 - 12 This part replaces 59300-19A00.

59300-01C03

Unavailable

3

PISTON SET This part replaces 59300-03810.

59300-02811

$34.88

4

SEAL,PISTON This part replaces 59107-03A00.

59307-35F00

$8.73

5

BOOT

59308-03A00

Unavailable

6

PAD SET This part replaces 59300-03840.

59100-43810

Unavailable

7

SPRING

59315-36500

$9.38

8

CARRIER, RH This part replaces 59150-19A00.

59150-19A01

Unavailable

8

CARRIER, LH This part replaces 59350-19A00.

59350-19A01

$116.65

9

.BOOT, AXLE

59312-36500

$5.07

10

.INSULATOR, AXLE

59313-36500

$5.99

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

NO DESCRIPTION AVAILABLE This part replaces 09103-08148.

09103-08148-XC0

Unavailable
