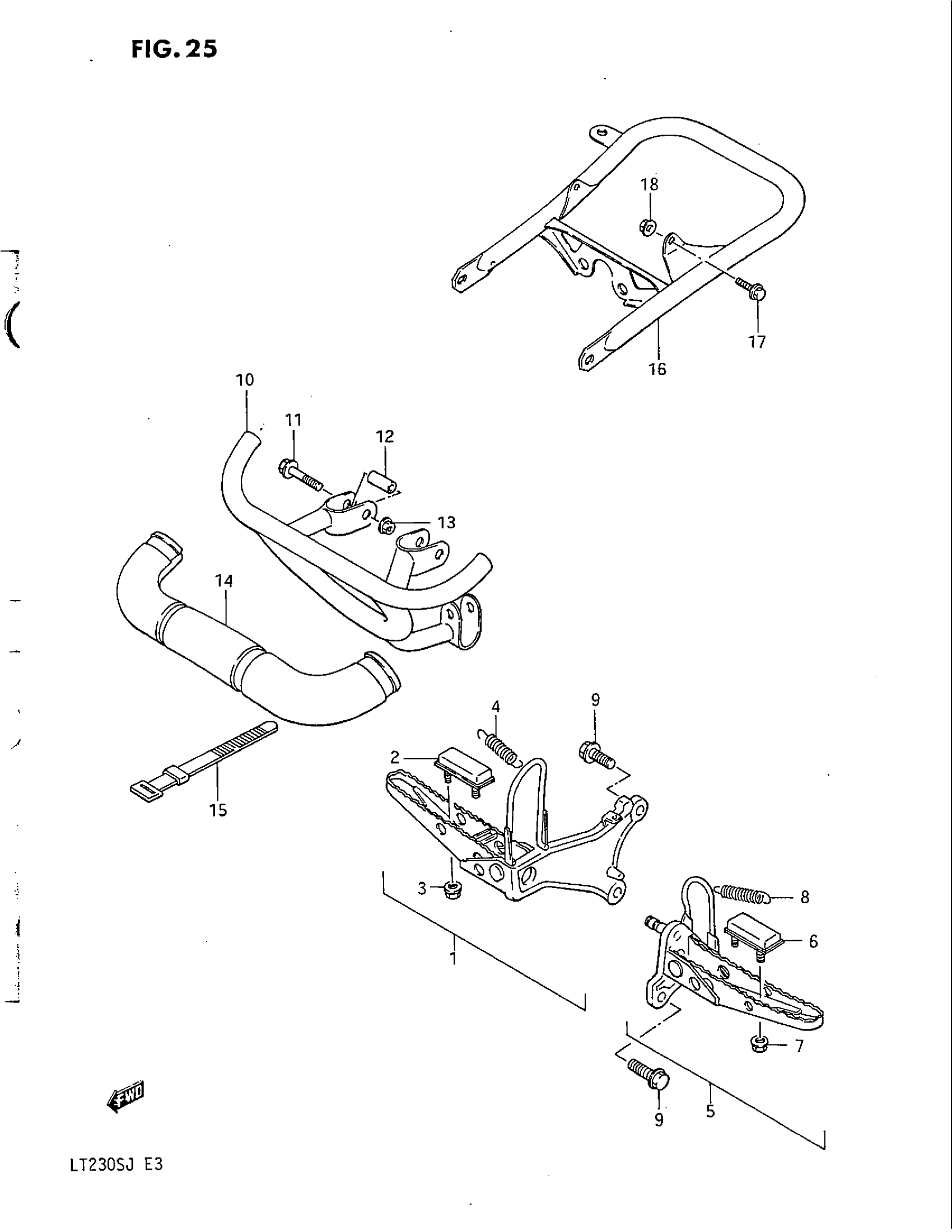

Suzuki LT230S (1988) FOOTREST Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL F/G This part replaces 43510-22A02.

43510-22A02-019

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H/J; Includes Item(s) 2 - 4 This part replaces 43510-22A02-19F.

43510-22A02-019

Unavailable

2

CUSHION

43550-22A00

Unavailable

3

NUT This part replaces 08319-31065.

08319-3106A

$2.03

4

SPRING

09443-14025

$3.29

5

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 43520-22A02.

43520-22A05-019

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 43520-22A04.

43520-22A05-019

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL H/J; Includes Item(s) 6 - 8 This part replaces 43520-22A04-19F.

43520-22A05-019

Unavailable

6

CUSHION

43550-22A00

Unavailable

7

NUT

08319-31067

$2.03

8

SPRING

09443-14025

$3.29

9

BOLT (10X20) | MODEL F/G This part replaces 01517-10255.

01550-1025A

$3.05

9

BOLT (10X20) | MODEL H/J This part replaces 01517-10258.

01550-1025A

$3.05

10

GRIP, FRONT | MODEL F/G

43990-22A00

Unavailable

10

GRIP, FRONT | MODEL H/J This part replaces 43990-22A10.

43990-22A00

Unavailable

11

BOLT | MODEL F/G This part replaces 01517-08455.

01550-0845A

$3.14

11

BOLT, MUF SPRT,RR | MODEL H/J This part replaces 01517-08457.

01550-08457

$4.00

12

SPACER (8.2X12.5X23.5) | MODEL F/G This part replaces 09180-08129.

09180-08227

$2.06

12

SPACER (8.2X12.5X23.5) | MODEL H/J This part replaces 09180-08057.

09180-08227

$2.06

13

NUT | MODEL F/G This part replaces 08319-31085.

08319-3108A

$2.32

13

NUT | MODEL H/J

08319-31087

$2.32

14

PAD This part replaces 43998-19A00.

43998-19A10

Unavailable

15

CLAMP

09407-18401

$2.07

16

GRIP, REAR

43980-22A00

Unavailable

17

BOLT, REAR LH This part replaces 01517-08208.

01550-08207

$2.69

18

NUT

08319-31087

$2.32
