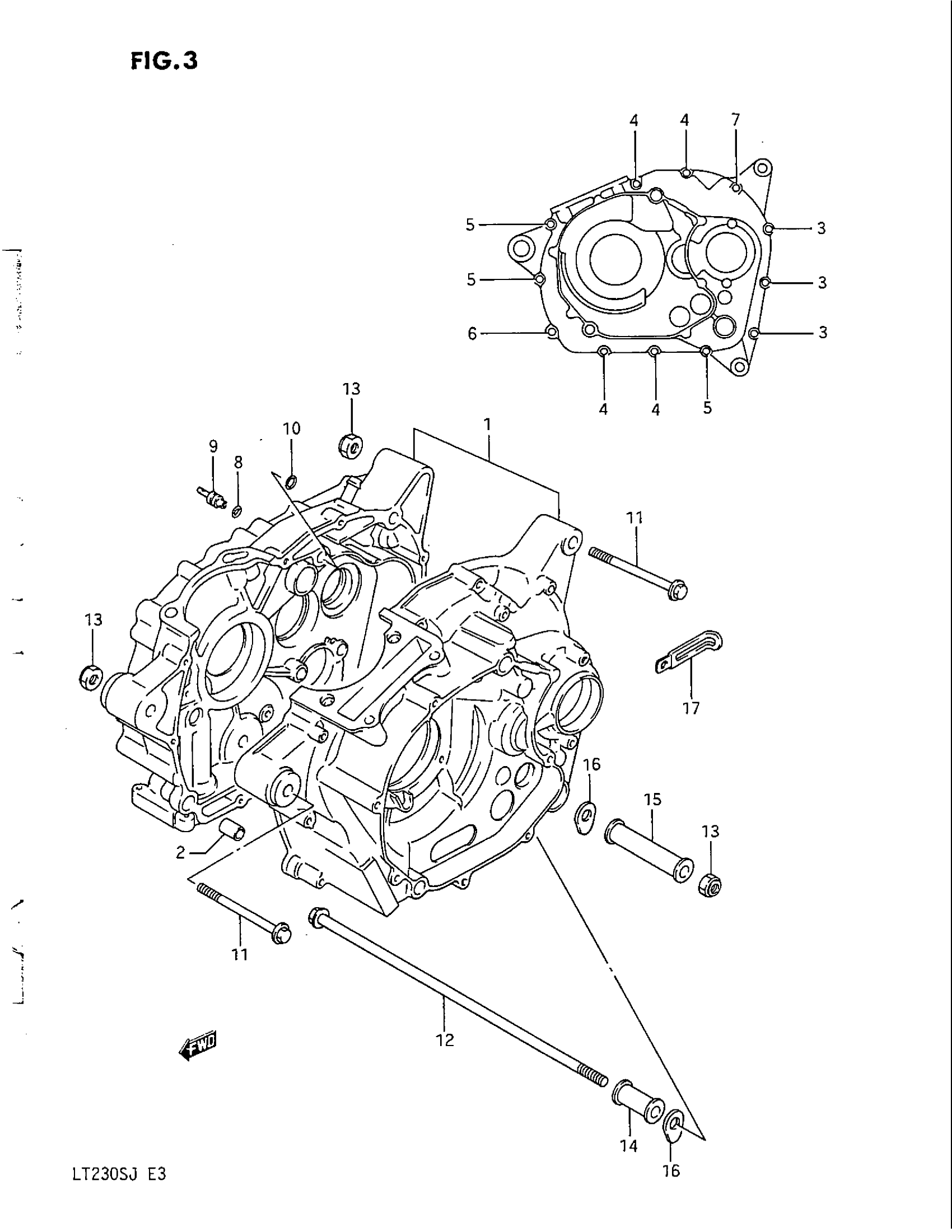

Suzuki LT230S (1988) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL F This part replaces 11301-22821.

11301-22823

Unavailable

1

CRANKCASE SET | MODEL G/H/J; Includes Item(s) 2 - 10 This part replaces 11301-22822.

11301-22823

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT This part replaces 01547-06304.

01547-06307

$2.03

4

BOLT This part replaces 01547-06404.

01547-0640B

$2.75

5

BOLT This part replaces 01547-06505.

01547-0650B

$2.75

6

BOLT This part replaces 01547-06605.

01547-0660B

$3.18

7

BOLT This part replaces 01547-06705.

01547-0670B

$3.29

8

O RING, OIL GALLERY JET

09280-04004

$1.91

9

JET, OIL GALLERY

09493-32006

$16.87

10

O RING (D:1.9,ID:9.8) This part replaces 09280-10010.

09280-10016

$3.37

11

BOLT (10X100) | MODEL F/G

09103-10110

$8.43

11

BOLT, LH OUTER (10X100) | MODEL H/J This part replaces 09103-10016.

09103-10110

$8.43

12

BOLT (10X315) | MODEL F/G This part replaces 09103-10111.

09103-10177

Unavailable

12

BOLT (10X315) | MODEL H/J

09103-10177

Unavailable

13

NUT | MODEL F/G

09159-10047

$9.41

13

NUT | MODEL H/J

09159-10067

$6.11

14

SPACER (L:40)

11610-20A00

Unavailable

15

SPACER (L:80)

11610-22A00

Unavailable

16

SHIM (T:0.3)

09181-10012

Unavailable

16

SHIM (T:0.5)

09181-10013

Unavailable

17

CLAMP | MODEL F/GMODEL H/J This part replaces 09404-06402.

09404-06039

$1.74

17

CLAMP(L:80) This part replaces 09404-06418.

09404-06036

$1.74
