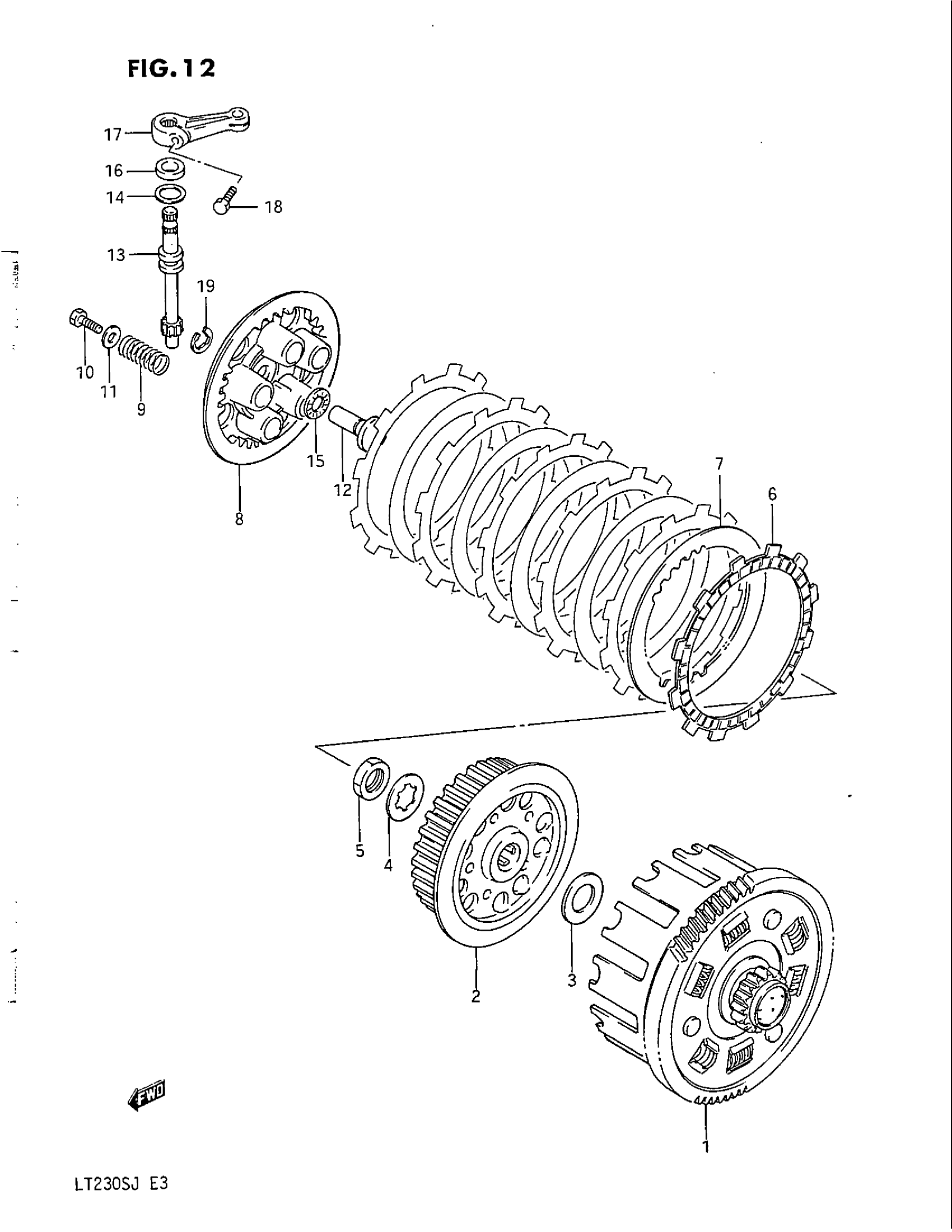

Suzuki LT230S (1988) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:14) | ~E.NO.123591SEE NOTE This part replaces 21200-22A02.

21200-22A03

Unavailable

1

GEAR, PRIMARY DRIVEN (NT:14) | E.NO.123592~

21200-22A03

Unavailable

2

HUB, SLEEVE | ~E.NO.104360,->21410-22A03 This part replaces 21410-22A02.

21410-22A03

Unavailable

2

HUB, SLEEVE | E.NO.104361~

21410-22A03

Unavailable

3

THRUST WASHER

08211-17323

$3.15

4

WASHER

09167-17002

$1.91

5

NUT This part replaces 09140-16014.

09140-16005

$3.75

6

PLATE, DRIVE | ~E.NO.104360 This part replaces 21441-22A00.

21441-22A01

$14.73

6

PLATE, CLUTCH DRIVE (T:3.0) | E.NO.104361~ This part replaces 21441-19A00.

21441-25C01

$20.77

7

PLATE, DRIVEN (T:2.0) | ~E.NO.104360

21451-36200

$7.58

7

PLATE, CLUTCH DRIVEN (T:1.6) | E.NO.104361~

21451-19A00

$7.58

8

PLATE, PRESSURE This part replaces 21462-20400.

21462-06C00

$27.28

9

SPRING

09440-15014

$3.37

10

BOLT

09100-05002

$1.49

11

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

12

RACK This part replaces 23165-28300.

23165-46000

$22.21

13

PINION

23261-41301

$43.68

14

WASHER (12.5X17X1) This part replaces 09160-12035.

09160-12086

$2.15

15

BEARING

09263-10002

$10.19

16

OIL SEAL (10X17X5)

09285-10004

$3.37

17

ARM,CLUTCH RELE This part replaces 23271-22A00.

23271-03D00

Unavailable

18

BOLT This part replaces 01107-06207.

01500-06207

$2.28

19

.E-RING | MODEL G/H/J GEAR UP TO E.NO.123591,ING PARTS AT THE SAME TIME.RIVEN) 1PC.TER DRIVE) 1PC.) 1PC. This part replaces 08332-11088.

08332-1108A

$1.78
