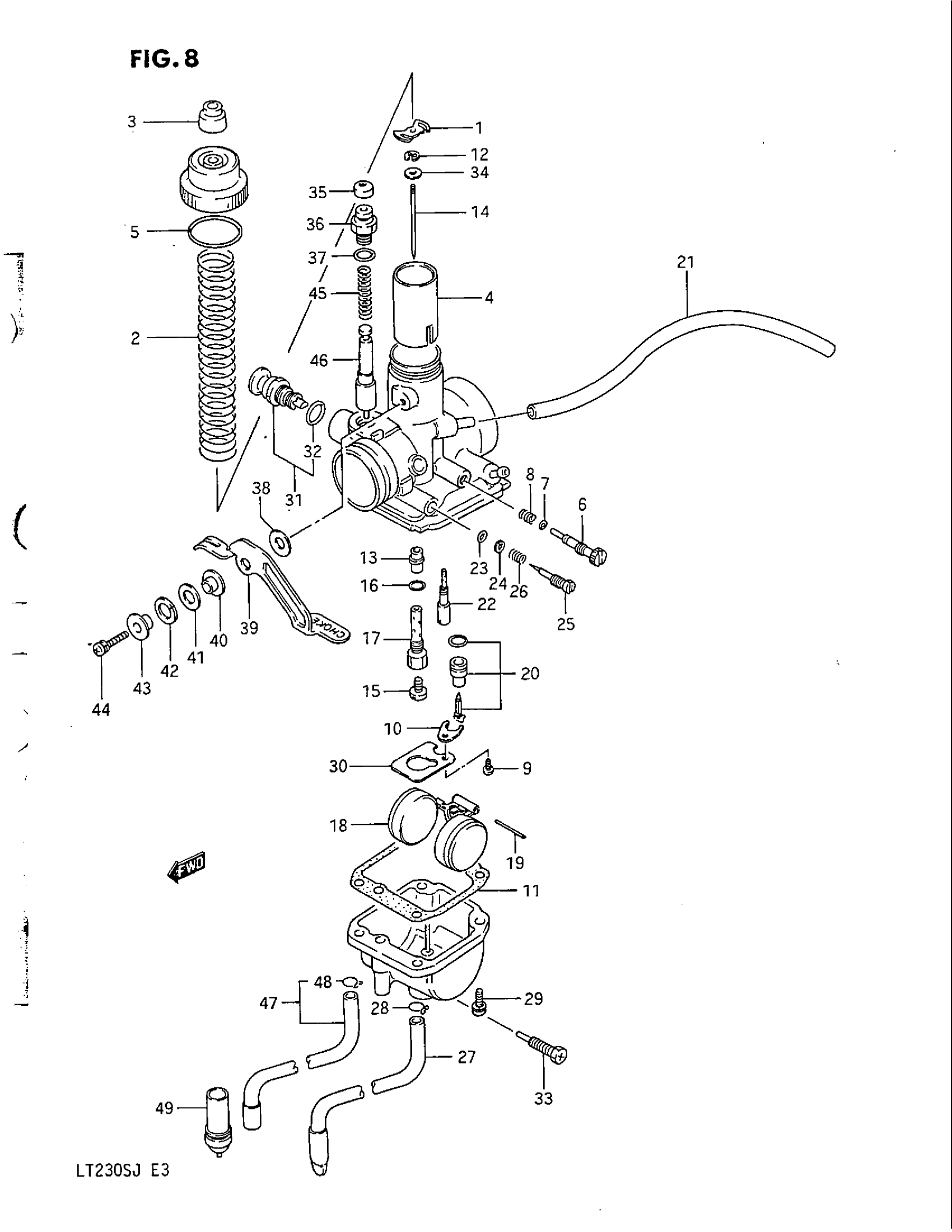

Suzuki LT230S (1988) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | MODEL F/G This part replaces 13200-22A00.

13200-22A10

Unavailable

CARBURETOR ASSY | MODEL H/J; Includes Item(s) 1 - 49

13200-22A10

Unavailable

1

SPRING, SEAT

13581-09210

$6.55

2

SPRING, THROTTLE VALVE

13573-22A00

Unavailable

3

.CAP This part replaces 13681-04010.

13681-04011

$4.93

4

VALVE, THROTTLE

13551-22A00

$29.78

5

O RING This part replaces 13246-22A00.

13246-22A01

Unavailable

6

SCREW | MODEL F/G This part replaces 13267-18910.

13267-24500

$10.55

6

ADJUSTER | MODEL H/J

13267-24500

$10.55

7

O RING

13295-33010

$4.48

8

SPRING

13268-35010

$4.48

9

SCREW This part replaces 02112-03066.

02112-0306B

$1.59

10

PLATE

13373-46710

$6.17

11

GASKET

13251-05320

$7.69

12

E RING

13394-10010

$5.45

13

JET, NEEDLE (O-0)

09494-00492

Unavailable

14

NEEDLE, JET (SHN23-3)

13383-22A00

Unavailable

15

JET, MAIN (112.5)

09491-22015

$9.69

16

.O RING This part replaces 13246-43010.

13246-43011

$4.34

17

PIPE, BLEEDER

13385-47030

Unavailable

18

FLOAT

13252-22A00

$36.72

19

.PIN, FLOAT

13254-01010

$3.62

20

VALVE ASSY, NEEDLE

13370-22A00

Unavailable

21

HOSE,5X10X600 This part replaces 13684-22A00.

44421-13ER0

$10.06

22

JET, PILOT (20)

09492-20009

$14.85

23

O-RING This part replaces 13278-44080.

13295-29901

$4.34

24

WASHER This part replaces 13277-44080.

13291-29900

$1.98

25

SCREW, PILOT (2 7/8) This part replaces 13279-47080.

13279-47070

$13.36

26

.SPRING (NT:45)

13268-47070

$4.34

27

HOSE, OVER FLOW | MODEL F/G This part replaces 13683-22A00.

13683-18A00

Unavailable

28

CLIP | MODEL F/G

13671-05A40

$3.71

29

SCREW

13601-04148

$2.81

30

PLATE

13259-18900

$7.53

31

PLUNGER ASSY, STARTER

13439-18911

$51.93

32

O RING

13278-02330

$2.82

33

SCREW

13247-24500

Unavailable

34

WASHER

13382-47010

$3.56

35

.CAP, STARTER VALVE

13682-31210

$4.37

36

HOLDER

13418-05320

Unavailable

37

O RING

13278-02330

$2.82

38

WASHER This part replaces 13449-05230.

13421-05320

$3.12

39

LEVER

13413-05230

Unavailable

40

RING

13432-05320

$4.25

41

WASHER

13589-47070

$1.98

42

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

43

RING This part replaces 13431-05230.

13424-05320

$5.21

44

SCREW This part replaces 13601-22A00.

02112-3416B

$2.19

45

SPRING

13417-47070

Unavailable

46

PLUNGER ASSY

13411-05320

$26.80

47

VALVE ASSY, CHECK | MODEL H/J This part replaces 13520-35B00.

13520-02C01

$50.10

48

CLIP | MODEL H/J

13671-05A40

$3.71

49

CAP,OVER FLOW | MODEL H/J This part replaces 13680-19B00.

13680-19B02

$13.57
