1986 Suzuki LT230GE Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1986 Suzuki LT230GE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

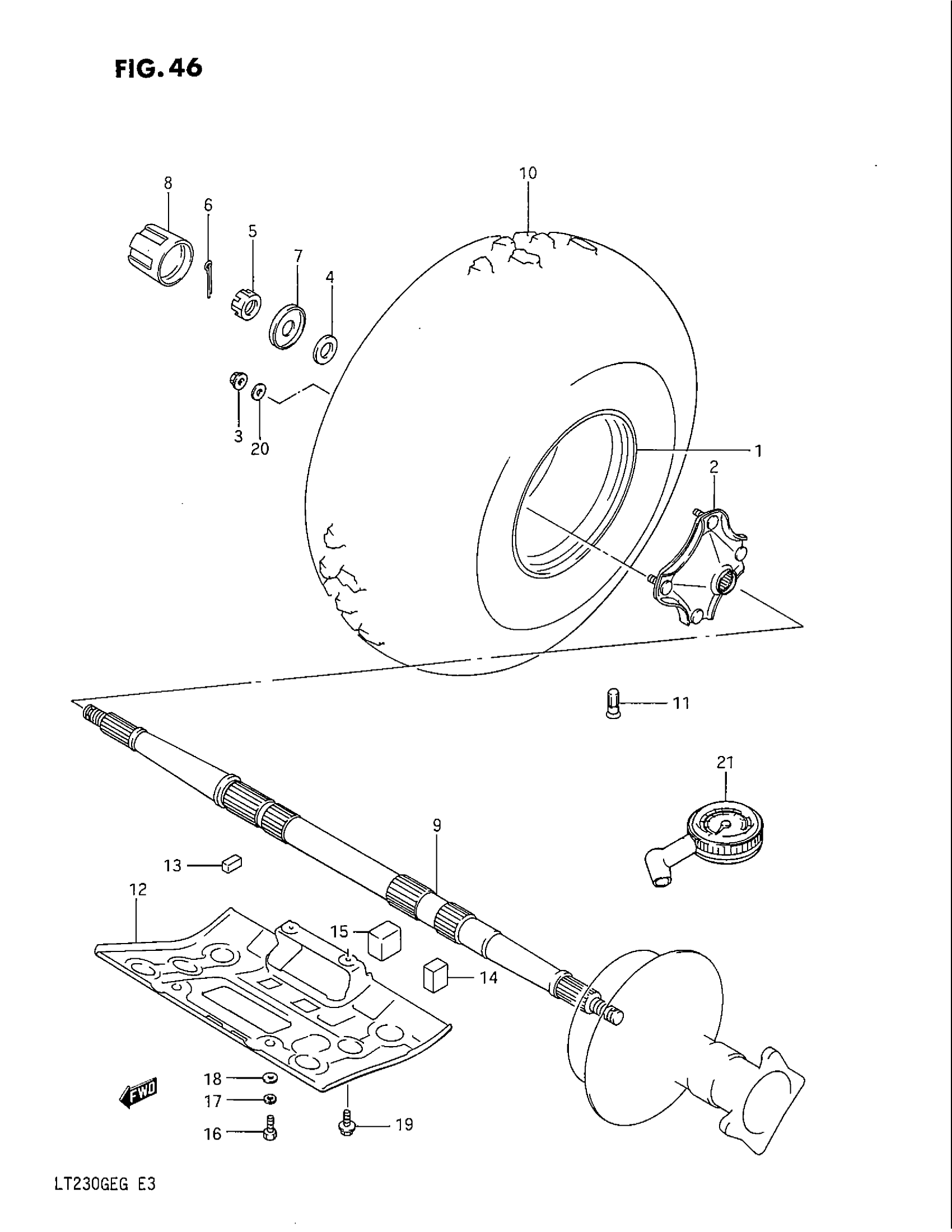

1986 Suzuki LT230GE Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 65310-18A00-19T.

65310-18A00-13L

1
Out of stock

2

HUB, REAR This part replaces 64110-24402.

64110-24403

1
Out of stock

3

NUT This part replaces 08316-16106.

08316-1010B

4
Out of stock

4

WASHER

09160-18015

1

$8.30

In stock

5

1

$8.27

In stock

6

1

$1.47

In stock

8

CAP

54725-18A00

1
Out of stock

9

AXLE, REAR

64711-18A00

1
Out of stock

10

TIRE, T/L REAR (22X11.00-8) | BS

65100-18A35

1
Out of stock

10

NO DESCRIPTION AVAILABLE | DUNLOP This part replaces 65100-18A55.

65100-18X00

1
Out of stock

12

NO DESCRIPTION AVAILABLE This part replaces 61390-18A00.

61390-18A02

1
Out of stock

13

CUSHION (10X7X20)

61395-18A00

2
Out of stock

14

CUSHION, LH (21X15X20)

61396-18A00

1
Out of stock

15

CUSHION, LH (12X16X20)

61397-18A00

1
Out of stock

16

2

$2.48

In stock

17

2

$1.99

In stock

18

2

$2.27

In stock

19

BOLT, CLAMP This part replaces 01517-06126.

01550-0612A

2
Out of stock

20

4

$1.97

In stock

21

GAUGE ASSY,AIR PRESSUR | MODEL G This part replaces 96200-18A00.

96200-18A02

1
Out of stock
