1986 Suzuki LT230GE Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1986 Suzuki LT230GE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

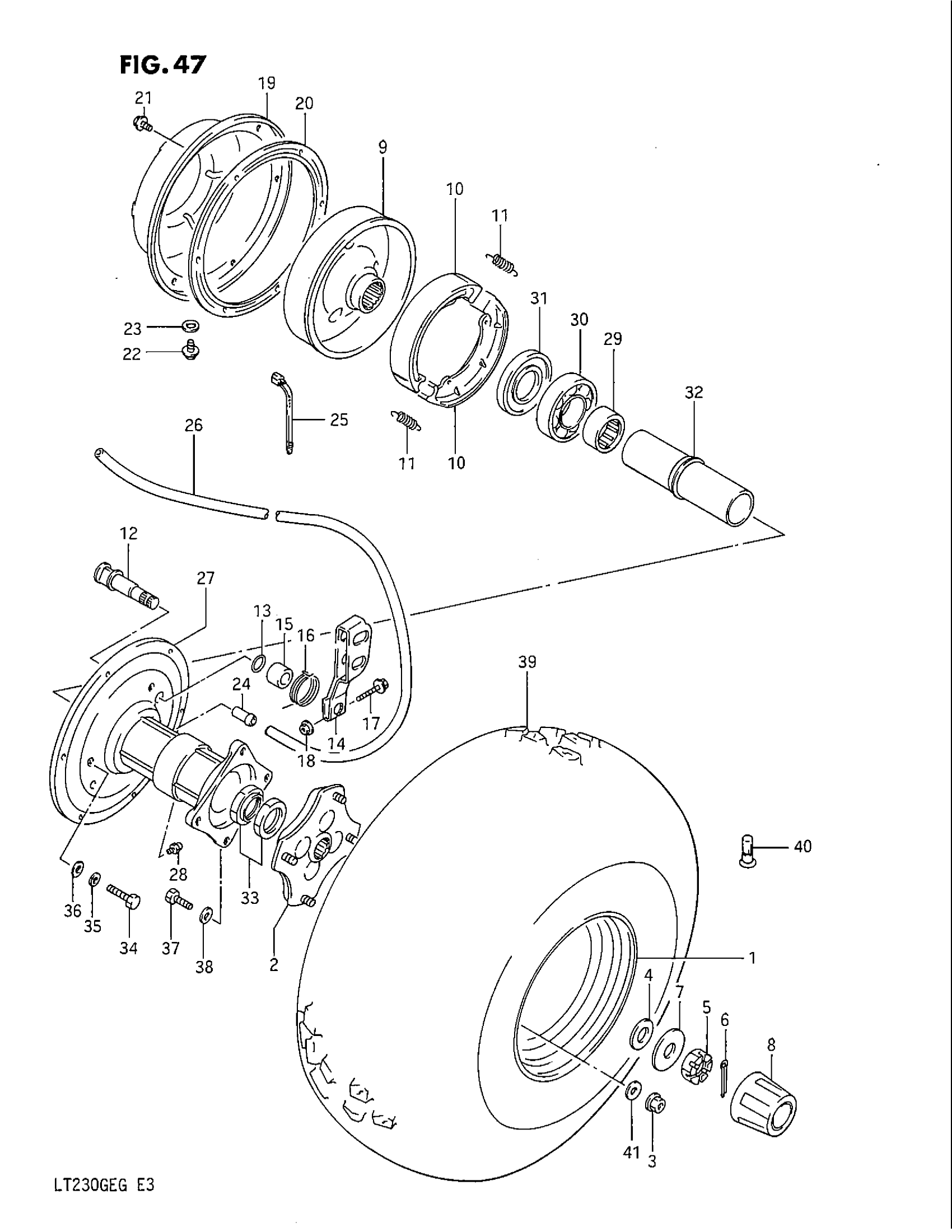

1986 Suzuki LT230GE Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 65310-18A00-19T.

65310-18A00-13L

1
Out of stock

2

HUB, REAR This part replaces 64110-24402.

64110-24403

1
Out of stock

3

NUT This part replaces 08316-16106.

08316-1010B

4
Out of stock

4

WASHER

09160-18015

1
Out of stock

5

1

$8.27

In stock

6

PIN, COTTER This part replaces 04111-40356.

04111-4040A

1
Out of stock

8

CAP

54725-18A00

1
Out of stock

9

DRUM, BRAKE

64120-24401

1
Out of stock

10

SHOE SET, REAR BRAKE This part replaces 54410-32400.

64400-02830

2
Out of stock

11

SPRING

55420-30000

2
Out of stock

12

CAM, BRAKE

64440-18A00

1
Out of stock

13

O RING

64443-18A00

1
Out of stock

14

LEVER, CAM

64451-18A00

1
Out of stock

15

SPACER

09180-16033

1
Out of stock

16

SPRING

09448-32016

1
Out of stock

17

BOLT This part replaces 01517-06306.

01550-0630A

1
Out of stock

18

NUT This part replaces 08316-16066.

08316-1006B

1
Out of stock

19

COVER, DRUM This part replaces 64130-18A00.

64130-18B00

1
Out of stock

20

PACKING

64125-18A00

1
Out of stock

21

BOLT This part replaces 01517-06106.

01550-0610A

6
Out of stock

22

PLUG, DRAIN

09247-10001

1
Out of stock

23

WASHER

09161-10007

1
Out of stock

24

PLUG, BREATHER

09364-08003

1
Out of stock

25

CLAMP

09407-14403

1
Out of stock

26

HOSE, 7X12, 1X2 This part replaces 09343-07160.

09352-70121-00B

1
Out of stock

27

HOUSING

64720-18A00

1
Out of stock

28

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

1
Out of stock

29

SPACER

64741-18A00

1
Out of stock

30

BEARING

08113-60097

1

$71.02

In stock

31

DUST SEAL

09283-42012

1
Out of stock

32

SPACER, BEARING

64730-18A00

1
Out of stock

33

NUT, AXLE

09159-32002

1
Out of stock

34

BOLT, HOUSING

09100-10229

3
Out of stock

35

3

$2.02

In stock

36

WASHER, KNUCKLE END This part replaces 08322-11106.

08322-0110A

3
Out of stock

37

BOLT This part replaces 01107-08258.

01500-08257

4
Out of stock

38

WASHER This part replaces 08322-11088.

08322-01087

4
Out of stock

39

TIRE, T/L REAR (22X11.00-8) | BS

65100-18A35

1
Out of stock

39

NO DESCRIPTION AVAILABLE | DUNLOP This part replaces 65100-18A55.

65100-18X00

1
Out of stock

40

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

1
Out of stock

41

WASHER, KNUCKLE END This part replaces 08322-11106.

08322-0110A

4
Out of stock
