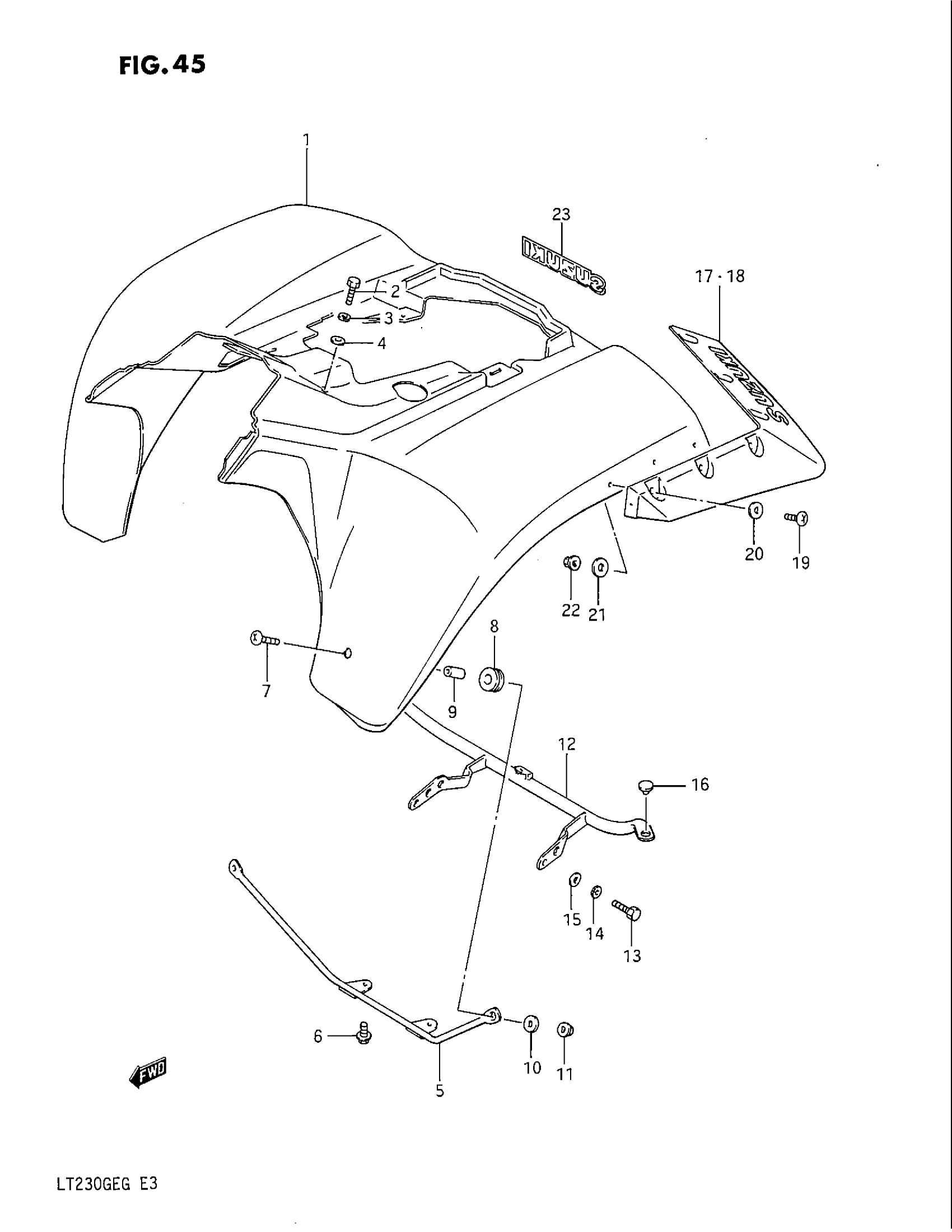

Suzuki LT230GE (1986) REAR FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 63111-18A00-00N.

63111-18X50-25G

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 63111-18A00-25G.

63111-18X50-25G

Unavailable

2

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

3

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

4

WASHER This part replaces 09160-06007.

09160-06084

$1.78

5

REINFORCEMENT, FRONT

63120-18A00

Unavailable

6

BOLT (8X12) This part replaces 01517-08126.

01550-0812A

$2.32

7

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

8

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

9

SPACER (6.5X9X10.5) This part replaces 09180-06090.

09180-06264

$2.23

10

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

11

NUT This part replaces 08316-26066.

08316-1006B

$2.50

12

REINFORCEMENT, REAR

63130-18A00

Unavailable

13

PLUG, DRAIN This part replaces 01107-08166.

01500-0816B

$2.50

14

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

15

WASHER This part replaces 08322-11086.

08322-0108A

$1.92

16

CAP (OD:20) This part replaces 09250-12006.

09250-12016

$1.92

17

MUD GUARD, RH

63331-18A00

Unavailable

18

MUD GUARD, LH

63341-18A00

Unavailable

19

SCREW This part replaces 02142-06165.

02142-0616A

$1.49

20

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

21

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

22

NUT This part replaces 08316-26066.

08316-1006B

$2.50

23

EMBLEM | MODEL G

68151-18900-7ZP

Unavailable
