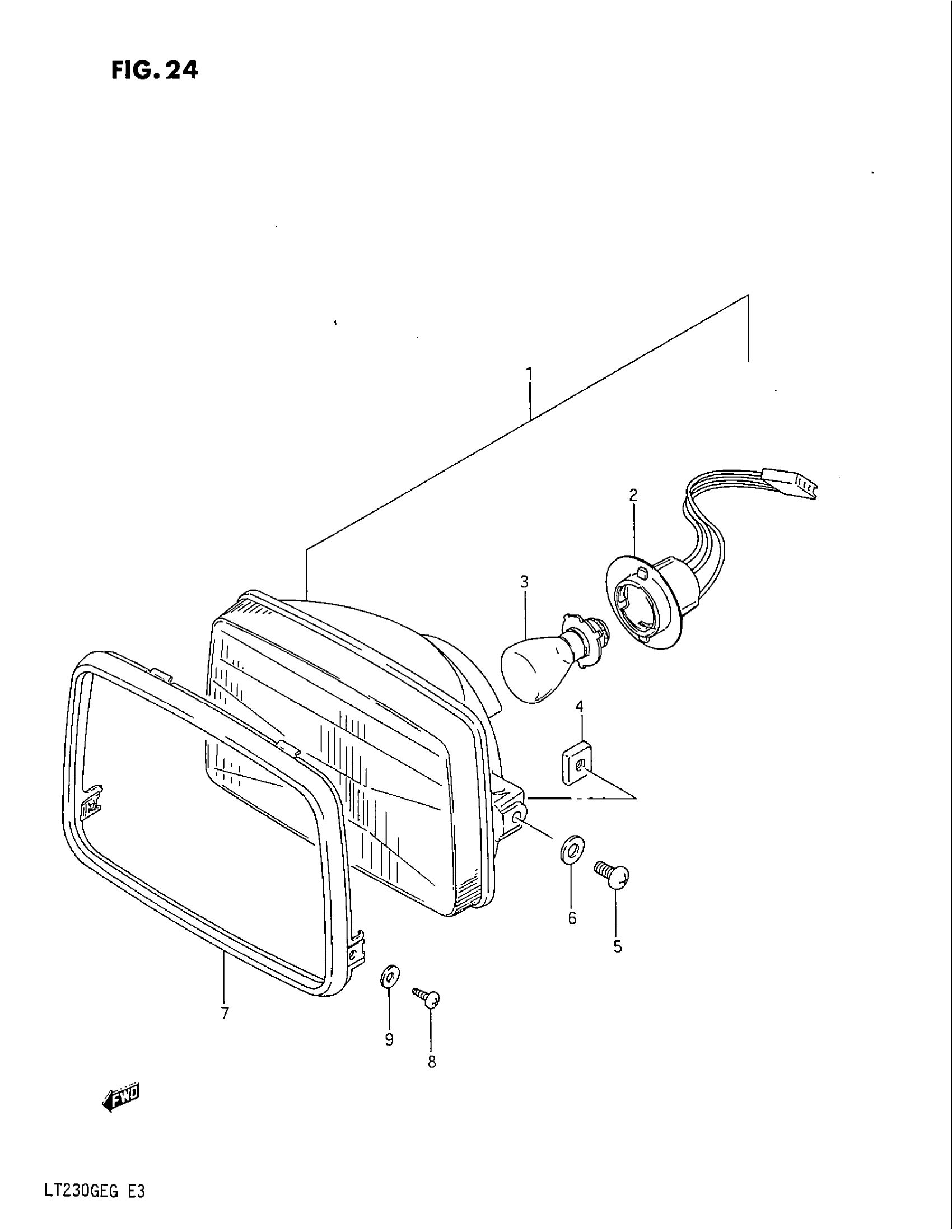

Suzuki LT230GE (1986) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 4 This part replaces 35100-18A01.

35100-18A11

Unavailable

2

SOCKET This part replaces 35171-18A00.

35171-18A01

Unavailable

3

BULB (12V,45/45W)

09471-12080

$6.58

4

NUT

35135-35400

$3.45

5

SCREW, THROTTLE This part replaces 02112-05105.

02112-0510A

$1.49

6

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

7

RIM

35111-18A00

Unavailable

8

SCREW This part replaces 02112-04105.

02112-3410A

$2.20

9

WASHER This part replaces 08322-21045.

08322-0104A

$1.91
