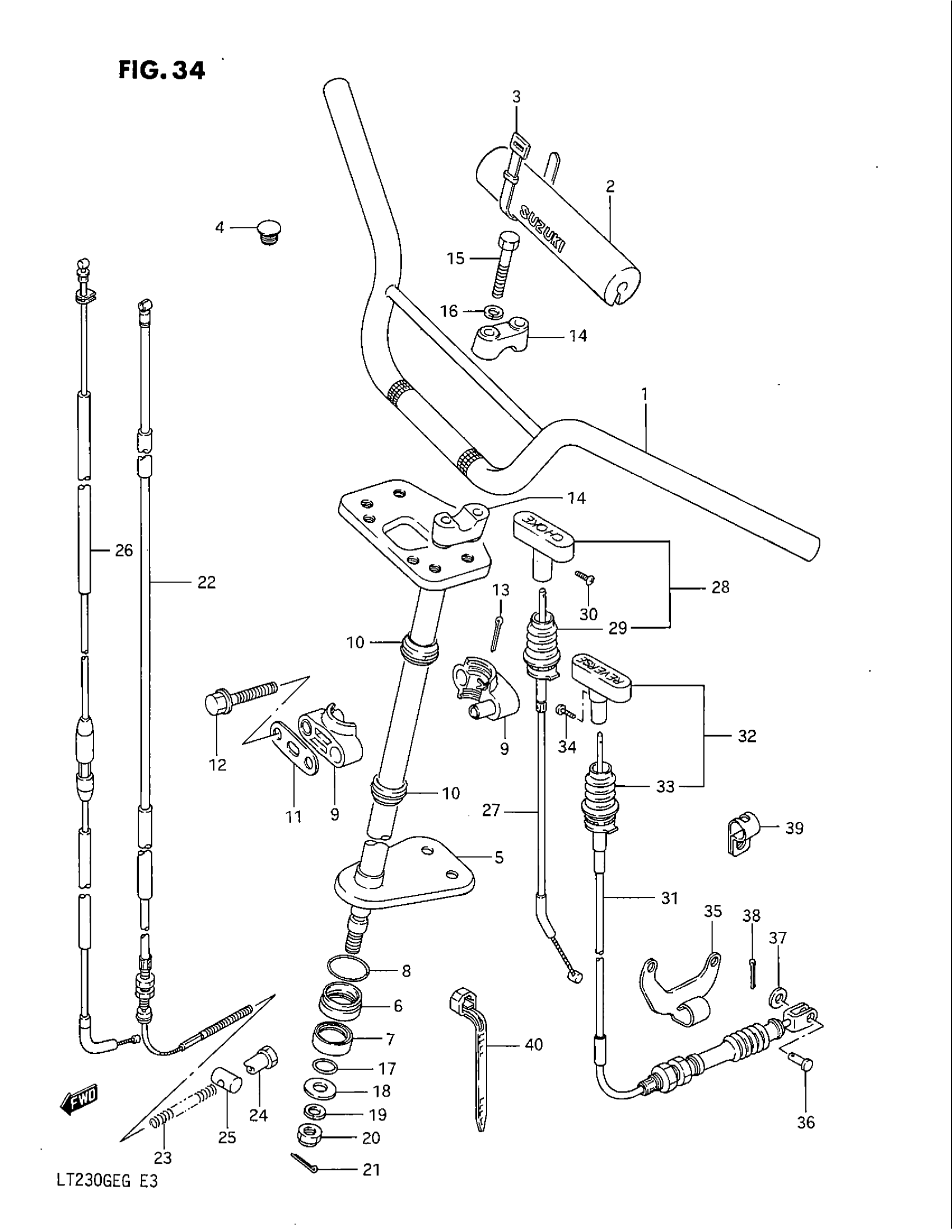

Suzuki LT230GE (1986) HANDLEBAR - STEERING Diagram

#

Description
Price

1

HANDLEBAR (BLACK)

56110-18A00-291

Unavailable

2

PAD, CROSS This part replaces 56172-03401.

56172-24500

$16.35

3

BAND

09407-18401

$2.07

4

CAP This part replaces 09250-09001.

09250-09008

$1.54

5

SHAFT, STEERING (BLACK)

51650-18A00-019

Unavailable

6

DUST SEAL, STEERING SHAFT

51662-18900

$7.36

7

DUST SEAL, STEERING LOWER

51663-24401

Unavailable

8

CLIP, DUST SEAL

09380-31002

$2.43

9

HOLDER,STEERING SHAFT This part replaces 51670-18901.

51670-18902

$18.02

10

DUST SEAL, STEERING

51678-18900

$8.12

11

REINFORCEMENT

51681-18A00

Unavailable

12

BOLT

09103-08085

$6.91

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

14

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

$17.90

15

BOLT | MODEL F

01204-08557

$2.85

15

BOLT | MODEL G This part replaces 01204-08555.

01204-08557

$2.85

16

.LOCK WASHER | MODEL F This part replaces 08321-21088.

08321-01087

$2.13

16

LOCK WASHER | MODEL G This part replaces 08321-21084.

08321-0108A

$1.84

17

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

18

WASHER This part replaces 09160-10068.

09160-10128-XC0

$2.62

19

LOCK WASHER This part replaces 08321-21105.

08321-0110A

$1.84

20

NUT This part replaces 09159-10036.

09159-10027

$3.10

21

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

22

CABLE, REAR BRAKE

58510-18A00

Unavailable

23

NO DESCRIPTION AVAILABLE This part replaces 09440-07034.

09440-07034-XC0

Unavailable

24

NUT This part replaces 09150-06008.

09150-06012

$3.37

25

PIN

09209-13006

$5.24

26

CABLE,THROTTLE This part replaces 58300-18A00.

58300-18A01

Unavailable

27

CABLE SET, STAR | MODEL F This part replaces 58410-18A00.

58400-18810

Unavailable

27

CABLE SET, STAR | MODEL G This part replaces 58410-18A01.

58400-18810

Unavailable

28

KNOB | Includes Item(s) 29

58480-18A00

Unavailable

29

BOOT

58484-18A00

Unavailable

30

SCREW

58487-24500

$5.95

31

CABLE SET, REVE | MODEL F This part replaces 58840-18A02.

58800-18810

Unavailable

31

CABLE SET,REVER | MODEL G This part replaces 58840-18A11.

58800-18820

Unavailable

32

KNOB | Includes Item(s) 33

58860-18A00

$13.36

33

BOOT

58842-18A00

$6.27

34

SCREW

58487-24500

$5.95

35

BRACKET

58871-18A00

Unavailable

36

PIN

09200-05001

$1.65

37

WASHER (6.5X14X2.3) This part replaces 09160-06017.

09160-06127

$2.30

38

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

39

CLAMP, REVERSE CABLE

09403-08403

Unavailable

40

CLAMP, CABLE

09407-14403

$2.26
