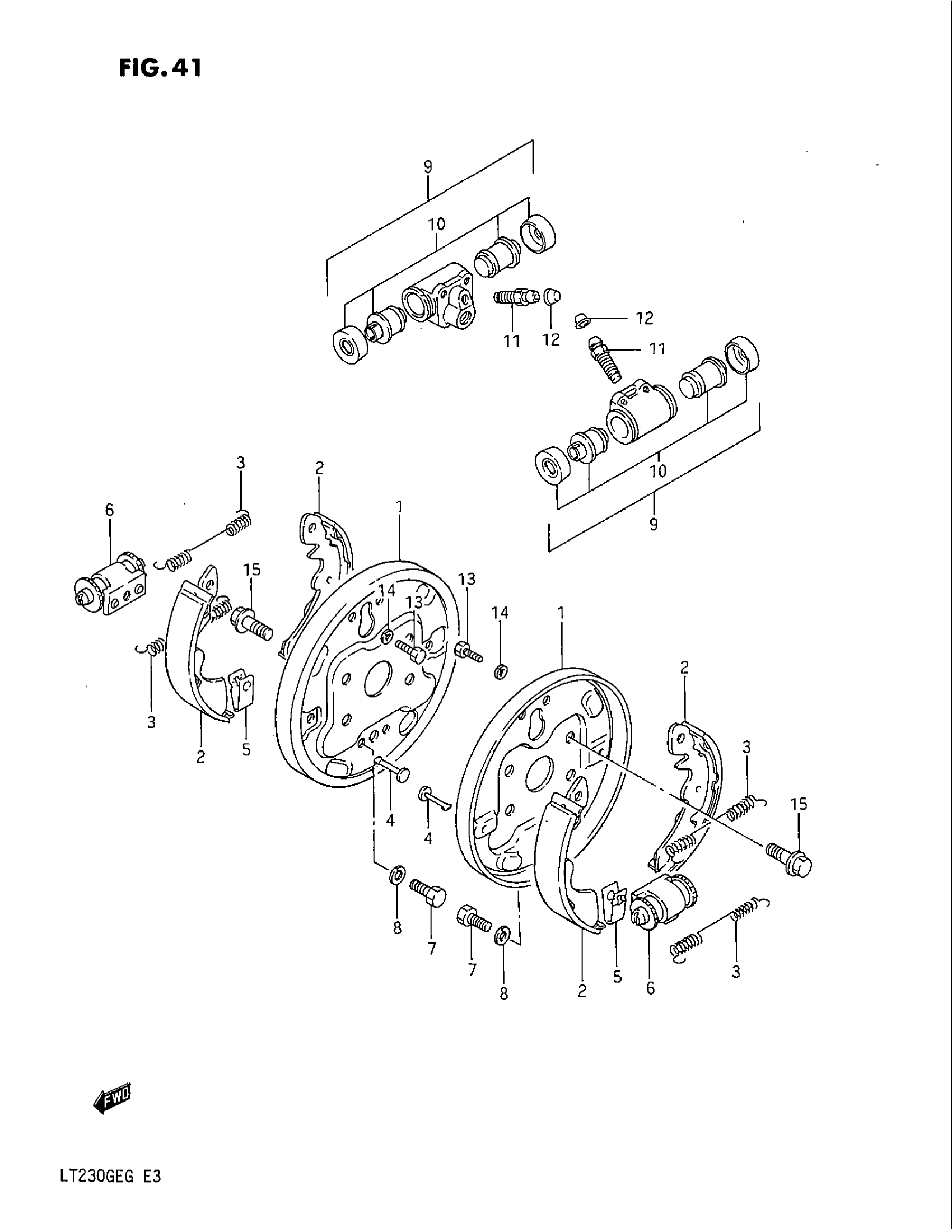

Suzuki LT230GE (1986) FRONT WHEEL BRAKE Diagram

#

Description
Price

1

PLATE, FRONT BRAKE

54511-18A00

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 52210-54321.

54400-41850

Unavailable

3

SPRING, SHOE

54531-24501

Unavailable

4

PIN, SHOE HOLD DOWN

52241-54320

Unavailable

5

SPRING, HOLD DOWN

52243-54320

Unavailable

6

ANCHOR ASSY BRA This part replaces 53610-54320.

53610-54321

Unavailable

7

BOLT This part replaces 01107-08128.

01500-08127

$2.62

8

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

9

CYLINDER ASSY F | Includes Item(s) 10 - 12 This part replaces 52400-54320.

52400-54321

Unavailable

10

CUP & BOOT SET

52400-54810

Unavailable

11

PLUG,BLEEDER This part replaces 52473-54320.

55151-78451

$8.93

12

CAP, BLEEDER This part replaces 52474-60020.

55156-66310

$5.17

13

BOLT This part replaces 01107-06108.

01500-06107

$2.06

14

LOCK WASHER This part replaces 08321-31068.

08321-01067

$2.13

15

BOLT (8X12) This part replaces 01517-08126.

01550-0812A

$2.32
