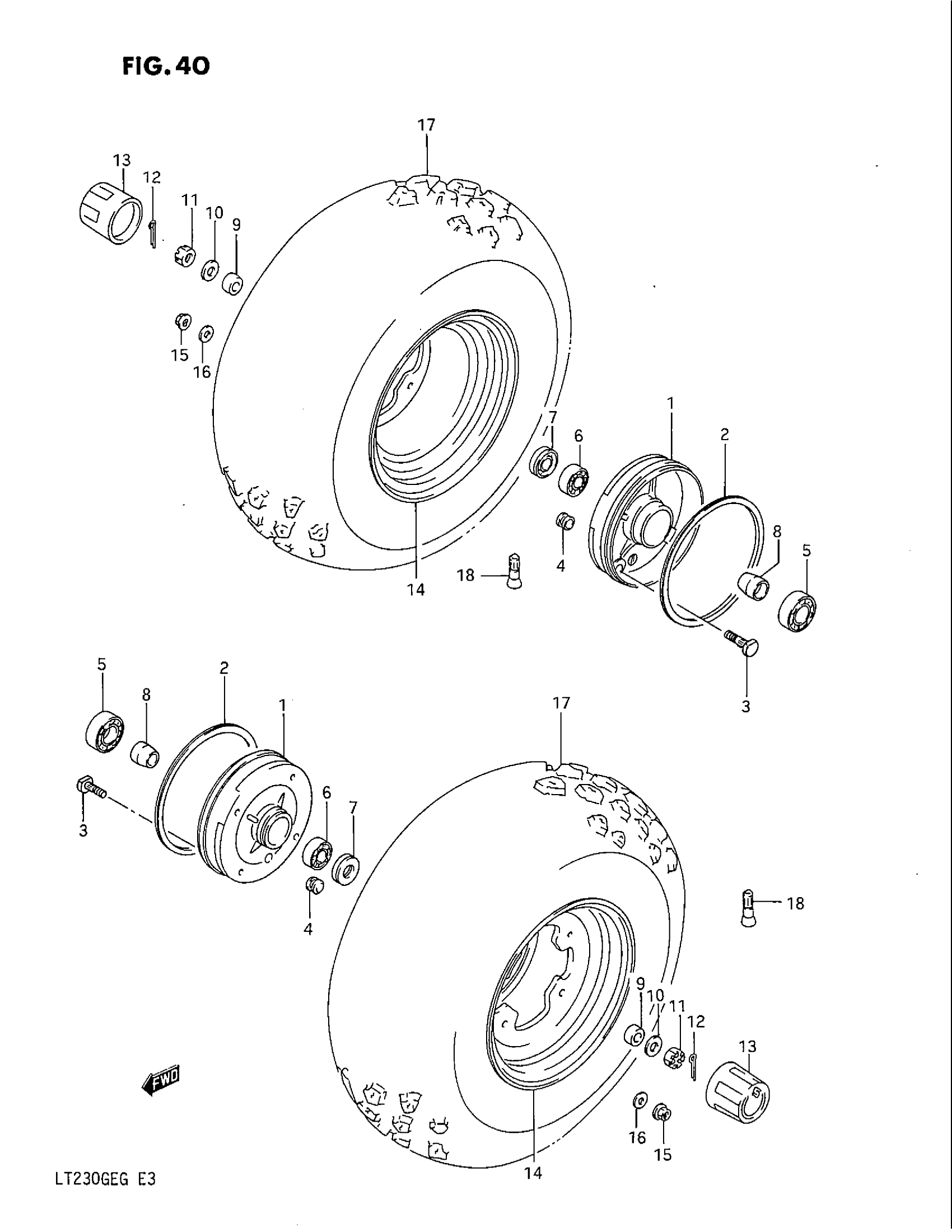

Suzuki LT230GE (1986) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT This part replaces 54110-18A01.

54110-24505

Unavailable

2

DUST SEAL, DRUM BRAKE

54124-18A00

Unavailable

3

BOLT, FRONT HUB This part replaces 09119-08060.

09119-08067

Unavailable

4

PLUG, BRAKE HOLE

09250-13002

$3.50

5

BEARING, INNER

08120-62047

$28.63

6

BEARING, FRONT HUB OUTER This part replaces 08120-62027.

09262-15024

$24.83

7

DUST SEAL, OUTER

09284-21001

$12.79

8

SPACER, FRONT HUB

54731-24501

Unavailable

9

SPACER, FRONT AXLE

09180-15068

$4.90

10

WASHER This part replaces 08322-11146.

08322-0114A

$1.84

11

NUT, HUB This part replaces 08314-41146.

08314-4014B

$4.24

12

PIN This part replaces 04111-30308.

04111-3030A

$1.49

13

CAP, WHEEL, CENTER

54725-18A00

$10.28

14

RIM, FRONT WHEEL (SILVER) This part replaces 55310-18A00-19T.

55310-41B00-13L

Unavailable

15

NUT (CHROME) This part replaces 08316-16086.

08316-10087

$2.26

16

WASHER This part replaces 08322-21086.

08322-0108A

$1.92

17

TIRE, T/L FRONT (21X8.00-9) | BS

55100-18A35

Unavailable

17

TIRE, T/L FRONT (21X8.00-9) | DUNLOP

55100-18A55

Unavailable

18

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25
